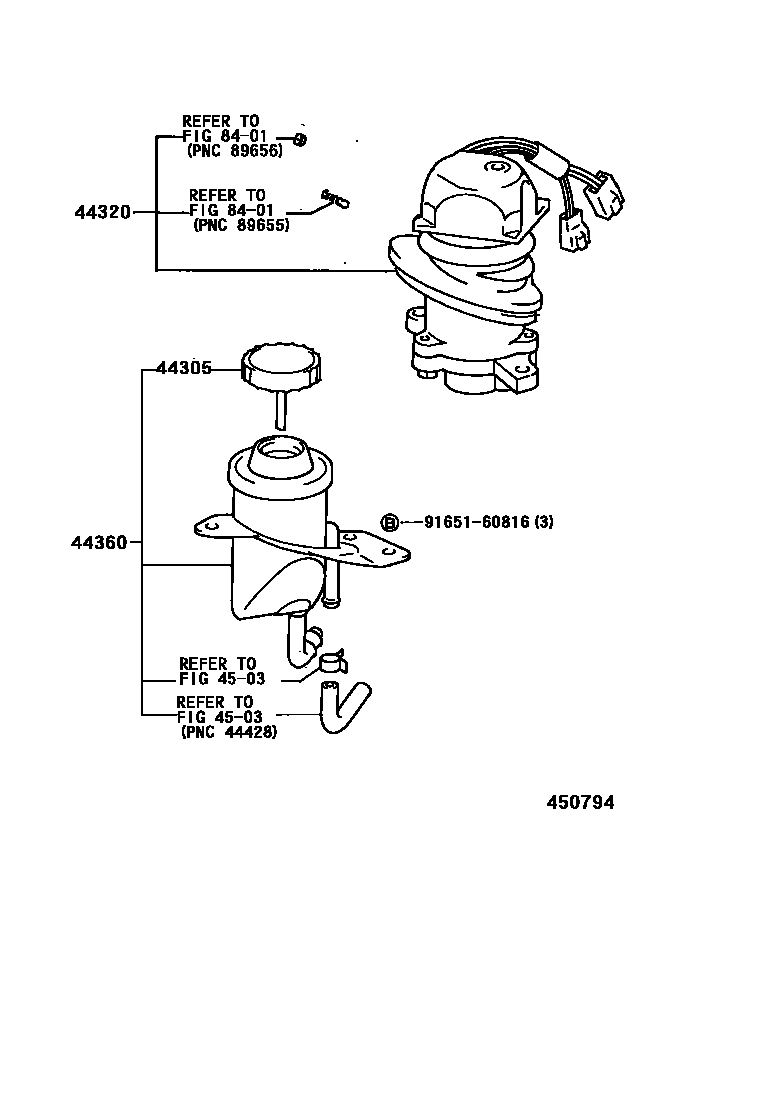

VANE PUMP & RESERVOIR (POWER STEERING)

44305CAP SUB-ASSY, VANE PUMP OIL RESERVOIR

main44305-17010iSW20..TWC199112

44320PUMP ASSY, VANE

main44310-17010iSW20..TWC199112-199311

sub44310-17011

main44310-17011iSW20199311

44360RESERVOIR ASSY, VANE PUMP OIL

main44360-17010iSW20..RHD..TWC199112

main44360-17020iSW20..LHD199112

4503

8401

9165160816

main91651-60816

6 parts on this diagram · 1 diagram in section
