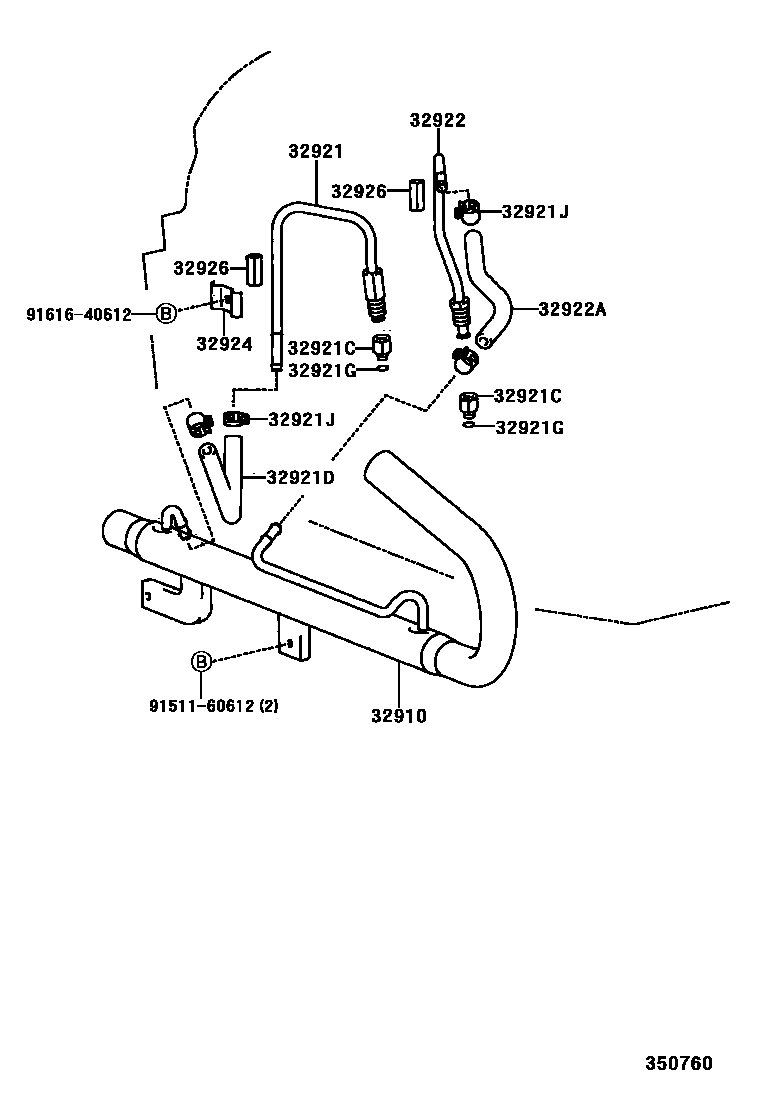

OIL COOLER & TUBE (ATM)

32910COOLER ASSY, OIL

main32910-17030iSW20..4FC¥39,400198912-199112

32921TUBE, OIL COOLER INLET, NO.1

main32921-17030iSW20..4FC¥980198912-199112

32921CUNION(FOR OIL COOLER TUBE)

main90404-14007iSW20..4FC¥500198912-199112

32921DHOSE(FOR OIL COOLER INLET)

main32941-17010iSW20..4FC¥1,550198912-199112

sub90445-15047¥760

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-10189iSW20..4FC¥170198912-199112

32921JCLIP(FOR OIL COOLER HOSE)

main90467-13039iSW20..4FC¥100198912-199112

sub96135-51300¥120

32922TUBE, OIL COOLER OUTLET, NO.1

main32922-17030iSW20..4FC¥660198912-199112

32922AHOSE(FOR OIL COOLER OUTLET)

main90445-15050iSW20..4FC¥540198912-199112

32924CLAMP, OIL COOLER TUBE, NO.2

main90462-12085iSW20..4FC¥220198912-199112

32926CUSHION, OIL COOLER TUBE(ATM)

main32926-30011iSW20..4FC¥200198912-199112

L=25,ID=8

9151160612

main91511-60612¥110

9161640612

main91616-40612¥120

12 parts on this diagram · 1 diagram in section
