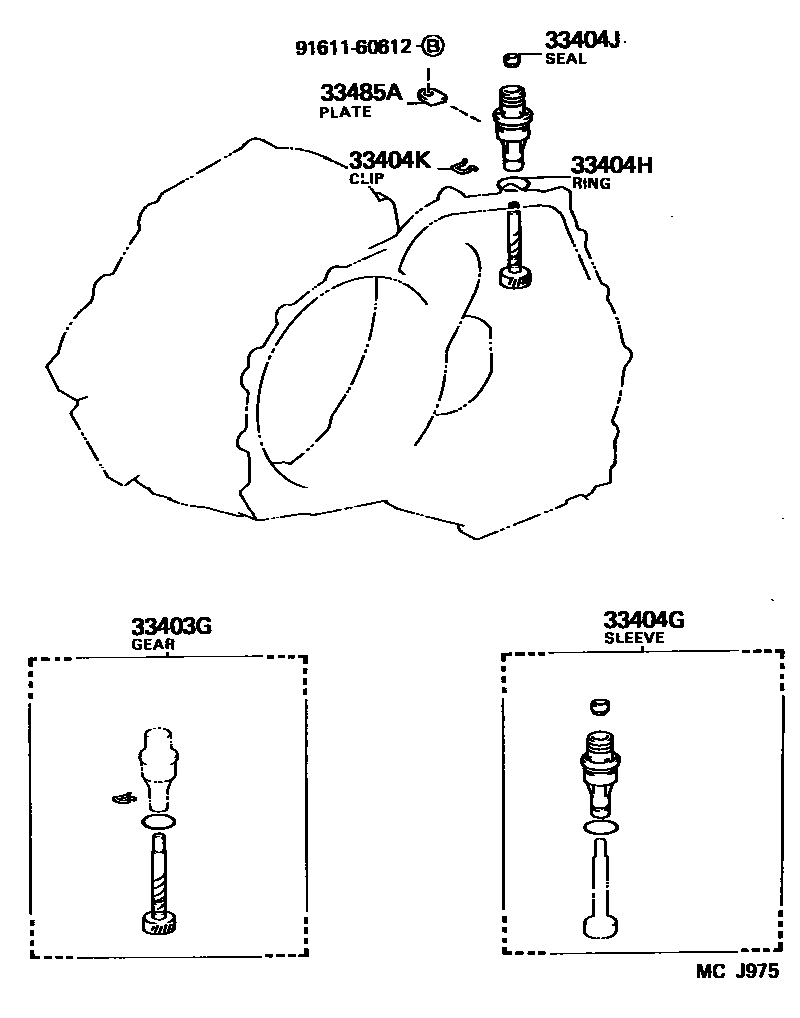

SPEEDOMETER DRIVEN GEAR (ATM)

33403GGEAR SUB-ASSY, SPEEDOMETER DRIVEN (ATM)

main33403-39085iSW20..4FC198912-199112

N=21,MARK 21:25

33404GSLEEVE SUB-ASSY, SPEEDOMETER SHAFT (ATM)

main33404-16010iSW20..4FC198912-199112

33404HRING, O (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main96711-24018iSW20..4FC198912-199112

33404JSEAL, OIL (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90310-09001iSW20..4FC198912-199112

33404KCLIP (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90468-12005iSW20..4FC198912-199112

33485APLATE, SPEEDOMETER SLEEVE LOCK (ATM)

main33485-14010iSW20..4FC198912-199112

9161160612

main91611-60612

7 parts on this diagram · 1 diagram in section
