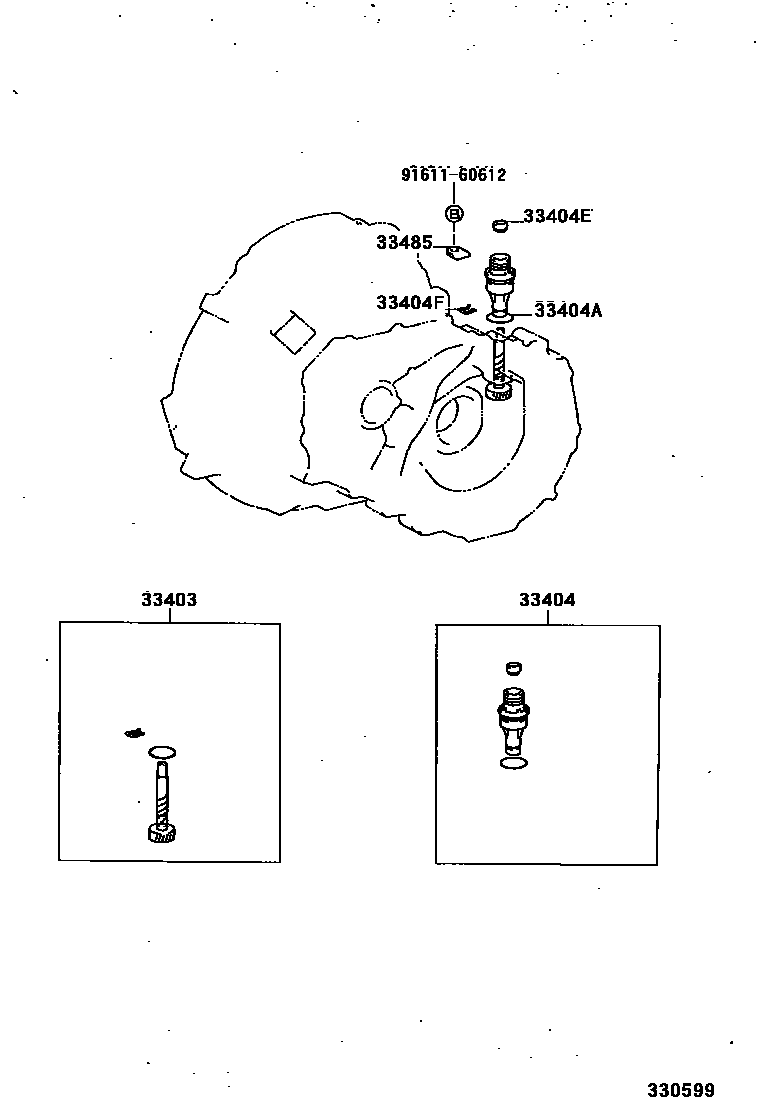

SPEEDOMETER DRIVEN GEAR (MTM)

0001 1S54 0002 1S54

33403GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM)

main33403-19495iSW20199112

N=21,MARK 21:25

main33403-39085iSW20..5F198912-199112

N=21,MARK 21:25

33404SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (MTM)

main33404-16010iSW20..5F198912-199112

33404ARING, O (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main96711-24018iSW20..5F198912-199112

33404ESEAL, OIL (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90310-09001iSW20..5F198912-199112

33404FCLIP (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90468-12005iSW20..5F198912

33485PLATE, SPEEDOMETER SLEEVE LOCK (MTM)

main33485-14010iSW20..5F198912-199112

9161160612

main91611-60612

7 parts on this diagram · 2 diagrams in section
