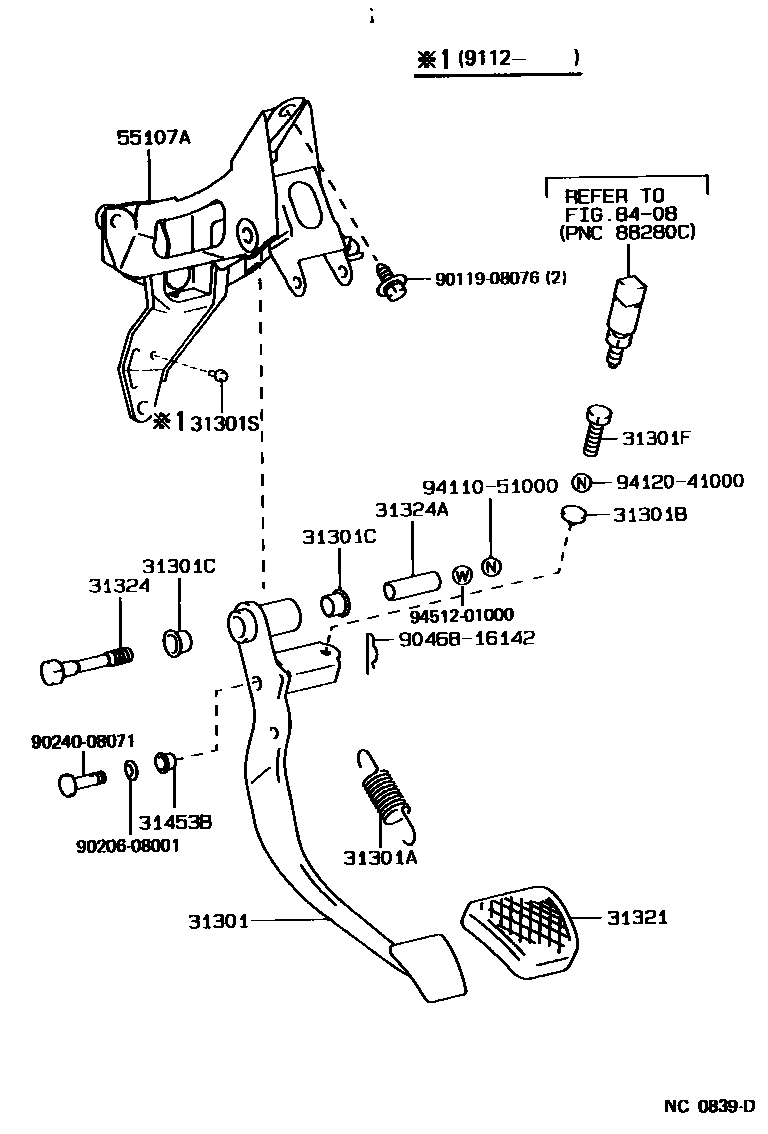

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0002 1 0003 1

31301PEDAL SUB-ASSY, CLUTCH

main31301-17050iSW20..RHD..5F198912-199112

sub31310-17040

main31301-17060iSW20..LHD198912-199112

sub31310-17050

main31301-17070iSW20..RHD199112-199311

sub31301-17071

main31301-17071iSW20..RHD199311

sub31310-17061

main31301-17080iSW20..LHD199112

sub31310-17070

31301ASPRING(FOR CLUTCH PEDAL)

main90507-14002iSW20..5F198912

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main90541-06032iSW20..5F198912-199311

sub90541-06036

main90541-06036iSW20199311

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13015iSW20..5F198912

31301FBOLT(FOR CLUTCH PEDAL STOPPER)

main90101-10369iSW20..5F198912

31301SCUSHION, NO.2(FOR CLUTCH PEDAL)

main90541-06032iSW20..LHD198912-199112

sub90541-06036

main90541-06047iSW20199112

31321PAD, CLUTCH PEDAL

main31321-12030iSW20..5F198912

31324SHAFT, CLUTCH PEDAL

main90101-10015iSW20..5F198912

31324ACOLLAR, CLUTCH PEDAL SHAFT

main90387-10003iSW20..5F198912

31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90386-08033iSW20..5F198912-199108

main90386-08054iSW20..5F199108

55107ASUPPORT SUB-ASSY, CLUTCH PEDAL

main55107-17040iSW20..RHD..5F198912-199112

main55107-17041iSW20..RHD199112

main55107-17050iSW20..LHD198912

8408

9011908076

main90119-08076

9020608001

main90206-08001

9024008071

main90240-08071

9046816142

main90468-16142

9411051000

main94110-51000

9412041000

main94120-41000

9451201000

main94512-01000

19 parts on this diagram · 3 diagrams in section
