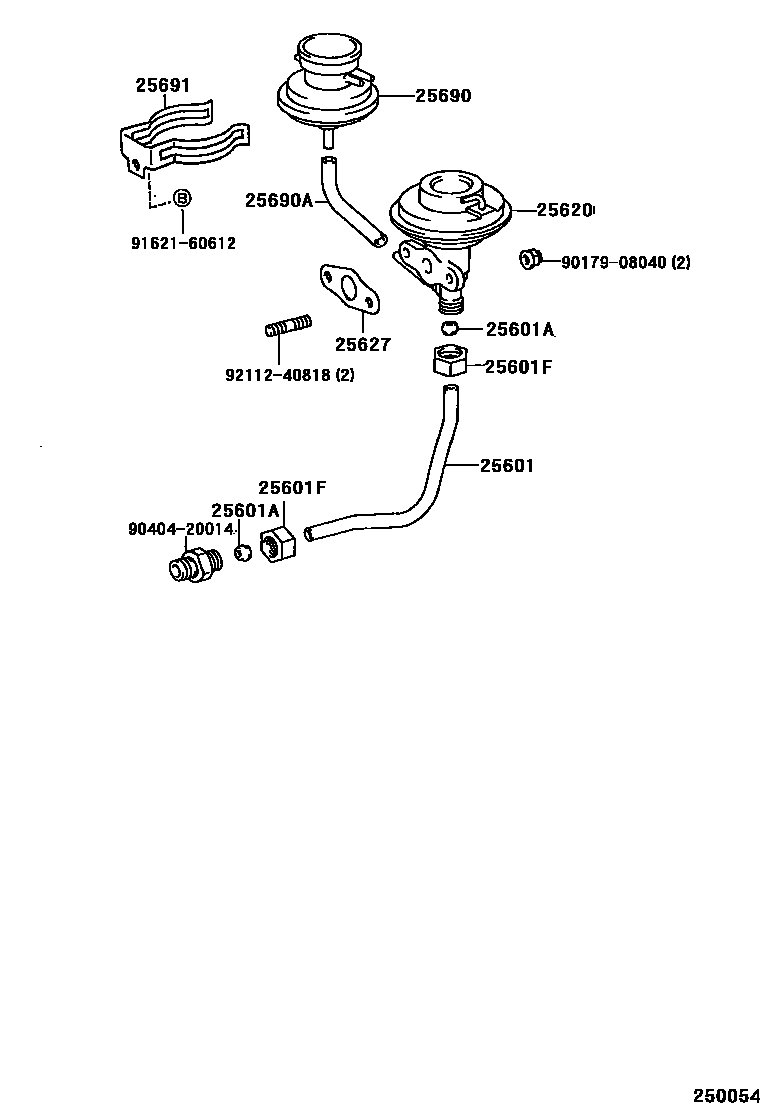

EXHAUST GAS RECIRCULATION SYSTEM

0001 1 0002 1

25601PIPE SUB-ASSY, EGR, NO.1

main25601-88460i3SGE..SW20199606

main25611-74030i3SFE..SW20198912-199208

25601ASLEEVE, BALL, EGR PIPE, NO.1

main90410-12042i3SFE..SW20198912-199208

25601FUNION(FOR EGR PIPE, NO.1)

main90402-20009i3SFE..SW20198912-199208

UNION SIDE

main90402-20073i3SFE..SW20198912-199208

EGR VALVE SIDE

25620VALVE ASSY, EGR

main25620-74110i3SFE..SW20..5F198912-199208

main25620-74120i3SFE..SW20..4FC198912-199112

main25620-74280i3SGE..SW20199606

25627GASKET, EGR VALVE

main25627-74011i3SFE..SW20198912-199208

25690MODULATOR ASSY, EGR VACUUM

main25870-74090i3SFE..SW20..5F198912-199208

main25870-74100i3SFE..SW20..4FC198912-199112

sub25870-74090

main25870-88460i3SGE..SW20199606

25690AHOSE(FOR EGR VACUUM MODULATOR)

main25695-88460i3SGE..SW20199606

main90445-11065i3SFE..SW20198912-199208

25691BRACKET, EGR VACUUM MODULATOR

main25691-74060i3SFE..SW20198912-199208

9017908040

main90179-08040

9040420014

main90404-20014

9162160612

main91621-60612

9211240818

main92112-40818

12 parts on this diagram · 2 diagrams in section
