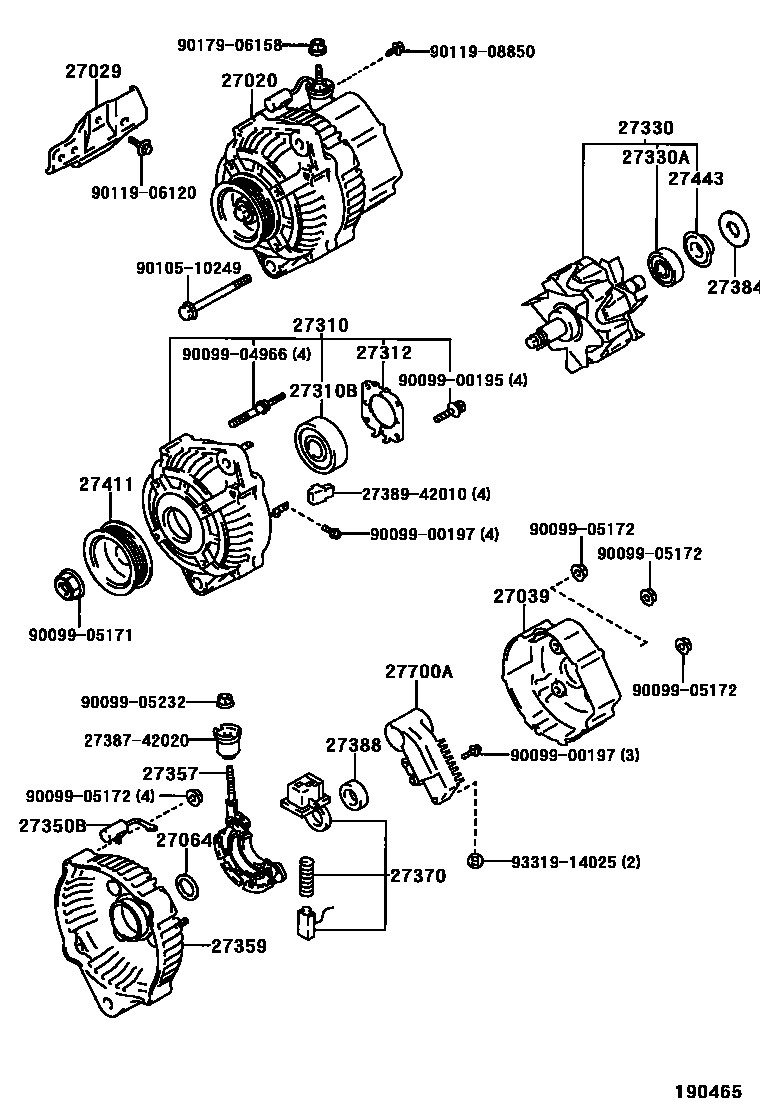

ALTERNATOR

0001 112V 80A 0002 112V 80A

27020ALTERNATOR ASSY

main27060-74250i3S#..SW20198912-199112

12V 80A

main27060-74320i3S#..SW20199112-199211

12V 80A

main27060-74430i3SGE..SW20199211

12V 80A

27029COVER, ALTERNATOR

main27029-74010i3SGE..SW20198912-199311

main27029-74020i3SGE..SW20199311

27039COVER, ALTERNATOR REAR END

main27039-42010i3S#..SW20198912-199012

sub27039-16310

main27039-74160i3S#..SW20199012-199112

sub27039-74220

main27039-74290i3S#..SW20199112-199211

sub27039-74291

main27039-74410i3SGE..SW20199211

27064SEAL, ALTERNATOR PLATE

main27064-42010i3S#..SW20198912

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-74160i3S#..SW20198912

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90099-10192i3S#..SW20198912

27312PLATE, RETAINER

main27312-42010i3S#..SW20198912

27330ROTOR ASSY, ALTERNATOR

main27330-76030i3S#..SW20198912

sub27330-16390

27330ABEARING(FOR ALTERNATOR ROTOR)

main90099-10140i3S#..SW20198912

27350BCONDENSER, ALTERNATOR

main90099-52108i3S#..SW20198912-199112

27357HOLDER, ALTERNATOR, W/RECTIFIER

main27357-62040i3S#..SW20198912-199105

sub27357-74160

main27357-74120i3S#..SW20199112-199211

sub27357-74290

main27357-74160i3S#..SW20199105-199112

main27357-74260i3SGE..SW20199211

27359FRAME, ALTERNATOR RECTIFIER END

main27359-16270i3S#..SW20198912-199112

main27359-74290i3S#..SW20199112

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-42010i3S#..SW20198912-199105

sub27370-75060

main27370-75060i3S#..SW20199105

27384WASHER

main27384-42010i3S#..SW20198912-199105

sub27384-50030

main27384-50030i3S#..SW20199105

27388COVER, ALTERNATOR BRUSH

main27388-42010i3S#..SW20198912

27411PULLEY, ALTERNATOR

main27411-42010i3S#..SW20198912

27443COVER, ALTERNATOR BEARING

main27443-63020i3S#..SW20198912

27700AREGULATOR ASSY, GENERATOR

main27700-46030i3S#..SW20199112-199211

sub27700-72090

main27700-70030i3S#..SW20198912-199109

main27700-74030i3SGE..SW20199211

main27700-76020i3S#..SW20199109-199112

sub27700-66020

2738742020INSULATOR, TERMINAL

main27387-42020

2738942010INSULATOR, TERMINAL

main27389-42010

9009900195

main90099-00195

9009900197

main90099-00197

9009904966

main90099-04966

9009905171

main90099-05171

9009905172

main90099-05172

9009905232

main90099-05232

9010510249

main90105-10249

9011906120

main90119-06120

9011908850

main90119-08850

9017906158

main90179-06158

9331914025

main93319-14025

31 parts on this diagram · 2 diagrams in section
