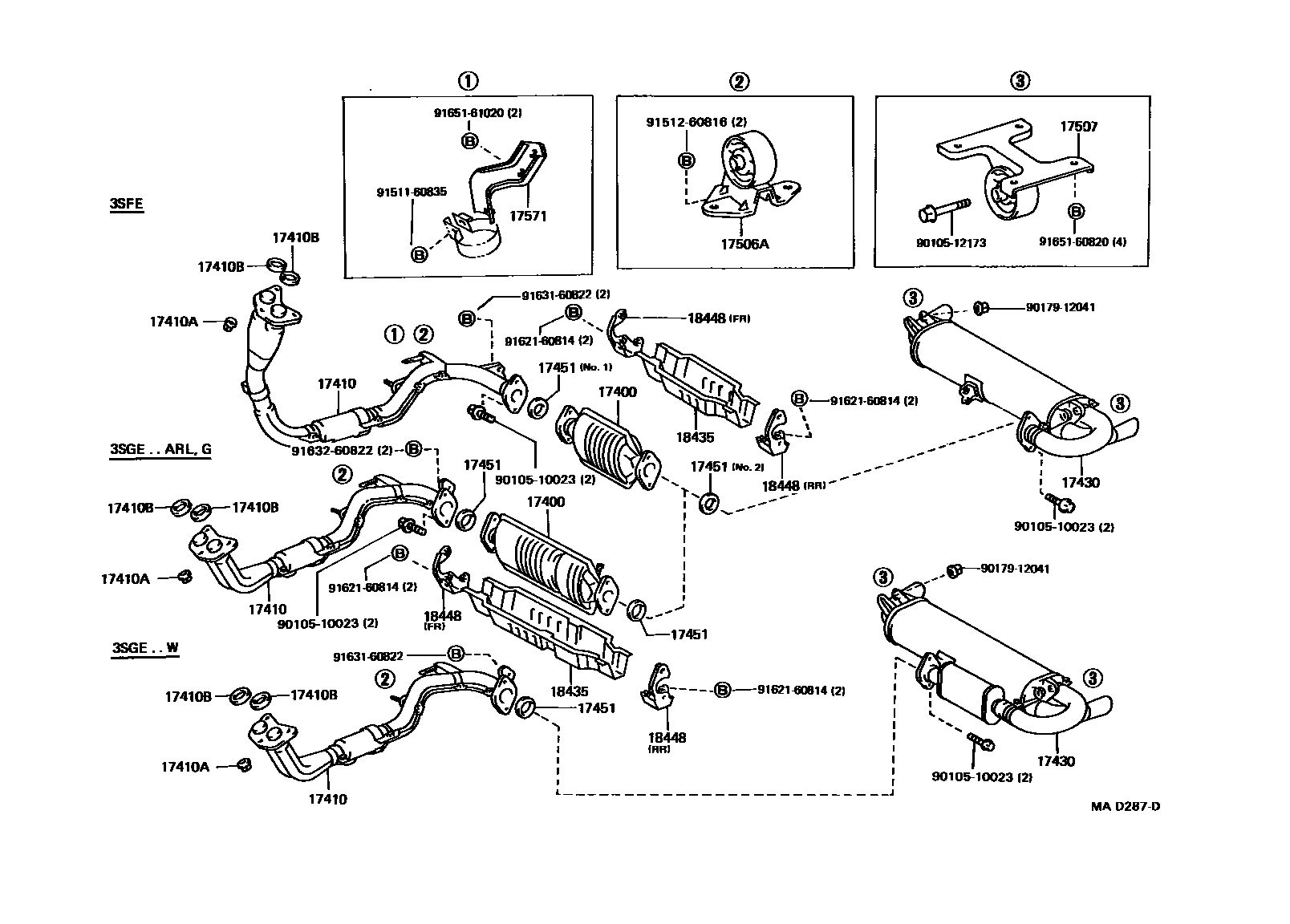

EXHAUST PIPE

0001 1 0002 1

17400CONVERTER ASSY, W/CATALYST

main18450-16380i3SFE..SW20198912-199208

main18450-74300i3SGE..SW20..ARL,G198912-199311

main18450-74500i3SGE..SW20199311-199606

main18450-74570i3SGE..SW20199606

17410PIPE ASSY, EXHAUST, FRONT

main17410-74690i3SGE..SW20..ARL,G198912-199311

main17410-74740i3SGE..SW20..W198912-199112

main17410-74750i3SFE..SW20198912-199112

sub17410-7A070

main17410-7A060i3SGE..SW20..G199112-199311

main17410-7A070i3SFE..SW20199112-199208

main17410-7A300i3SGE..SW20199311-199606

sub17410-7A730

main17410-7A550i3SGE..SW20..G199606

main17410-7A560i3SGE..SW20..ARL199606

17410ANUT, EXHAUST PIPE SET STUD BOLT

main90179-10070i3S#..SW20198912-199606

17410BGASKET, EXHAUST PIPE

main17451-74040i3SGE..SW20199606

main90917-06039i3SFE..SW20198912-199112

main90917-06055i3SGE..SW20198912-199311

main90917-06061i3SFE..SW20199112-199208

main90917-06075i3SGE..SW20199311-199606

17430PIPE ASSY, EXHAUST, TAIL

main17430-74830i3SFE..SW20;3SGE..SW20..ARL,G198912-199311

main17430-74850i3SGE..SW20..W198912-199112

main17430-7A440i3SGE..SW20199311

17451GASKET, EXHAUST PIPE

main90917-06043i3SFE..SW20198912-199208

NO.1

main90917-06054i3SGE..SW20199311

NO.1

main90917-06054i3SGE..SW20..ARL,G198912-199311

main90917-06054i3SFE..SW20198912-199208

NO.2

main90917-06057i3SGE..SW20199311

NO.2

17506ABRACKET SUB-ASSY, EXHAUST PIPE NO.1 SUPPORT

main17506-74060i3S#..SW20198912

17507BRACKET SUB-ASSY, EXHAUST PIPE NO.2 SUPPORT

main17507-74040i3S#..SW20198912-199112

sub17507-74080

main17507-74080i3S#..SW20199112

17571BRACKET, EXHAUST PIPE SUPPORT, NO.1

main17571-74240i3SFE..SW20198912-199208

18435PROTECTOR, CATALYTIC CONVERTER

main18435-74060i3SGE..SW20199112-199311

main18435-74070i3SGE..SW20..ARL,G198912-199112

main18435-74110i3SFE..SW20198912-199208

18448BRACKET, CONVERTER PROTECTOR, CENTER

main18438-16020i3SFE..SW20;3SGE..SW20..ARL,G198912-199311

FR

main18439-16020i3SFE..SW20;3SGE..SW20..ARL,G198912-199208

RR

main18439-74020i3SGE..SW20199112-199311

RR

9010510023

main90105-10023

9010512173

main90105-12173

9017912041

main90179-12041

9151160835

main91511-60835

9151260816

main91512-60816

9162160814

main91621-60814

9163160822

main91631-60822

9163260822

main91632-60822

9165160820

main91651-60820

9165161020

main91651-61020

21 parts on this diagram · 2 diagrams in section
