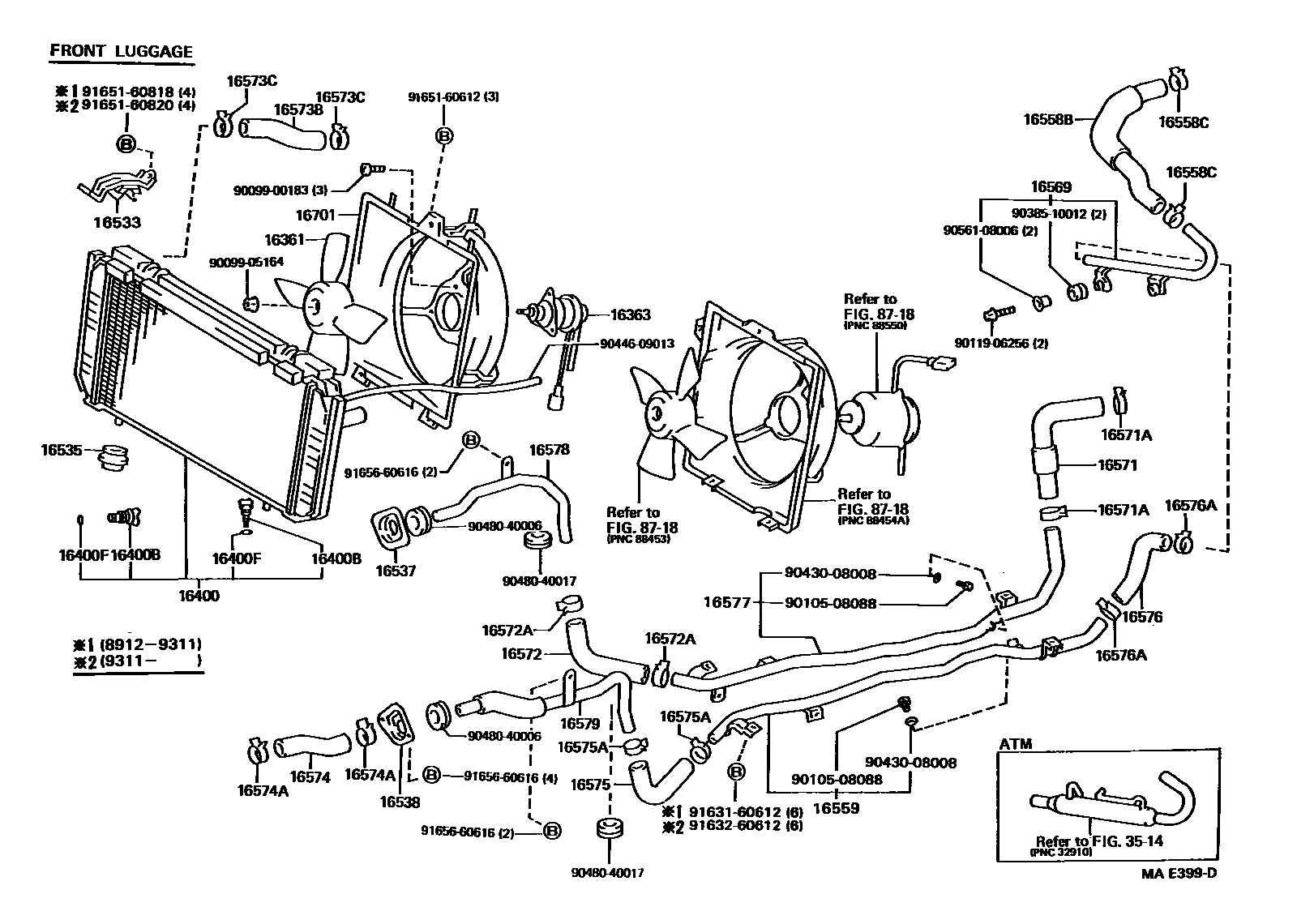

RADIATOR & WATER OUTLET
16361FAN
ENGINE ROOM
FRONT LUGGAGE
16363MOTOR, COOLING FAN
FRONT LUGGAGE
FRONT LUGGAGE
ENGINE ROOM
16400RADIATOR ASSY
16400BPLUG, RADIATOR DRAIN COCK
16400FPACKING(FOR RADIATOR DRAIN COCK)
16533SUPPORT, RADIATOR, UPPER
16535SUPPORT, RADIATOR, LOWER
16537SUPPORT, RADIATOR PIPE, NO.1
16538SUPPORT, RADIATOR PIPE, NO.2
16558BHOSE, RADIATOR, NO.7
16558CCLIP, RADIATOR HOSE, NO.7
16559PIPE, RADIATOR, NO.4
16569PIPE, RADIATOR, NO.5
16571HOSE, RADIATOR, INLET
16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
16572HOSE, RADIATOR, OUTLET
16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
16573BHOSE, RADIATOR, NO.3
16573CCLAMP OR CLIP, RADIATOR HOSE, NO.3
16574HOSE, RADIATOR, NO.4
16574ACLIP, RADIATOR HOSE, NO.4
16575HOSE, RADIATOR, NO.5
16575ACLIP, RADIATOR HOSE, NO.5
16576HOSE, RADIATOR, NO.6
16576ACLIP, RADIATOR HOSE, NO.6
16577PIPE, RADIATOR, NO.7
16578PIPE, RADIATOR, NO.2
16579PIPE, RADIATOR, NO.3
16701SHROUD SUB-ASSY, FAN
FRONT LUGGAGE
FRONT LUGGAGE
ENGINE ROOM
3514
8718
9009900183
main90099-00183
9009905164
9010508088
9011906256
9038510012
9043008008
9044609013
9048040006
9048040017
9056108006
9163160612
9163260612
9165160612
9165160818
9165160820
9165660616
47 parts on this diagram · 4 diagrams in section
