VENTILATION HOSE

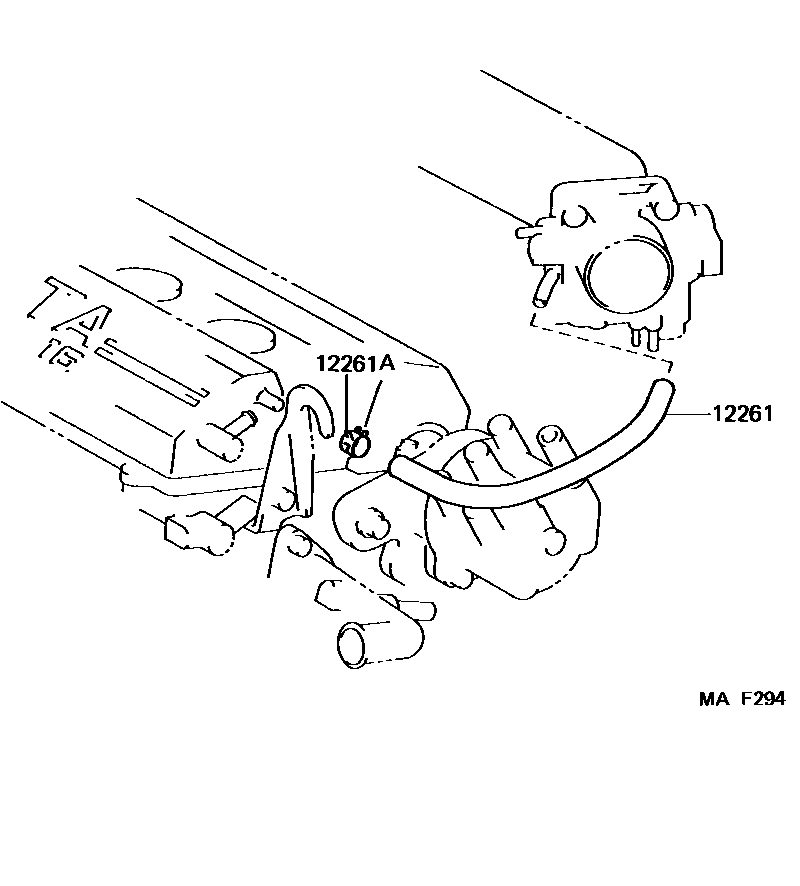

Parts diagram
12261HOSE, VENTILATION
main12261-74020i198912-199208
main12261-88362i198912-199311
main12261-88460i199311-199608
sub12261-88461
main12261-88461i199608
12261ACLIP OR CLAMP(FOR VENTILATION HOSE)
main90467-14037i199311
main90467-15016i199112-199208
sub96135-51400

2 parts on this diagram · 3 diagrams in section
