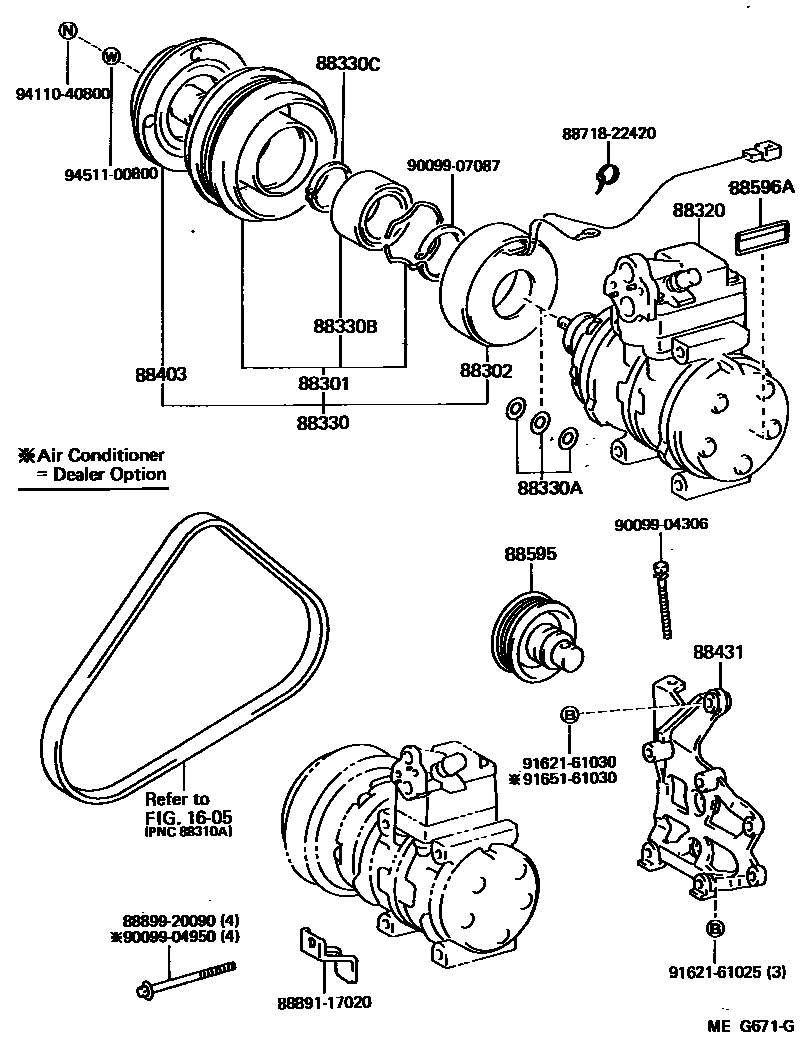

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1

1605

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-22050iAW11..LHD..GEN198411-198912

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-17010iAW11..ARL,GEN198411-198912

88320COMPRESSOR ASSY, COOLER

main88320-17010iAW11..GEN198411-198608

COOLER=MAKER OPTION

main88320-17030iAW11..RHD..GEN198411-198608

COOLER=DEALER OPTION

main88320-17040iAW11..GEN198803-198808

W(AUTOMATIC AIR CONDITIONER(MOP))

main88320-17040iAW11..GEN198608-198803

COOLER=MAKER OPTION

main88320-17041iAW11..GEN198808-198912

main88320-17050iAW11..ARL198803-198912

W(AUTOMATIC AIR CONDITIONER(DOP))

main88320-17050iAW11..RHD..(ARL,GEN)198608-198803

COOLER=DEALER OPTION

88330CLUTCH ASSY, MAGNET

main88410-17010iAW11..ARL198411-198912

88330AWASHER (FOR MAGNET CLUTCH)

main88335-12050iAW11..GEN198608-198912

88330BBEARING, MAGNET CLUTCH

main90099-10133iAW11..ARL,GEN198411-198912

88330CRING, SNAP (FOR MAGNET CLUTCH)

main90099-07114iAW11..ARL,GEN198411-198912

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-12030iAW11..LHD..GEN198803-198912

main88403-14030iAW11..ARL,GEN198411-198803

sub88403-12030

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main88431-17010iAW11..LHD..GEN198411-198912

88595PULLEY, COOLER COMPRESSOR IDLE

main88440-17010iAW11..RHD..GEN198411-198912

88596APLATE, CAUTION

main88356-12010iAW11..GEN198411-198912

8871822420PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-22420

8889117020PACKING (FOR COOLER)

main88891-17020

8889920090COVER, EVAPORATOR

main88899-20090

9009904306

main90099-04306

9009904950

main90099-04950

9009907087

main90099-07087

9162161025

main91621-61025

9162161030

main91621-61030

9165161030

main91651-61030

9411040800

main94110-40800

9451100800

main94511-00800

23 parts on this diagram · 2 diagrams in section
