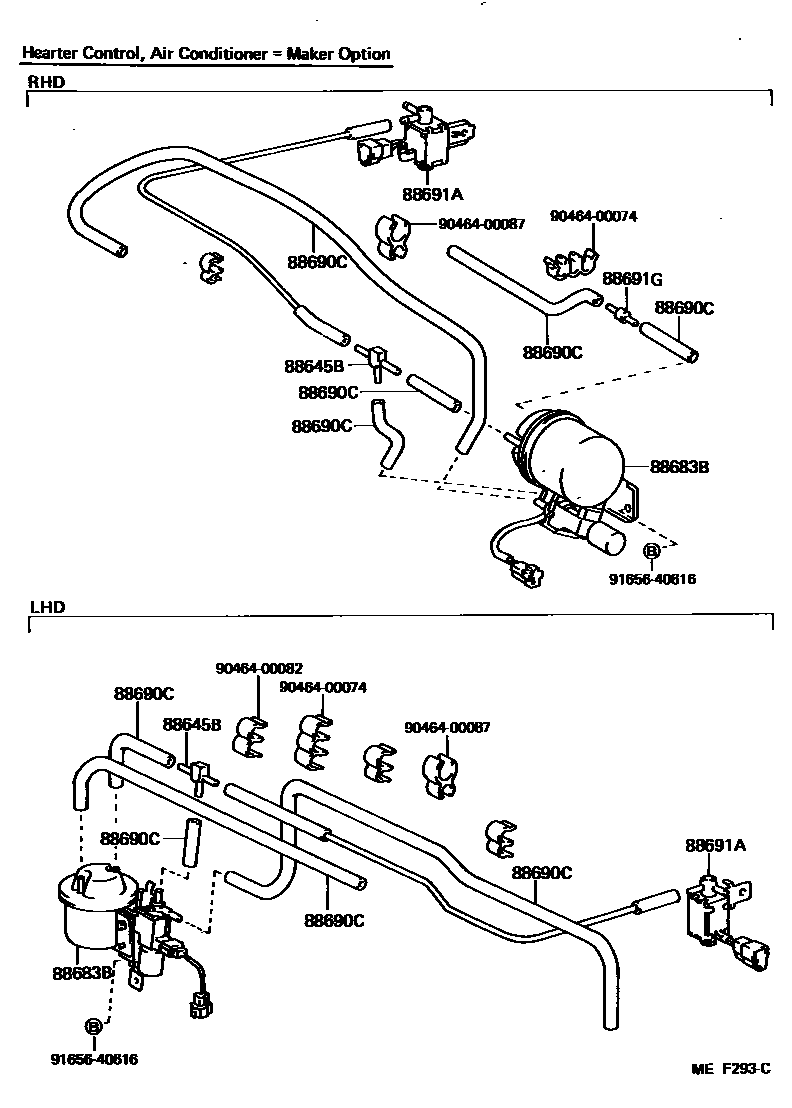

HEATING & AIR CONDITIONING - VACUUM PIPING

0001 1 0002 1 0003 1 0004 1

88645BJOINT, NO.1 (FOR IDLE UP DIVICE)

main90413-04005iAW11..GEN198411-198608

88683BTANK, VACUUM

main88683-17030iAW11..RHD..GEN198411-198608

main88683-17040iAW11..LHD..GEN198411-198505

sub88683-17041

main88683-17041iAW11..LHD..GEN198505-198608

88690CHOSE, VACUUM, NO.1 (FOR HEATER OR AIR CONDITIONER)

main95411-10130iAW11..GEN198608-198803

*H,L=120,MARK=#1

sub90999-92002

main95411-10130iAW11..RHD..GEN198608-198803

*H,L=50,MARK=#1

sub90999-92002

main95411-10130iAW11..RHD..GEN198411-198912

*H,L=300,MARK=#1

sub90999-92002

main95411-10130iAW11..RHD..GEN198411-198608

*H,L=40,MARK=#1

sub90999-92002

main95411-10160iAW11..LHD..GEN198803-198912

*H,L=600,MARK=#1

sub90999-92003

main95411-10160iAW11..GEN198608-198803

*H,L=390,MARK=#1

sub90999-92003

main95411-10230iAW11..LHD..GEN198505-198608

MARK=#2,*H,L=90

sub90999-92002

main95411-10230iAW11..LHD..GEN198411-198505

*H,L=80,MARK=#2

sub90999-92002

main95411-10230iAW11..GEN198411-198608

*H,L=40,MARK=#2

sub90999-92002

main95411-10230iAW11..GEN198411-198608

*H,L=60,MARK=#2

sub90999-92002

main95411-10360iAW11..RHD..GEN198411-198608

MARK=#3,*H,L=450

sub90999-92003

main95411-10360iAW11..LHD..GEN198608-198803

*H,L=510,MARK=#3

sub90999-92003

main95411-10360iAW11..LHD..GEN198505-198803

*H,L=420,MARK=#3

sub90999-92003

main95411-10360iAW11..RHD..GEN198803-198912

sub90999-92003

main95411-10430iAW11..RHD..GEN198411-198608

*H,L=70,MARK=#4

sub90999-92002

88691VALVE, MAGNET (FOR IDLE UP DEVICE)

main88690-17040iAW11..RHD..GEN198411-198608

COOLER=DEALER OPTION

main88690-17070iAW11..GEN198803-198912

ASSY

main88690-17070iAW11..RHD..(ARL,GEN)198608-198803

COOLER=DEALER OPTION,ASSY

main88690-17070iAW11..GEN198803-198912

NO.1,ASSY

main88690-17070iAW11..GEN198803-198912

W(MANUAL AIR CONDITIONER(DOP)),ASSY

main88691-17010iAW11..GEN198411-198803

COOLER=MAKER OPTION

main88691-17010iAW11..RHD..(ARL,GEN)198608-198803

COOLER=DEALER OPTION,COMPONENT

main88691-17010iAW11..GEN198803-198912

NO.1,COMPONENT

main88691-17010iAW11..GEN198803-198912

COMPONENT

main88691-17010iAW11..GEN198803-198912

W(MANUAL AIR CONDITIONER(DOP)),COMPONENT

88691AVALVE, MAGNET (FOR BLOWER CHANGING-OVER DEVICE)

main88690-17010iAW11..RHD..GEN198411-198608

W/COOLER

main88690-17020iAW11..LHD..GEN198411-198608

W/COOLER

88691GVALVE, CHECK(FOR IDLE-UP DIVICE)

main88684-22010iAW11..RHD..GEN198411-198912

9046400074

main90464-00074

9046400082

main90464-00082

9046400087

main90464-00087

9165640616

main91656-40616

10 parts on this diagram · 4 diagrams in section
