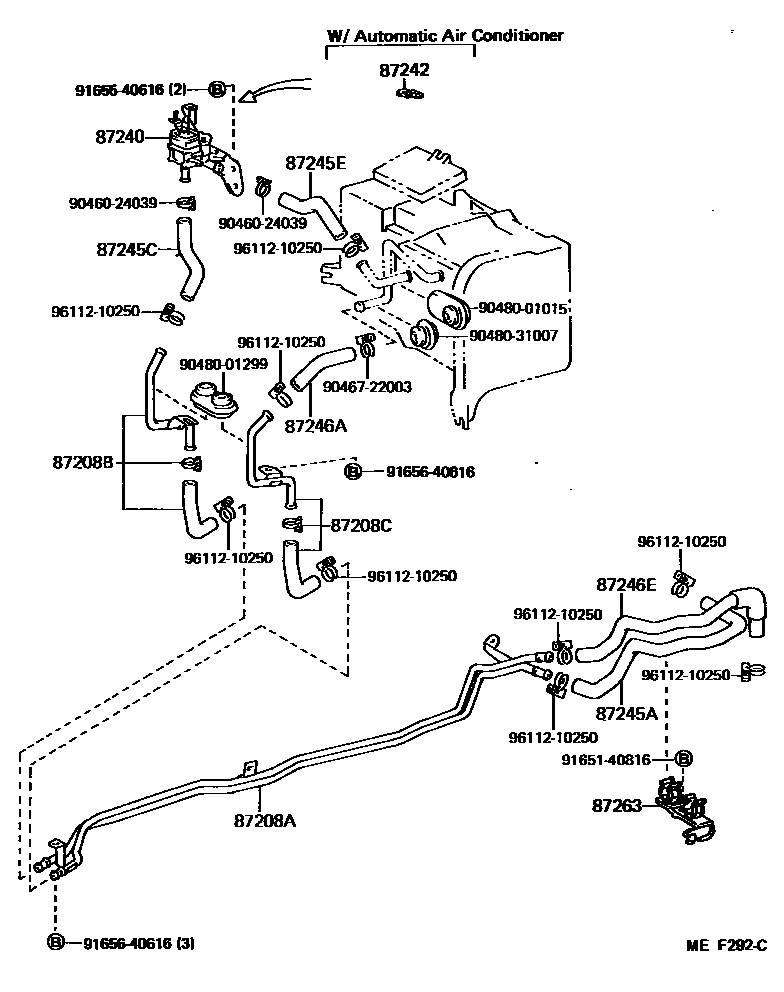

HEATING & AIR CONDITIONING - WATER PIPING
87208BPIPE SUB-ASSY, HEATER WATER, B
87208CPIPE SUB-ASSY, HEATER WATER, C
87240VALVE ASSY, HEATER WATER
sub87240-17011
W/*AAC
W(AUTOMATIC AIR CONDITIONER(MOP))
W/*AAC
W/*AAC
W(AUTOMATIC AIR CONDITIONER(MOP))
87242LEVER, WATER VALVE
87245CHOSE, HEATER WATER ,INLET C
87245EHOSE, HEATER WATER, INLET E
87263BRACKET, HEATER WATER PIPE, NO.1
9046024039
main90460-24039
9046722003
main90467-22003
9048001015
main90480-01015
9048001299
main90480-01299
9048031007
main90480-31007
9165140816
main91651-40816
9165540616
main91655-40616
9165640616
main91656-40616
9611210250
main96112-10250
20 parts on this diagram · 1 diagram in section
