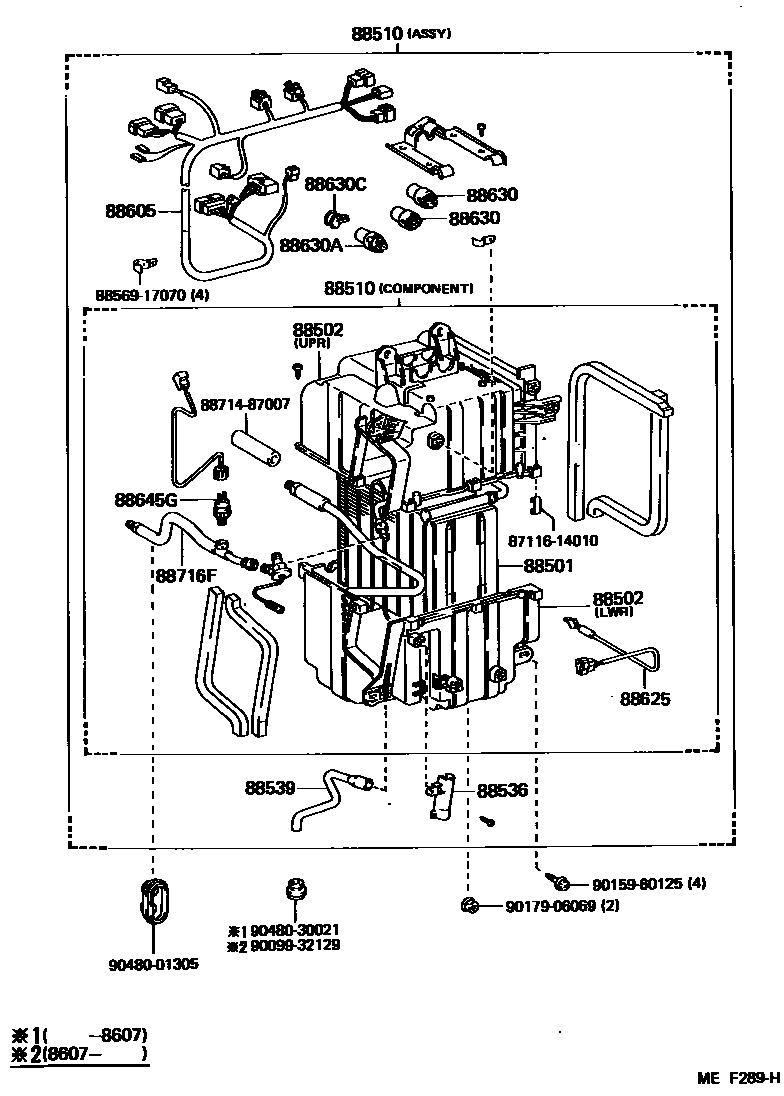

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1AIR CONDITIONER=MAKER OPTION 0002 1AIR CONDITIONER=MAKER OPTION

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-17010iAW11..RHD..GEN198411-198601

sub88501-17011

main88501-17011iAW11..ARL198601-198912

main88501-17020iAW11..LHD..GEN198411-198601

sub88501-17021

main88501-17021iAW11..LHD..GEN198601-198912

88502CASE SUB-ASSY, COOLING UNIT

main88502-17010iAW11..LHD..GEN198411-198912

8411

main88502-17020iAW11..LHD..GEN198411-198912

8411

88510UNIT ASSY, COOLER

main88510-17031iAW11..ARL198411-198912

COMPONENT

main88510-17070iAW11..LHD..GEN198411-198912

COMPONENT

main88510-17080iAW11..RHD..GEN198803-198912

COMPONENT

main88510-17080iAW11..RHD..(ARL,GEN)198411-198803

ASSY

main88510-17090iAW11..LHD..GEN198411-198912

ASSY

88536BRACKET, COOLING UNIT, NO.1

main88536-17010iAW11..LHD..GEN198411-198912

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-17010iAW11..RHD..(ARL,GEN)198411-198912

main88539-17020iAW11..LHD..GEN198411-198912

88605HARNESS SUB-ASSY, COOLER WIRING, NO.1

main88605-17070iAW11..RHD..GEN198411-198608

main88605-17080iAW11..LHD..GEN198411-198608

main88605-17150iAW11..RHD..GEN198608-198912

main88605-17160iAW11..LHD..GEN198608-198912

main88605-17170iAW11..ARL198708-198912

88625THERMISTOR, COOLER, NO.1

main88625-12070iAW11..LHD..GEN198411-198912

88630RELAY ASSY, COOLER

main90987-02004iAW11..GEN¥2,330198411-198912

88630ARELAY ASSY, COOLER

main90987-03001iAW11..LHD..GEN¥2,230198411-198912

88630CBRACKET, COOLER RELAY

main88718-20430iAW11..LHD..GEN198411-198912

88645GSWITCH, PRESSURE

main88645-10020iAW11..ARL,GEN198607-198912

main88645-12020iAW11..GEN198411-198607

88716FPIPE, COOLER REFRIGERANT LIQUID, F

main88716-17050iAW11..RHD..GEN¥3,370198411-198912

main88716-17060iAW11..LHD..GEN¥3,370198803-198912

8711614010SPRING, HEATER CASE FASTENING

main87116-14010

8856917070CLAMP (FOR COOLER RELAY)

main88569-17070

8871487007HOSE, COOLER REFRIGERANT LIQUID, NO.1

main88714-87007

9009932129

main90099-32129

9015960125

main90159-60125¥120

9017906069

main90179-06069¥120

9048001305

main90480-01305

9048030021

main90480-30021

20 parts on this diagram · 2 diagrams in section
