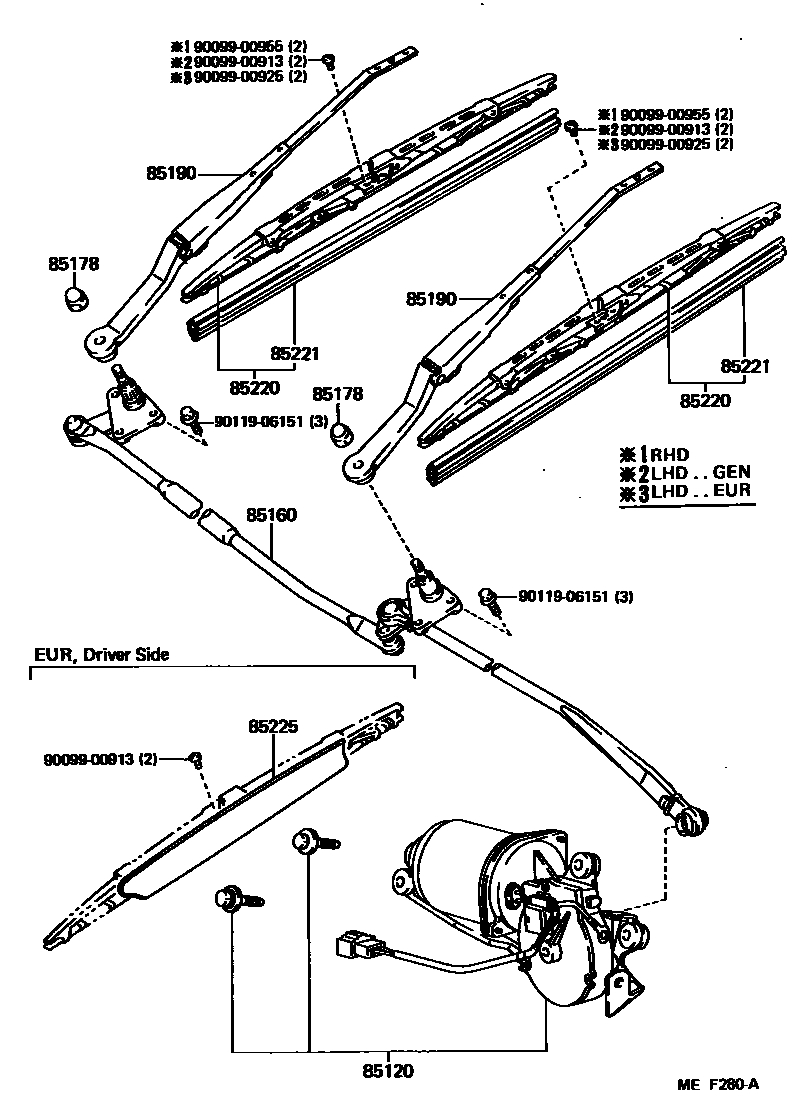

WINDSHIELD WIPER

85120MOTOR AND BRACKET ASSY, WINDSHIELD WIPER

main85120-17010iAW11..RHD..GEN198411-198904

sub85120-17070

main85120-17020iAW11..LHD..GEN198411-198912

sub85120-17030

main85120-17030iAW11..LHD..EUR198411-198912

main85120-17040iAW11..RHD..(ARL,EUR)198411-198912

main85120-17070iAW11..RHD..GEN198904-198912

sub85120-17040

85160LINK ASSY, WINDSHIELD WIPER

main85160-17010iAW11..RHD..(ARL,GEN)198411-198912

sub85160-17060

main85160-17020iAW11..LHD..GEN198411-198608

sub85160-17030

main85160-17021iAW11..LHD..GEN198608-198912

sub85160-17031

main85160-17030iAW11..LHD..EUR198411-198604

main85160-17040iAW11..RHD..EUG198411-198912

main85160-17050iAW11..LHD..EUR198604-198912

85178NUT (FOR FRONT WIPER ARM SETTING)

main90176-08029iAW11198411-198506

main90176-08033iAW11198506-198807

main90176-08040iAW11198807-198912

sub90176-08051

85190ARM ASSY, WINDSHIELD WIPER

main85190-17010iAW11..RHD..GEN198411-198608

RH

sub85190-17011

main85190-17011iAW11..RHD..GEN198608-198912

RH

main85190-17020iAW11..LHD..GEN198411-198608

LH

sub85190-17021

main85190-17021iAW11..LHD..GEN198608-198803

LH

main85190-17021iAW11..LHD..GEN198803-198912

RH

main85190-17030iAW11..LHD..EUR198411-198608

LH

sub85190-17031

main85190-17031iAW11..LHD..EUR198608-198912

LH

main85190-17040iAW11..ARL198708-198912

RH

main85190-17050iAW11..RHD..EUG198411-198608

RH

sub85190-17051

main85190-17051iAW11..RHD..EUG198608-198912

RH

main85210-17010iAW11..RHD198411-198608

LH

sub85210-17011

main85210-17011iAW11..RHD..(EUR,GEN)198608-198912

LH

main85210-17020iAW11..LHD198411-198608

RH

sub85210-17021

main85210-17021iAW11..LHD..EUR198608-198912

RH

main85210-17021iAW11..LHD..GEN198803-198912

LH

main85210-17030iAW11..ARL198708-198912

LH

sub85210-17011

85220BLADE ASSY, WINDSHIELD WIPER

main85220-16180iAW11..ARL198411-198912

RH

sub85220-16350

main85220-16270iAW11..LHD198411-198608

LH

sub85220-16640

main85220-16320iAW11..RHD198411-198912

LH

sub85220-16321

main85220-16340iAW11..LHD198411-198608

RH

sub85220-16640

main85220-16350iAW11..RHD..GEN198411-198912

RH

main85220-16630iAW11..LHD198608-198912

LH

sub85220-16880

main85220-16640iAW11..LHD198608-198912

RH

85221BLADE, WINDSHIELD WIPER

main85221-17020iAW11..LHD198608-198912

sub85221-40040

main85221-30100iAW11..RHD..(ARL,EUR)198411-198912

RH

sub85221-40040

main85221-30100iAW11..LHD198411-198608

sub85221-40040

main85221-30120iAW11..RHD..GEN198411-198912

sub85221-40040

main85221-30120iAW11..RHD..(ARL,EUR)198411-198912

LH

sub85221-40040

85225WING, WIPER BLADE

main85225-17030iAW11..LHD..EUR198411-198912

main85225-17050iAW11..RHD..EUG198411-198912

9009900913

main90099-00913

9009900925

main90099-00925

9009900955

main90099-00955

9011906151

main90119-06151

11 parts on this diagram · 1 diagram in section
