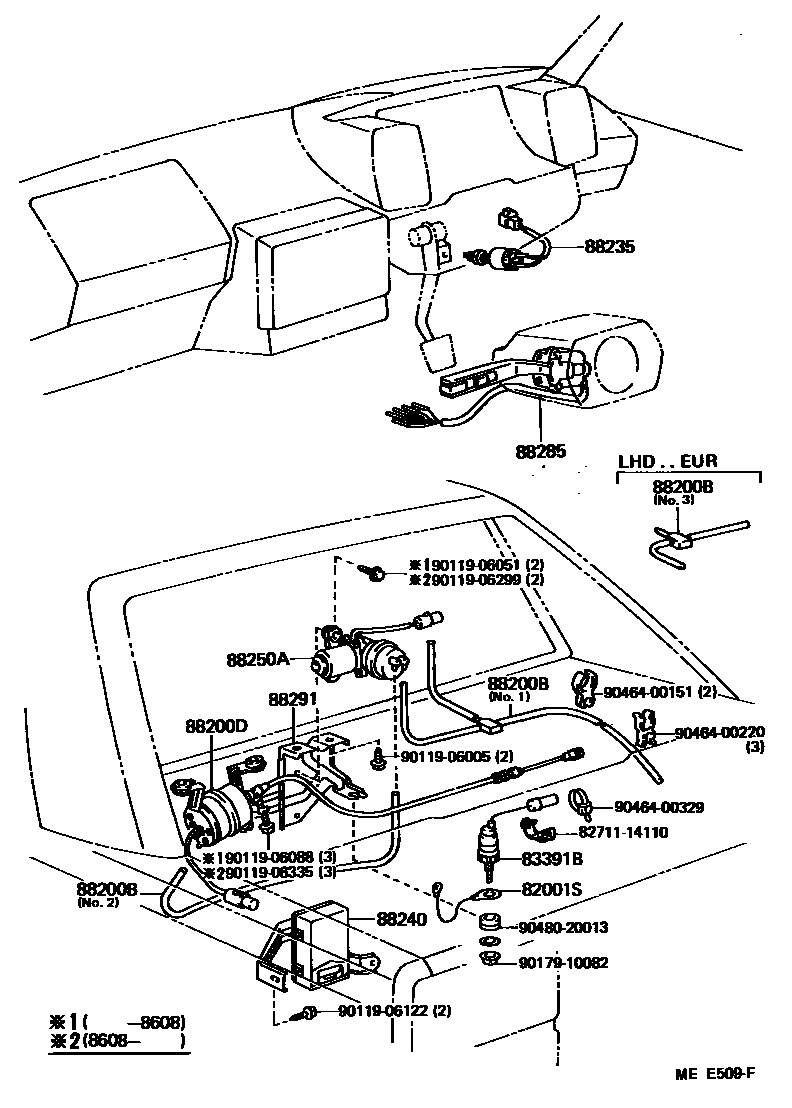

CRUISE CONTROL (AUTO DRIVE)

82001SCABLE, BOND

main90980-07249iAW11198411-198912

83391BSWITCH, AUTO DRIVE VACUUM

main83391-22040iAW11..RHD;AW11..LHD..EUG;AW11..LHD..GEN198411-198912

88200BHOSE, CRUISE CONTROL VACUUM

main88283-17010iAW11..RHD;AW11..LHD..EUG;AW11..LHD..GEN198411-198803

NO.1

main88283-17010iAW11198803-198912

W(AUTO DRIVE)

main88283-17040iAW11..LHD..EUR198608-198803

NO.3

sub88283-22030

main88283-17040iAW11..LHD..EUR198803-198912

W(AUTO DRIVE)

sub88283-22030

main95411-19960iAW11198411-198803

*H,L=360,MARK=#*,NO.2

sub90999-92003

main95411-19960iAW11198803-198912

*H,L=600,MARK=#*

sub90999-92003

88200DACTUATOR ASSY, CRUISE CONTROL

main88200-17020iAW11..RHD;AW11..LHD..EUG;AW11..LHD..GEN198411-198608

sub88200-17021

main88200-17050iAW11198608-198804

sub88200-17051

main88200-17051iAW11198801-198912

88235SWITCH ASSY, CRUISE CONTROL(AUTO DRIVE) RELEASE

main88280-35010iAW11198411-198912

88240COMPUTER ASSY, CRUISE CONTROL

main88240-17020iAW11198411-198508

sub88240-17030

main88240-17030iAW11..RHD;AW11..LHD..EUG;AW11..LHD..GEN198508-198604

sub88240-17070

main88240-17031iAW11..RHD;AW11..LHD..EUG;AW11..LHD..GEN198604-198608

main88240-17060iAW11198608-198912

88250APUMP ASSY, CRUISE CONTROL

main88250-17010iAW11..RHD;AW11..LHD..EUG;AW11..LHD..GEN198411-198608

sub88251-17030

sub91611-60622

main88251-17030iAW11198608-198912

88285SWITCH, CRUISE CONTROL

main88285-17070iAW11..LHD..EUG;AW11..LHD..GEN198506-198608

TOKAIRIKA

main88285-17070iAW11..LHD198608-198803

main88285-17070iAW11..LHD198803-198912

W(AUTO DRIVE),TOKAIRIKA

main88285-17080iAW11..LHD..EUG;AW11..LHD..GEN198506-198608

MATSUSHITA

main88285-17080iAW11..LHD198803-198912

W(AUTO DRIVE),MATSUSHITA

main88285-17120iAW11..RHD198803-198912

MATSUSHITA

main88285-17120iAW11..RHD198608-198803

main88285-19015iAW11..LHD198411-198506

TOKAIRIKA

sub88285-17070

sub90463-15402

main88285-19025iAW11..LHD198411-198506

MATSUSHITA

main88285-19065iAW11..RHD198411-198608

88291BRACKET, CRUISE CONTROL(AUTO DRIVE), NO.1

main88291-17010iAW11198411-198912

8271114110WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-14110

9011906005

main90119-06005

9011906051

main90119-06051

9011906088

main90119-06088

9011906122

main90119-06122

9011906299

main90119-06299

9011906335

main90119-06335

9017910082

main90179-10082

9046400151

main90464-00151

9046400220

main90464-00220

9046400329

main90464-00329

9048020013

main90480-20013

21 parts on this diagram · 1 diagram in section
