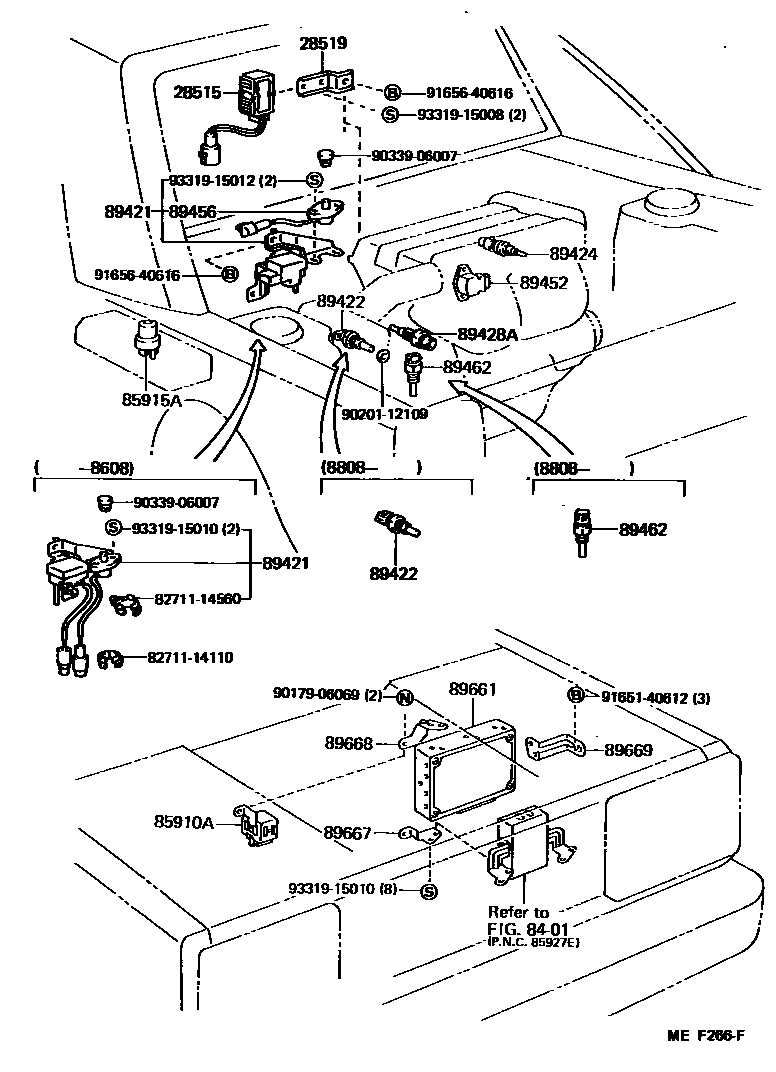

ELECTRONIC FUEL INJECTION SYSTEM

28515RESISTOR, SOLENOID

main28515-11010i4AGELC..AW11198608-198803

main28515-52010i4AGELC..AW11198511-198608

sub28515-11010

28519BRACKET, SOLENOID RESISTOR

main28519-16010i4AGELC..AW11198511-198608

main28519-16020i4AGELC..AW11198608-198912

8401

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main85910-12010iAW11..LHD..EUG;AW11..LHD..GEN;AW11..RHD..(EUR,GEN)198708-198912

main85910-17010iAW11198411-198608

main85910-30050iAW11198608-198912

85915ARELAY, MAIN

main90987-02004iAW11198411-198912

89421SENSOR ASSY, VACUUM (FOR E.F.I.)

main89420-17020iAW11..LHD..EUG;AW11..LHD..GEN;AW11..RHD..(EUR,GEN)198608-198912

main89421-17020iAW11..RHD;AW11..LHD..EUG;AW11..LHD..GEN198411-198608

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-20010iAW11198808-198912

main89422-30020iAW11198411-198808

sub89422-12010

89424SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.)

main89424-12010iAW11..LHD..EUG;AW11..LHD..GEN;AW11..RHD..(EUR,GEN)198708-198912

main89424-28010iAW11..RHD;AW11..LHD..EUG;AW11..LHD..GEN198411-198708

89428ASWITCH, WATER TEMPERATURE (FOR E.F.I)

main89428-28030iAW11..FRG198511-198608

89452SENSOR, THROTTLE POSITION (FOR E.F.I.)

main89452-12040iAW11198708-198903

DENSO

main89452-12050iAW11..LHD..EUG;AW11..LHD..GEN;AW11..RHD..(EUR,GEN)198708-198912

AISIN

sub89452-33010

main89452-20070iAW11198608-198708

main89452-28010iAW11198411-198608

sub89452-28040

89456RESISTOR, VARIABLE

main89456-20010iAW11..LHD..EUG;AW11..LHD..GEN;AW11..RHD..(EUR,GEN)198608-198912

89462SWITCH, START INJECTOR TIME

main89462-20030iAW11198808-198912

main89462-30011iAW11198411-198808

89661COMPUTER, ENGINE CONTROL

main89661-17020iAW11..FRG198511-198608

main89661-17030iAW11..EUG198411-198608

main89661-17040iAW11..GEN198411-198608

main89661-17070iAW11..EUG198608-198708

main89661-17080iAW11..GEN198608-198708

main89661-17100iAW11..FRG198608-198708

main89661-17140iAW11..RHD..GEN198708-198803

SINGAPOLE SPEC

main89661-17140iAW11..EUG198708-198912

main89661-17140iAW11..RHD..GEN198803-198912

SINGAPORE SPEC

main89661-17150iAW11..GEN198708-198912

main89661-17170iAW11..FRG198708-198912

main89661-17190iAW11..ARL198708-198803

sub89661-17191

main89661-17191iAW11..ARL198803-198912

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-17010iAW11198411-198608

main89667-17020iAW11198608-198912

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-17010iAW11198411-198608

main89668-17020iAW11..FRG198608-198708

main89668-17030iAW11..LHD..EUG;AW11..LHD..GEN;AW11..RHD..(EUR,GEN)198608-198912

89669BRACKET, ENGINE CONTROL COMPUTER, NO.3

main89669-17010iAW11198411-198608

main89669-17020iAW11..FRG198608-198708

main89669-17040iAW11198608-198912

8271114110WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-14110

8271114560WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-14560

9017906069

main90179-06069

9020112109

main90201-12109

9033906007

main90339-06007

9165140612

main91651-40612

9165640616

main91656-40616

9331915008

main93319-15008

9331915010

main93319-15010

9331915012

main93319-15012

26 parts on this diagram · 1 diagram in section
