WIRING & CLAMP

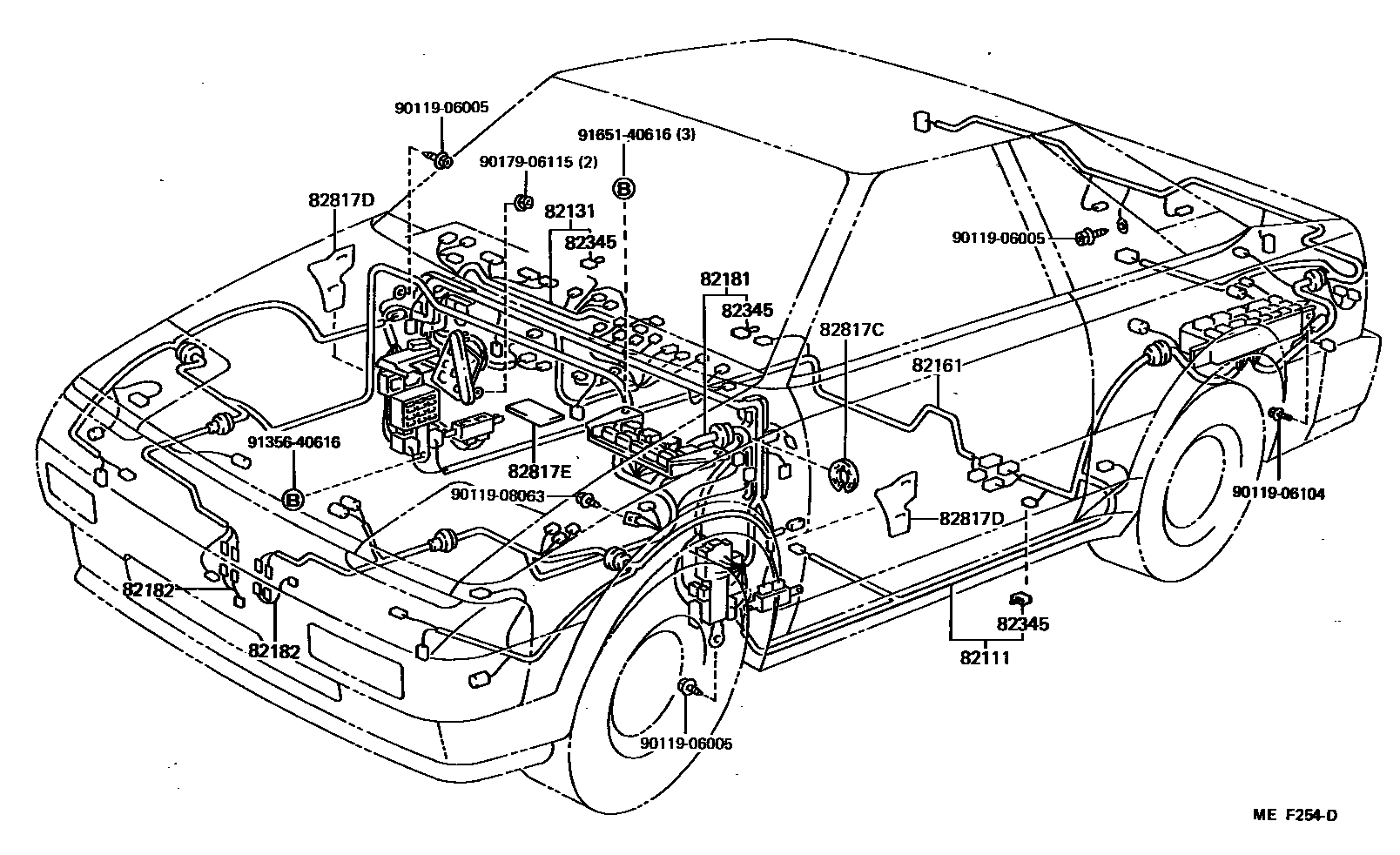

Parts diagram

82111WIRE, ENGINE ROOM MAIN

main82111-17070i198411-198608

main82111-17080i198411-198608

W/*CRC

main82111-17090i198411-198608

main82111-17100i198411-198608

main82111-17110i198411-198608

main82111-17220i198511-198608

main82111-17370i198608-198701

main82111-17372i198701-198708

main82111-17373i198708-198912

main82111-17380i198608-198701

W/*CRC

main82111-17382i198701-198708

W/*CRC

main82111-17383i198708-198803

W/*CRC

main82111-17383i198803-198912

W(AUTO DRIVE)

main82111-17390i198608-198701

main82111-17392i198701-198708

main82111-17393i198708-198912

main82111-17400i198608-198701

main82111-17401i198701-198708

main82111-17402i198708-198912

main82111-17410i198608-198701

main82111-17412i198701-198708

main82111-17413i198708-198912

main82111-17420i198608-198701

main82111-17421i198701-198708

main82111-17422i198708-198912

main82111-17510i198708-198808

main82111-17511i198808-198912

82131WIRE, COWL

main82131-17070i198411-198508

main82131-17071i198508-198608

main82131-17080i198411-198508

W/*PW OR *CRC

main82131-17081i198508-198608

W/*PW OR *CRC

main82131-17090i198411-198412

main82131-17091i198412-198608

main82131-17101i198411-198508

main82131-17102i198508-198608

main82131-17111i198411-198608

main82131-17400i198608-198708

main82131-17401i198708-198912

main82131-17410i198608-198708

W/*PW OR *CRC

main82131-17411i198803-198912

W(POWER WINDOW OR CRUISE CONTROL)

main82131-17411i198708-198803

W/*PW OR *CRC

main82131-17420i198608-198701

ENGLAND SPEC

main82131-17421i198701-198708

ENGLAND SPEC

main82131-17422i198708-198912

ENGLAND SPEC

main82131-17430i198608-198708

main82131-17431i198708-198912

main82131-17440i198608-198708

main82131-17441i198708-198912

main82131-17470i198608-198708

main82131-17471i198708-198912

main82131-17540i198708-198912

82161WIRE, FLOOR

main82161-17060i198411-198608

main82161-17070i198411-198608

main82161-17090i198411-198608

main82161-17260i198608-198701

main82161-17261i198701-198912

main82161-17270i198608-198912

main82161-17280i198608-198708

main82161-17281i198708-198912

82181WIRE, LUGGAGE ROOM, NO.1

main82181-17020i198411-198608

main82181-17040i198411-198608

main82181-17050i198411-198608

main82181-17060i198411-198608

main82181-17100i198608-198708

main82181-17101i198708-198912

main82181-17120i198608-198708

main82181-17121i198708-198912

main82181-17130i198608-198701

ENGLAND SPEC

main82181-17131i198701-198708

ENGLAND SPEC

main82181-17132i198708-198912

ENGLAND SPEC

main82181-17140i198608-198912

main82181-17150i198608-198708

main82181-17151i198708-198912

main82181-17170i198708-198912

82182WIRE, LUGGAGE ROOM, NO.2

main82182-17030i198810

82345DIODE

main82345-12050i198608-198912

2 POLE CONNECTOR,NO.1

main82345-20060i198708-198912

2 POLE CONNECTOR,NO.2

main82345-22010i198608-198912

4 POLE CONNECTOR

main82345-22051i198608-198912

3 POLE CONNECTOR,WHITE

main82345-32020i198608-198912

3 POLE CONNECTOR,ORANGE

82817PROTECTOR, WIRING HARNESS, NO.1

main82817-20320i198411-198912

82817CPROTECTOR, WIRING HARNESS, NO.4

main82817-32010i198411-198912

82817DPROTECTOR, WIRING HARNESS, NO.5

main82817-17090i198411-198912

82817EPROTECTOR, WIRING HARNESS, NO.6

main82817-91707i198411-198912

9011906005

main90119-06005

9011906104

main90119-06104

9011908063

main90119-08063

9017906115

main90179-06115

9135640616

main91356-40616

9165140616

main91651-40616

16 parts on this diagram · 5 diagrams in section
