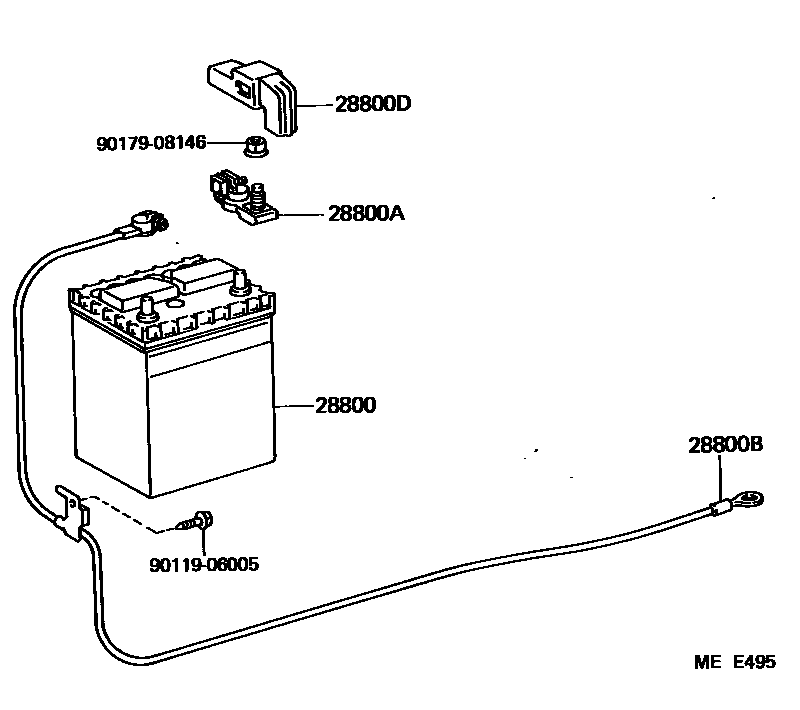

BATTERY & BATTERY CABLE

28800BATTERY

main28800-31020i4AGEL..AW11..RHD..GEN198803-198912

32C24L

sub28800-31021

main28800-31020i4AGEL..AW11..RHD..GEN198803-198912

32C24L,W(BATTERY=32C24L)

sub28800-31021

main28800-31031i4AGEL..AW11..EUG198411-198803

32C24L,32C24L(N40L)

sub28800-31021

main28800-31031i4AG#..AW11..ARL,EUR198803-198912

32C24L

sub28800-31021

main28800-31031i4AG#..AW11..ARL,EUR198803-198912

32C24L,W(BATTERY=32C24L)

sub28800-31021

main28800-31080i4AGEL..AW11..GEN198411-198803

34B19L(S),34B19L(NS40ZAL)

sub28800-72010

main28800-31080i4AGEL..AW11..GEN198803-198912

34B19L(S)

sub28800-72010

main28800-31200i4AG#..AW11..EUR,GEN198608-198803

50D20L,50D20L-MF

main28800-31200i4AG#..AW11..EUR,GEN198803-198912

50D20L,GS

main28800-31210i4AG#..AW11198411-198608

50D20L,50D20L-MF

main28800-31210i4AG#..AW11..EUR,GEN198803-198912

50D20L,YUASA

main28800-31220i4AG#..AW11..EUR,GEN198803-198912

50D20L,KOBE

main28800-31230i4AG#..AW11..EUR,GEN198803-198912

50D20L,MATSUSHITA

main28800-31240i4AG#..AW11..EUR,GEN198803-198912

50D20L,FURUKAWA

28800ATERMINAL, BATTERY POSITIVE

main90982-05029i4AG#..AW11198411-198608

sub90982-05030

main90982-05030i4AG#..AW11198608-198912

28800BCABLE, BATTERY TO GROUND

main82123-17010i4AG#..AW11198411-198608

main82123-17060i4AG#..AW11198608-198912

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-24010i4AG#..AW11198411-198912

9011906005

main90119-06005

9017908146

main90179-08146

6 parts on this diagram · 1 diagram in section
