EPC Data

EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

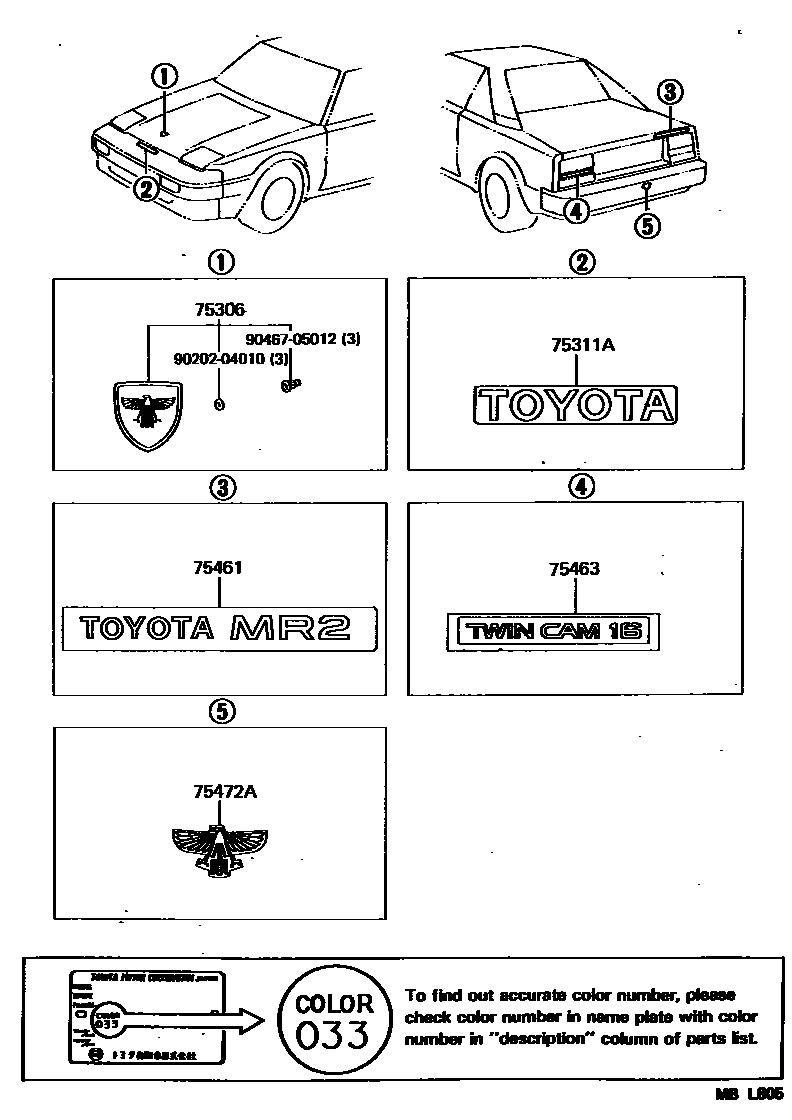

Parts diagram
75306PLATE, HOOD NAME
main75331-17010i198411-198912
sub75331-17H90
75311APLATE, FRONT NAME, NO.1
main75311-17010-03i198608-198803
TOYOTA,DARK SILVER-M,DARK SILVER METALLIC,4G8 ,2Z9 ,21E
sub75311-17010
main75311-17010-03i198608-198803
TOYOTA,DARK SILVER-M,DARK SILVER METALLIC,040 ,166 ,204
sub75311-17010
main75311-17010-03i198803-198912
TOYOTA,DARK SILVER METALLIC,040 ,2Z9 ,204 ,21E
sub75311-17010
main75311-17010-04i198411-198608
TOYOTA,DARK GRAY,DARK BLUE,040 ,150 ,4E3 ,204 ,2Z9
sub75311-17010
main75311-17010-05i198608-198803
TOYOTA,BEIGE-M,BEIGE METALLIC,3E5 ,28B
sub75311-17010
main75311-17010-05i198803-198912
TOYOTA,BEIGE METALLIC,3E5
sub75311-17010
main75311-17010-08i198411-198608
TOYOTA,WHITE,WHITE,3E5 ,8B8 ,2S8
sub75311-17010
main75311-17010-13i198803-198912
TOYOTA,LIGHT SILVER M,167
sub75311-17010
main75311-17010-13i198708-198803
TOYOTA,LIGHT SILVER-M,LIGHT SILVER M,167
sub75311-17010
main75311-17010-14i198608-198803
TOYOTA,LIGHT BLUM-M,LIGHT BLUE METALLIC,8E3
sub75311-17010
main75311-17010-14i198803-198912
TOYOTA,LIGHT BLUE METALLIC,8E3
sub75311-17010
main75311-17010-24i198808-198912
TOYOTA,DARK BLUE M,8G2
sub75311-17010
75461PLATE, REAR NAME, NO.2 (MODEL MARK)
main75441-17010i198411-198608
TOYOTA MR2(3E5,8B8,2S8,204)
sub75441-17011
main75441-17011-03i198803-198912
TOYOTA MR2,DARK SILVER METALLIC,040 ,2Z9 ,204
sub75441-17011
main75441-17011-03i198608-198803
TOYOTA MR2,TOYOTA MR2,DARK SILVER METALLIC,040 ,166 ,204
sub75441-17011
main75441-17011-03i198608-198803
TOYOTA MR2,TOYOTA MR2,DARK SILVER METALLIC,4G8 ,2Z9
sub75441-17011
main75441-17011-04i198803-198912
TOYOTA MR2,LIGHT BLUE METALLIC,8E3
sub75441-17011
main75441-17011-04i198608-198803
TOYOTA MR2,TOYOTA MR2,LIGHT BLUE METALLIC,8E3
sub75441-17011
main75441-17011-05i198608-198803
TOYOTA MR2,TOYOTA MR2,BEIGE METALLIC,3E5 ,28B
sub75441-17011
main75441-17011-05i198803-198912
TOYOTA MR2,BEIGE METALLIC,3E5
sub75441-17011
main75441-17011-13i198803-198912
TOYOTA MR2,LIGHT SILVER M,167 ,21E
sub75441-17011
main75441-17011-13i198708-198803
TOYOTA MR2,TOYOTA MR2,LIGHT SILVER M,167 ,21E
sub75441-17011
main75441-17011-14i198808-198912
TOYOTA MR2,DARK BLUE M,8G2
sub75441-17011
main75441-17020i198411-198508
TOYOTA MR2(040,150,4E3)
sub75441-17011
main75441-17020i198508-198608
TOYOTA MR2(150,4E3)
sub75441-17011
main75441-17030i198508-198608
FRANCE SPEC(3E5,8B8,2S8,204)
sub75441-17010
main75441-17030i198411-198608
BELGIUM SPEC(3E5,8B8,2S8,204)
sub75441-17010
main75441-17031-03i198608-198803
TOYOTA MR2,FRANCE SPEC;BELGIUM SPEC,DARK SILVER METALLIC,040 ,166 ,204
sub75441-17031
main75441-17031-03i198608-198803
TOYOTA MR2,FRANCE SPEC;BELGIUM SPEC,DARK SILVER METALLIC,4G8 ,2Z9
sub75441-17031
main75441-17031-03i198803-198912
TOYOTA MR2,BELGIUM SPEC OR FRANCE SPEC,DARK SILVER METALLIC,040 ,2Z9 ,204
sub75441-17031
main75441-17031-04i198803-198912
TOYOTA MR2,BELGIUM SPEC OR FRANCE SPEC,LIGHT BLUE METALLIC,8E3
sub75441-17031
main75441-17031-04i198608-198803
TOYOTA MR2,FRANCE SPEC;BELGIUM SPEC,LIGHT BLUE METALLIC,8E3
sub75441-17031
main75441-17031-05i198608-198803
TOYOTA MR2,FRANCE SPEC;BELGIUM SPEC,BEIGE METALLIC,3E5 ,28B
sub75441-17031
main75441-17031-05i198803-198912
TOYOTA MR2,BELGIUM SPEC OR FRANCE SPEC,BEIGE METALLIC,3E5
sub75441-17031
main75441-17031-13i198708-198803
TOYOTA MR2,FRANCE SPEC;BELGIUM SPEC,LIGHT SILVER M,167 ,21E
sub75441-17031
main75441-17031-13i198803-198912
TOYOTA MR2,BELGIUM SPEC OR FRANCE SPEC,LIGHT SILVER M,167 ,21E
sub75441-17031
main75441-17031-14i198808-198912
TOYOTA MR2,BELGIUM SPEC OR FRANCE SPEC,DARK BLUE M,8G2
sub75441-17031
main75441-17040i198508-198608
FRANCE SPEC(150,4E3);BELGIUM SPEC(150,4E3)
sub75441-17020
main75441-17040i198411-198508
BELGIUM SPEC(040,150,4E3)
sub75441-17020
main75441-17050i198508-198608
TOYOTA MR2(040,2Z9)
sub75441-17011
main75441-17060i198508-198608
BELGIUM SPEC(040,2Z9);FRANCE SPEC(040,2Z9)
75463PLATE, REAR NAME, NO.4 (GRADE MARK)
main75471-17020i198411-198803
TWIN CAM 16,TWIN CAM 16
main75471-17020i198803-198911
TWIN CAM 16
75472APLATE, REAR BODY NAME, NO.2
main75472-17010-03i198508-198608
GRAY & RED,GRAY METALLIC/RED,040 ,150 ,204 ,2Z9
sub75472-17010
main75472-17010-05i198508-198608
BEIGE & GRAY,BEIGE/GRAY,3E5
sub75472-17010
main75472-17010-07i198411-198608
GREEN & RED,GREEN/RED,2S8
sub75472-17010
main75472-17010-13i198508-198608
SILVER & BLUE,SILVER/BLUE,8B8
sub75472-17010
main75472-17010-16i198508-198608
GOLD & BROWN,GOLD/BROWN,4E3
sub75472-17010
main75472-17011-03i198608-198708
DARK SILVER-M,DARK SILVER METALLIC,28B ,166 ,4G8
sub75472-17011
main75472-17011-03i198608-198803
DARK SILVER-M,DARK SILVER METALLIC,040 ,204
sub75472-17011
main75472-17011-03i198803-198912
DARK SILVER METALLIC,040 ,204
sub75472-17011
main75472-17011-04i198803-198912
LIGHT BLUE METALLIC,8E3
sub75472-17011
main75472-17011-04i198608-198803
LIGHT BLUE-M,LIGHT BLUE METALLIC,8E3
sub75472-17011
main75472-17011-05i198608-198803
BEIGE-M,BEIGE METALLIC,3E5
sub75472-17011
main75472-17011-05i198803-198912
BEIGE METALLIC,3E5
sub75472-17011
main75472-17011-13i198803-198912
LIGHT SILVER M,167 ,2Z9 ,21E
sub75472-17011
main75472-17011-13i198608-198803
LIGHT SILVER-M,LIGHT SILVER M,2Z9 ,167 ,21E
sub75472-17011
main75472-17011-14i198808-198912
DARK BLUE M,8G2
sub75472-17011
9020204010
main90202-04010
9046705012
main90467-05012

7 parts on this diagram · 1 diagram in section
