SEAT BELT & CHILD RESTRAINT SEAT

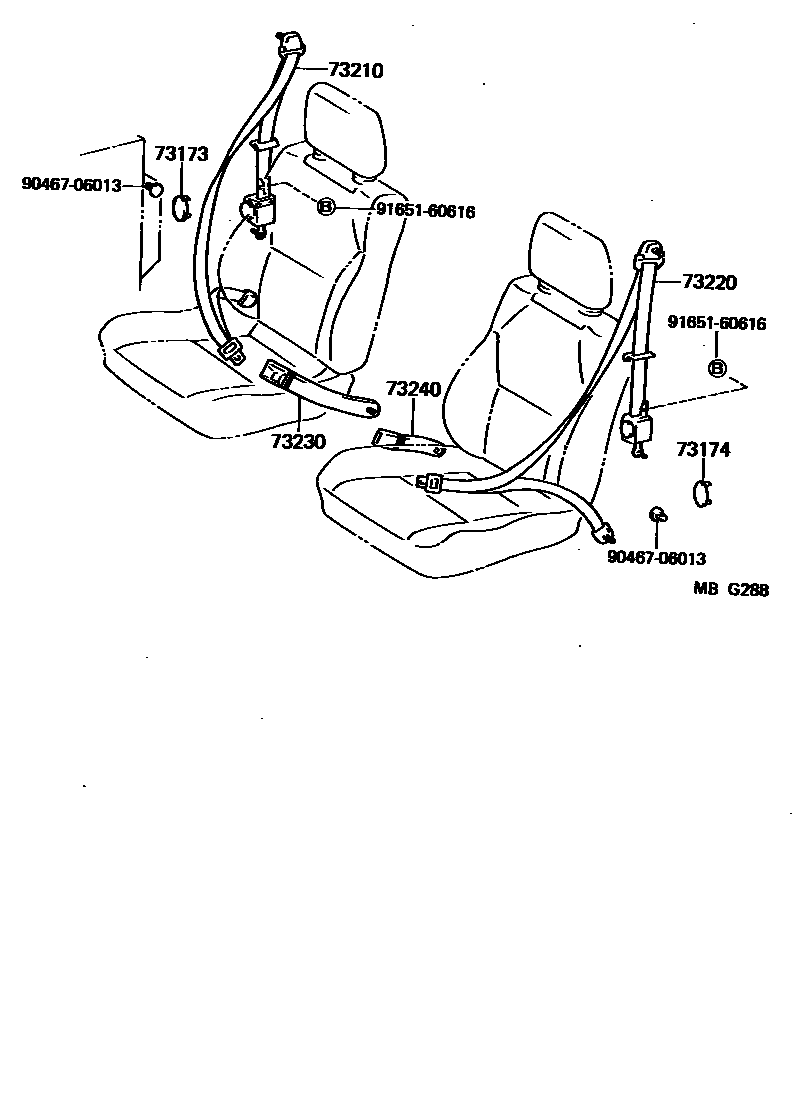

Parts diagram
73173COVER, FRONT SEAT BELT HOLE, RH
main73173-14010i198411-198912
73174COVER, FRONT SEAT BELT HOLE, LH
main73173-14010i198411-198912
73210BELT ASSY, FRONT SEAT OUTER, RH
main73210-17040-01i198411-198505
BLACK,BLACK,TRIM2#
main73210-17041-01i198505-198608
BLACK,BLACK,TRIM2#
main73210-17050-01i198803-198808
BLACK,TRIM2#
main73210-17050-01i198608-198803
BLACK,BLACK,TRIM2#
main73210-17050-04i198803-198912
DARK BLUE,TRIM8#
main73210-17050-04i198608-198803
BLUE,DARK BLUE,TRIM8#
main73210-17050-05i198608-198803
BEIGE,DARK BEIGE,TRIM4#
main73210-17050-05i198803-198808
DARK BEIGE,TRIM4#
main73210-17050-11i198808-198912
BLACK,TRIM2#
main73210-17060-01i198708-198803
BLACK,BLACK,TRIM2#
sub73210-17060
main73210-17060-01i198803-198808
BLACK,TRIM2#
sub73210-17060
main73210-17060-04i198708-198803
BLUE,DARK BLUE,TRIM8#
sub73210-17060
main73210-17060-04i198803-198912
DARK BLUE,TRIM8#
sub73210-17060
main73210-17060-11i198808-198912
BLACK,TRIM2#
sub73210-17060
73220BELT ASSY, FRONT SEAT OUTER, LH
main73220-17040-01i198411-198505
BLACK,BLACK,TRIM2#
main73220-17041-01i198505-198608
BLACK,BLACK,TRIM2#
main73220-17050-01i198608-198803
BLACK,BLACK,TRIM2#
main73220-17050-01i198803-198808
BLACK,TRIM2#
main73220-17050-04i198608-198803
BLUE,DARK BLUE,TRIM8#
main73220-17050-04i198803-198912
DARK BLUE,TRIM8#
main73220-17050-05i198608-198803
BEIGE,DARK BEIGE,TRIM4#
main73220-17050-05i198803-198808
DARK BEIGE,TRIM4#
main73220-17050-11i198808-198912
BLACK,TRIM2#
main73220-17060-01i198803-198808
BLACK,TRIM2#
main73220-17060-01i198708-198803
BLACK,BLACK,TRIM2#
main73220-17060-04i198708-198803
BLUE,DARK BLUE,TRIM8#
main73220-17060-04i198803-198912
DARK BLUE,TRIM8#
main73220-17060-11i198808-198912
BLACK,TRIM2#
73230BELT ASSY, FRONT SEAT INNER, RH
main73230-17041-01i198411-198803
BLACK,BLACK,TRIM2#
sub73230-17041
main73230-17041-01i198803-198808
BLACK,TRIM2#
sub73230-17041
main73230-17041-04i198608-198803
BLUE,DARK BLUE,TRIM8#
sub73230-17041
main73230-17041-04i198803-198912
DARK BLUE,TRIM8#
sub73230-17041
main73230-17041-05i198608-198803
BEIGE,DARK BEIGE,TRIM4#
sub73230-17041
main73230-17041-05i198803-198808
DARK BEIGE,TRIM4#
sub73230-17041
main73230-17041-11i198808-198912
BLACK,TRIM2#
sub73230-17041
main73230-17050-01i198803-198808
BLACK,TRIM2#
sub73230-17050
main73230-17050-01i198708-198803
BLACK,BLACK,TRIM2#
sub73230-17050
main73230-17050-04i198803-198912
DARK BLUE,TRIM8#
sub73230-17050
main73230-17050-04i198708-198803
BLUE,DARK BLUE,TRIM8#
sub73230-17050
main73230-17050-11i198808-198912
BLACK,TRIM2#
sub73230-17050
73240BELT ASSY, FRONT SEAT INNER, LH
main73230-17041-01i198411-198803
BLACK,BLACK,TRIM2#
sub73230-17041
main73230-17041-01i198803-198808
BLACK,TRIM2#
sub73230-17041
main73230-17041-04i198608-198803
BLUE,DARK BLUE,TRIM8#
sub73230-17041
main73230-17041-04i198803-198912
DARK BLUE,TRIM8#
sub73230-17041
main73230-17041-05i198803-198808
DARK BEIGE,TRIM4#
sub73230-17041
main73230-17041-05i198608-198803
BEIGE,DARK BEIGE,TRIM4#
sub73230-17041
main73230-17041-11i198808-198912
BLACK,TRIM2#
sub73230-17041
main73230-17050-01i198803-198808
BLACK,TRIM2#
sub73230-17050
main73230-17050-01i198708-198803
BLACK,BLACK,TRIM2#
sub73230-17050
main73230-17050-04i198708-198803
BLUE,DARK BLUE,TRIM8#
sub73230-17050
main73230-17050-04i198803-198912
DARK BLUE,TRIM8#
sub73230-17050
main73230-17050-11i198808-198912
BLACK,TRIM2#
sub73230-17050
9046706013
main90467-06013
9165160616
main91651-60616

8 parts on this diagram · 1 diagram in section
