EPC Data

FRONT SEAT & SEAT TRACK

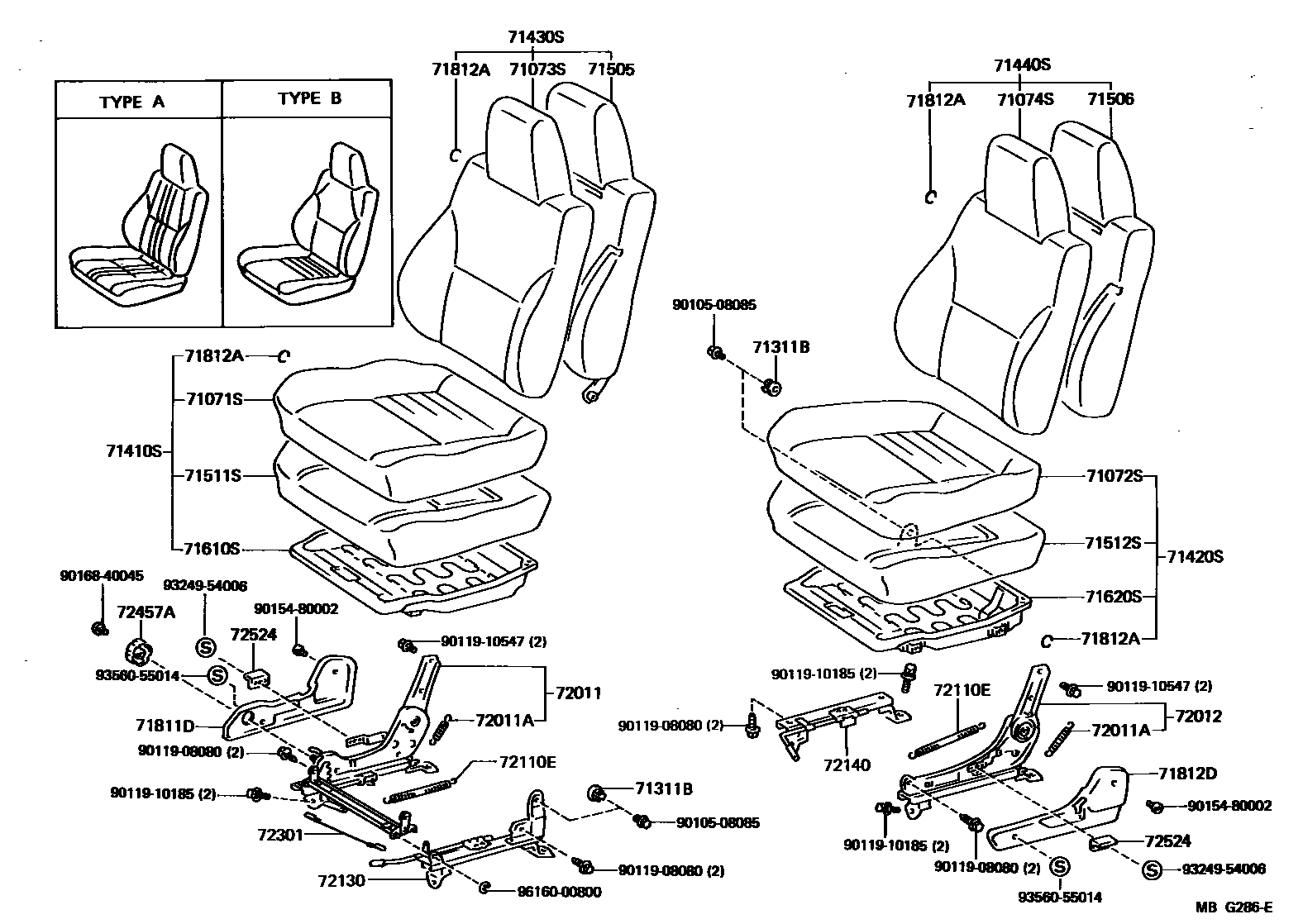

Parts diagram
71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71071-17040-01i198411-198608
FB,BLACK,BLACK,TRIM2#
main71071-17050-02i198411-198608
*SPS,FB,BLACK & RED,BLACK/RED,TRIM2#
main71071-17050-03i198411-198608
*SPS,FB,BLACK & GRAY,BLACK/GRAY,TRIM2#
main71071-17050-04i198411-198608
*SPS,FB,BLACK & SKY BLUE,BLACK/SKY BLUE,TRIM2#
main71071-17050-05i198411-198608
*SPS,FB,BLACK & BEIGE,BLACK/BEIGE,TRIM2#
main71071-17060-01i198411-198608
FB,BLACK,BLACK,TRIM2#
main71071-17070-02i198411-198608
*SPS,FB,BLACK & RED,BLACK/RED,TRIM2#
main71071-17070-03i198411-198608
*SPS,FB,BLACK & GRAY,BLACK/GRAY,TRIM2#
main71071-17070-04i198411-198608
*SPS,FB,BLACK & SKY BLUE,BLACK/SKY BLUE,TRIM2#
main71071-17070-05i198411-198608
*SPS,FB,BLACK & BEIGE,BLACK/BEIGE,TRIM2#
main71071-17100-01i198803-198808
BLACK,TRIM2#
main71071-17100-01i198608-198803
FB,BLACK,BLACK,TRIM2#
main71071-17100-04i198803-198808
DARK BLUE,TRIM8#
main71071-17100-04i198608-198803
FB,BLUE,DARK BLUE,TRIM8#
main71071-17100-05i198608-198803
FB,BEIGE,DARK BEIGE,TRIM4#
main71071-17100-05i198803-198808
DARK BEIGE,TRIM4#
main71071-17101-01i198808-198912
BLACK,TRIM2#
main71071-17101-04i198808-198912
BLUE,TRIM8#
main71071-17110-01i198803-198808
BLACK,TRIM2#
main71071-17110-01i198608-198803
FB,BLACK,BLACK,TRIM2#
main71071-17110-04i198803-198808
DARK BLUE,TRIM8#
main71071-17110-04i198608-198803
FB,BLUE,DARK BLUE,TRIM8#
main71071-17110-05i198608-198803
FB,BEIGE,DARK BEIGE,TRIM4#
main71071-17110-05i198803-198808
DARK BEIGE,TRIM4#
main71071-17111-01i198808-198912
BLACK,TRIM2#
main71071-17111-04i198808-198912
DARK BLUE,TRIM8#
main71071-17120-01i198608-198803
*SPS,FB,BLACK,BLACK,TRIM2#
main71071-17120-01i198803-198808
W(SPORTS SEAT),BLACK,TRIM2#
main71071-17120-04i198803-198808
W(SPORTS SEAT),DARK BLUE,TRIM8#
main71071-17120-04i198608-198803
*SPS,FB,BLUE,DARK BLUE,TRIM8#
main71071-17120-05i198803-198808
W(SPORT SEAT),DARK BEIGE,TRIM4#
main71071-17120-05i198608-198803
*SPS,FB,BEIGE,DARK BEIGE,TRIM4#
main71071-17121-01i198808-198912
W(SPORTS SEAT),BLACK,TRIM2#
main71071-17121-04i198808-198912
DARK BLUE,TRIM8#
main71071-17130-01i198803-198808
W(SPORTS SEAT),BLACK,TRIM2#
main71071-17130-01i198608-198803
*SPS,FB,BLACK,BLACK,TRIM2#
main71071-17130-04i198803-198808
W(SPORTS SEAT),DARK BLUE,TRIM8#
main71071-17130-04i198608-198803
*SPS,FB,BLUE,DARK BLUE,TRIM8#
main71071-17130-05i198608-198803
*SPS,FB,BEIGE,DARK BEIGE,TRIM4#
main71071-17130-05i198803-198808
W(SPORTS SEAT),DARK BEIGE,TRIM4#
main71071-17131-01i198808-198912
W(SPORTS SEAT),BLACK,TRIM2#
main71071-17131-04i198808-198912
W(SPORTS SEAT),DARK BLUE,TRIM8#
main71071-17140-01i198608-198803
*SPS,LEATHER,BLACK,BLACK,TRIM2#
sub71071-17140
main71071-17140-01i198803-198808
W(LEATHER SEAT),BLACK,TRIM2#
sub71071-17140
main71071-17140-11i198808-198912
W(LEATHER SEAT),BLACK,TRIM2#
sub71071-17140
main71071-17150-01i198608-198803
*SPS,LEATHER,BLACK,BLACK,TRIM2#
sub71071-17150¥49,800
main71071-17150-01i198803-198808
W(LEATHER SEAT),BLACK,TRIM2#
sub71071-17150¥49,800
main71071-17150-01i198808-198912
W(LEATHER SEAT),BLACK,BLACK,TRIM2#
sub71071-17150¥49,800
71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
main71072-17040-01i198411-198608
FB,BLACK,BLACK,TRIM2#
main71072-17050-02i198411-198608
*SPS,FB,BLACK & RED,BLACK/RED,TRIM2#
main71072-17050-03i198411-198608
*SPS,FB,BLACK & GRAY,BLACK/GRAY,TRIM2#
main71072-17050-04i198411-198608
*SPS,FB,BLACK & SKY BLUE,BLACK/SKY BLUE,TRIM2#
main71072-17050-05i198411-198608
*SPS,FB,BLACK & BEIGE,BLACK/BEIGE,TRIM2#
main71072-17060-01i198411-198608
FB,BLACK,BLACK,TRIM2#
main71072-17070-02i198411-198608
*SPS,FB,BLACK & RED,BLACK/RED,TRIM2#
main71072-17070-03i198411-198608
*SPS,FB,BLACK & GRAY,BLACK/GRAY,TRIM2#
main71072-17070-04i198411-198608
*SPS,FB,BLACK & SKY BLUE,BLACK/SKY BLUE,TRIM2#
main71072-17070-05i198411-198608
*SPS,FB,BLACK & BEIGE,BLACK/BEIGE,TRIM2#
main71072-17100-01i198608-198803
FB,BLACK,BLACK,TRIM2#
main71072-17100-01i198803-198808
BLACK,TRIM2#
main71072-17100-04i198803-198808
DARK BLUE,TRIM8#
main71072-17100-04i198608-198803
FB,BLUE,DARK BLUE,TRIM8#
main71072-17100-05i198608-198803
FB,BEIGE,DARK BEIGE,TRIM4#
main71072-17100-05i198803-198808
DARK BEIGE,TRIM4#
main71072-17101-01i198808-198912
BLACK,TRIM2#
main71072-17101-04i198808-198912
DARK BLUE,TRIM8#
main71072-17110-01i198803-198808
BLACK,TRIM2#
main71072-17110-01i198608-198803
FB,BLACK,BLACK,TRIM2#
main71072-17110-04i198608-198803
FB,BLUE,DARK BLUE,TRIM8#
main71072-17110-04i198803-198808
DARK BLUE,TRIM8#
main71072-17110-05i198803-198808
DARK BEIGE,TRIM4#
main71072-17110-05i198608-198803
FB,BEIGE,DARK BEIGE,TRIM4#
main71072-17111-01i198808-198912
BLACK,TRIM2#
main71072-17111-04i198808-198912
DARK BLUE,TRIM8#
main71072-17120-01i198803-198808
W(SPORTS SEAT),BLACK,TRIM2#
main71072-17120-01i198608-198803
*SPS,FB,BLACK,BLACK,TRIM2#
main71072-17120-04i198803-198808
W(SPORTS SEAT),DARK BLUE,TRIM8#
main71072-17120-04i198608-198803
*SPS,FB,BLUE,DARK BLUE,TRIM8#
main71072-17120-05i198803-198808
W(SPORTS SEAT),DARK BEIGE,TRIM4#
main71072-17120-05i198608-198803
*SPS,FB,BEIGE,DARK BEIGE,TRIM4#
main71072-17121-01i198808-198912
W(SPORTS SEAT),BLACK,TRIM2#
main71072-17121-04i198808-198912
BLUE,TRIM8#
main71072-17130-01i198803-198808
W(SPORTS SEAT),BLACK,TRIM2#
main71072-17130-01i198608-198803
*SPS,FB,BLACK,BLACK,TRIM2#
main71072-17130-04i198608-198803
*SPS,FB,BLUE,DARK BLUE,TRIM8#
main71072-17130-04i198803-198808
W(SPORTS SEAT),DARK BLUE,TRIM8#
main71072-17130-05i198803-198808
W(SPORTS SEAT),DARK BEIGE,TRIM4#
main71072-17130-05i198608-198803
*SPS,FB,BEIGE,DARK BEIGE,TRIM4#
main71072-17131-01i198808-198912
W(SPORTS SEAT),BLACK,TRIM2#
main71072-17131-04i198808-198912
W(SPORTS SEAT),DARK BLUE,TRIM8#
main71072-17140-01i198803-198808
W(LEATHER SEAT),BLACK,TRIM2#
sub71072-17140
main71072-17140-01i198608-198803
*SPS,LEATHER,BLACK,BLACK,TRIM2#
sub71072-17140
main71072-17140-11i198808-198912
W(LEATHER SEAT),BLACK,TRIM2#
sub71072-17140
main71072-17150-01i198608-198803
*SPS,LEATHER,BLACK,BLACK,TRIM2#
sub71072-17150
main71072-17150-01i198803-198808
W(LEATHER SEAT),BLACK,TRIM2#
sub71072-17150
main71072-17150-11i198808-198912
W(LEATHER SEAT),BLACK,TRIM2#
sub71072-17150
71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71073-17040-01i198411-198608
FB,BLACK,BLACK,TRIM2#
main71073-17050-02i198411-198608
*SPS,FB,BLACK & RED,BLACK/RED,TRIM2#
main71073-17050-03i198411-198608
*SPS,FB,BLACK & GRAY,BLACK/GRAY,TRIM2#
main71073-17050-04i198411-198608
*SPS,FB,BLACK & SKY BLUE,BLACK/SKY BLUE,TRIM2#
main71073-17050-05i198411-198608
*SPS,FB,BLACK & BEIGE,BLACK/BEIGE,TRIM2#
main71073-17080-02i198411-198608
*SPS,FB,BLACK & RED,BLACK/RED,TRIM2#
main71073-17080-03i198411-198608
*SPS,FB,BLACK & GRAY,BLACK/GRAY,TRIM2#
main71073-17080-04i198411-198608
*SPS,FB,BLACK & SKY BLUE,BLACK/SKY BLUE,TRIM2#
main71073-17080-05i198411-198608
*SPS,FB,BLACK & BEIGE,BLACK/BEIGE,TRIM2#
main71073-17110-01i198608-198803
FB,BLACK,BLACK,TRIM2#
main71073-17110-01i198803-198808
BLACK,TRIM2#
main71073-17110-04i198608-198803
FB,BLUE,DARK BLUE,TRIM8#
main71073-17110-04i198803-198808
DARK BLUE,TRIM8#
main71073-17110-05i198608-198803
FB,BEIGE,DARK BEIGE,TRIM4#
main71073-17110-05i198803-198808
DARK BEIGE,TRIM4#
main71073-17111-01i198808-198912
BLACK,TRIM2#
sub71073-17121
main71073-17111-04i198808-198912
DARK BLUE,TRIM8#
sub71073-17121
main71073-17120-01i198803-198808
BLACK,TRIM2#
main71073-17120-01i198608-198803
FB,BLACK,BLACK,TRIM2#
main71073-17120-04i198608-198803
FB,BLUE,DARK BLUE,TRIM8#
main71073-17120-04i198803-198808
DARK BLUE,TRIM8#
main71073-17120-05i198608-198803
FB,BEIGE,DARK BEIGE,TRIM4#
main71073-17120-05i198803-198808
DARK BEIGE,TRIM4#
main71073-17121-01i198808-198912
BLACK,TRIM2#
main71073-17121-04i198808-198912
DARK BLUE,TRIM8#
main71073-17130-01i198803-198808
W(SPORTS SEAT),BLACK,TRIM2#
main71073-17130-01i198608-198803
*SPS,FB,BLACK,BLACK,TRIM2#
main71073-17130-04i198803-198808
W(SPORTS SEAT),DARK BLUE,TRIM8#
main71073-17130-04i198608-198803
*SPS,FB,BLUE,DARK BLUE,TRIM8#
main71073-17130-05i198803-198808
W(SPORTS SEAT),DARK BEIGE,TRIM4#
main71073-17130-05i198608-198803
*SPS,FB,BEIGE,DARK BEIGE,TRIM4#
main71073-17131-01i198808-198912
W(SPORTS SEAT),BLACK,TRIM2#
sub71073-17141
main71073-17131-04i198808-198912
W(SPORTS SEAT),DARK BLUE,TRIM8#
sub71073-17141
main71073-17140-01i198608-198803
*SPS,FB,BLACK,BLACK,TRIM2#
main71073-17140-01i198803-198808
W(SPORTS SEAT),BLACK,TRIM2#
main71073-17140-04i198803-198808
W(SPORTS SEAT),DARK BLUE,TRIM8#
main71073-17140-04i198608-198803
*SPS,FB,BLUE,DARK BLUE,TRIM8#
main71073-17140-05i198608-198803
*SPS,FB,BEIGE,DARK BEIGE,TRIM4#
main71073-17140-05i198803-198808
W(SPORTS SEAT),DARK BEIGE,TRIM4#
main71073-17141-01i198808-198912
W(SPORTS SEAT),BLACK,TRIM2#
main71073-17141-04i198808-198912
W(SPORTS SEAT),DARK BLUE,TRIM8#
main71073-17150-01i198608-198803
*SPS,LEATHER,BLACK,BLACK,TRIM2#
sub71073-17200
main71073-17150-01i198803-198808
W(LEATHER SEAT),BLACK,TRIM2#
sub71073-17200
main71073-17150-11i198808-198812
W(LEATHER SEAT),BLACK,TRIM2#
sub71073-17200
main71073-17160-01i198803-198808
BLACK,TRIM2#
main71073-17160-01i198608-198803
FB,BLACK,BLACK,TRIM2#
main71073-17160-04i198608-198803
FB,BLUE,DARK BLUE,TRIM8#
main71073-17160-04i198803-198808
DARK BLUE,TRIM8#
main71073-17160-05i198608-198803
FB,BEIGE,DARK BEIGE,TRIM4#
main71073-17160-05i198803-198808
DARK BEIGE,TRIM4#
main71073-17161-01i198808-198912
BLACK,TRIM2#
sub71073-17171
main71073-17161-04i198808-198912
DARK BLUE,TRIM8#
sub71073-17171
main71073-17170-01i198608-198803
FB,BLACK,BLACK,TRIM2#
main71073-17170-01i198803-198808
BLACK,TRIM2#
main71073-17170-04i198608-198803
FB,BLUE,DARK BLUE,TRIM8#
main71073-17170-04i198803-198808
DARK BLUE,TRIM8#
main71073-17170-05i198803-198808
DARK BEIGE,TRIM4#
main71073-17170-05i198608-198803
FB,BEIGE,DARK BEIGE,TRIM4#
main71073-17171-01i198808-198912
BLACK,TRIM2#
main71073-17171-04i198808-198912
DARK BLUE,TRIM8#
main71073-17180-01i198608-198803
*SPS,FB,BLACK,BLACK,TRIM2#
main71073-17180-01i198803-198808
W(SPORTS SEAT),BLACK,TRIM2#
main71073-17180-04i198608-198803
*SPS,FB,BLUE,DARK BLUE,TRIM8#
main71073-17180-04i198803-198808
W(SPORTS SEAT),DARK BLUE,TRIM8#
main71073-17180-05i198608-198803
*SPS,FB,BEIGE,DARK BEIGE,TRIM4#
main71073-17180-05i198803-198808
W(SPORTS SEAT),DARK BEIGE,TRIM4#
main71073-17181-01i198808-198912
W(SPORTS SEAT),BLACK,TRIM2#
sub71073-17191
main71073-17181-04i198808-198912
W(SPORTS SEAT),DARK BLUE,TRIM8#
sub71073-17191
main71073-17190-01i198608-198803
*SPS,FB,BLACK,BLACK,TRIM2#
main71073-17190-01i198803-198808
W(SPORTS SEAT),BLACK,TRIM2#
main71073-17190-04i198803-198808
W(SPORTS SEAT),DARK BLUE,TRIM8#
main71073-17190-04i198608-198803
*SPS,FB,BLUE,DARK BLUE,TRIM8#
main71073-17190-05i198803-198808
W(SPORTS SEAT),DARK BEIGE,TRIM4#
main71073-17190-05i198608-198803
*SPS,FB,BEIGE,DARK BEIGE,TRIM4#
main71073-17191-01i198808-198912
W(SPORTS SEAT),BLACK,TRIM2#
main71073-17191-04i198808-198912
W(SPORTS SEAT),DARK BLUE,TRIM8#
main71073-17200-01i198803-198808
W(LEATHER SEAT),BLACK,TRIM2#
sub71073-17200
main71073-17200-01i198608-198803
*SPS,LEATHER,BLACK,BLACK,TRIM2#
sub71073-17200
main71073-17200-11i198912-198912
BLACK,TRIM2#
sub71073-17200
main71073-17200-11i198808-198912
W(LEATHER SEAT),BLACK,TRIM2#
sub71073-17200
71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71074-17040-01i198411-198608
FB,BLACK,BLACK,TRIM2#
main71074-17050-02i198411-198608
*SPS,FB,BLACK & RED,BLACK/RED,TRIM2#
main71074-17050-03i198411-198608
*SPS,FB,BLACK & GRAY,BLACK/GRAY,TRIM2#
main71074-17050-04i198411-198608
*SPS,FB,BLACK & SKY BLUE,BLACK/SKY BLUE,TRIM2#
main71074-17050-05i198411-198608
*SPS,FB,BLACK & BEIGE,BLACK/BEIGE,TRIM2#
main71074-17080-02i198411-198608
*SPS,FB,BLACK & RED,BLACK/RED,TRIM2#
main71074-17080-03i198411-198608
*SPS,FB,BLACK & GRAY,BLACK/GRAY,TRIM2#
main71074-17080-04i198411-198608
*SPS,FB,BLACK & SKY BLUE,BLACK/SKY BLUE,TRIM2#
main71074-17080-05i198411-198608
*SPS,FB,BLACK & BEIGE,BLACK/BEIGE,TRIM2#
main71074-17110-01i198803-198808
BLACK,TRIM2#
main71074-17110-01i198608-198803
FB,BLACK,BLACK,TRIM2#
main71074-17110-04i198608-198803
FB,BLUE,DARK BLUE,TRIM8#
main71074-17110-04i198803-198808
DARK BLUE,TRIM8#
main71074-17110-05i198803-198808
DARK BEIGE,TRIM4#
main71074-17110-05i198608-198803
FB,BEIGE,DARK BEIGE,TRIM4#
main71074-17111-01i198808-198912
BLACK,TRIM2#
sub71074-17121
main71074-17111-04i198808-198912
DARK BLUE,TRIM8#
sub71074-17121
main71074-17120-01i198608-198803
FB,BLACK,BLACK,TRIM2#
main71074-17120-01i198803-198808
BLACK,TRIM2#
main71074-17120-04i198608-198803
FB,BLUE,DARK BLUE,TRIM8#
main71074-17120-04i198803-198808
DARK BLUE,TRIM8#
main71074-17120-05i198803-198808
DARK BEIGE,TRIM4#
main71074-17120-05i198608-198803
FB,BEIGE,DARK BEIGE,TRIM4#
main71074-17121-01i198808-198912
BLACK,TRIM2#
main71074-17121-04i198808-198912
DARK BLUE,TRIM8#
main71074-17130-01i198608-198803
*SPS,FB,BLACK,BLACK,TRIM2#
main71074-17130-01i198803-198808
W(SPORTS SEAT),BLACK,TRIM2#
main71074-17130-04i198803-198808
W(SPORTS SEAT),DARK BLUE,TRIM8#
main71074-17130-04i198608-198803
*SPS,FB,BLUE,DARK BLUE,TRIM8#
main71074-17130-05i198803-198808
W(SPORTS SEAT),DARK BEIGE,TRIM4#
main71074-17130-05i198608-198803
*SPS,FB,BEIGE,DARK BEIGE,TRIM4#
main71074-17131-01i198808-198912
W(SPORTS SEAT),BLACK,TRIM2#
sub71074-17141
main71074-17131-04i198808-198912
W(SPORTS SEAT),DARK BLUE,TRIM8#
sub71074-17141
main71074-17140-01i198608-198803
*SPS,FB,BLACK,BLACK,TRIM2#
main71074-17140-01i198803-198808
W(SPORTS SEAT),BLACK,TRIM2#
main71074-17140-04i198803-198808
W(SPORTS SEAT),DARK BLUE,TRIM8#
main71074-17140-04i198608-198803
*SPS,FB,BLUE,DARK BLUE,TRIM8#
main71074-17140-05i198803-198808
W(SPORTS SEAT),DARK BEIGE,TRIM4#
main71074-17140-05i198608-198803
*SPS,FB,BEIGE,DARK BEIGE,TRIM4#
main71074-17141-01i198808-198912
W(SPORTS SEAT),BLACK,TRIM2#
main71074-17141-04i198808-198912
W(SPORTS SEAT),DARK BLUE,TRIM8#
main71074-17150-01i198803-198808
W(LEATHER SEAT),BLACK,TRIM2#
sub71074-17200
main71074-17150-01i198608-198803
*SPS,LEATHER,BLACK,BLACK,TRIM2#
sub71074-17200
main71074-17150-11i198808-198812
W(LEATHER SEAT),BLACK,TRIM2#
sub71074-17200
main71074-17160-01i198803-198808
BLACK,TRIM2#
main71074-17160-01i198608-198803
FB,BLACK,BLACK,TRIM2#
main71074-17160-04i198803-198808
DARK BLUE,TRIM8#
main71074-17160-04i198608-198803
FB,BLUE,DARK BLUE,TRIM8#
main71074-17160-05i198608-198803
FB,BEIGE,DARK BEIGE,TRIM4#
main71074-17160-05i198803-198808
DARK BEIGE,TRIM4#
main71074-17161-01i198808-198912
BLACK,TRIM2#
sub71074-17171¥44,300
main71074-17161-04i198808-198912
DARK BLUE,TRIM8#
sub71074-17171¥44,300
main71074-17170-01i198803-198808
BLACK,TRIM2#
main71074-17170-01i198608-198803
FB,BLACK,BLACK,TRIM2#
main71074-17170-04i198608-198803
FB,BLUE,DARK BLUE,TRIM8#
main71074-17170-04i198803-198808
DARK BLUE,TRIM8#
main71074-17170-05i198803-198808
DARK BEIGE,TRIM4#
main71074-17170-05i198608-198803
FB,BEIGE,DARK BEIGE,TRIM4#
main71074-17171-01i198808-198912
BLACK,TRIM2#
main71074-17171-04i198808-198912
DARK BLUE,TRIM8#
main71074-17180-01i198608-198803
*SPS,FB,BLACK,BLACK,TRIM2#
main71074-17180-01i198803-198808
W(SPORTS SEAT),BLACK,TRIM2#
main71074-17180-04i198608-198803
*SPS,FB,BLUE,DARK BLUE,TRIM8#
main71074-17180-04i198803-198808
W(SPORTS SEAT),DARK BLUE,TRIM8#
main71074-17180-05i198803-198808
W(SPORTS SEAT),DARK BEIGE,TRIM4#
main71074-17180-05i198608-198803
*SPS,FB,BEIGE,DARK BEIGE,TRIM4#
main71074-17181-01i198808-198912
W(SPORTS SEAT),BLACK,TRIM2#
sub71074-17191¥51,900
main71074-17181-04i198808-198912
W(SPORTS SEAT),DARK BLUE,TRIM8#
sub71074-17191¥51,900
main71074-17190-01i198803-198808
W(SPORTS SEAT),BLACK,TRIM2#
main71074-17190-01i198608-198803
*SPS,FB,BLACK,BLACK,TRIM2#
main71074-17190-04i198608-198803
*SPS,FB,BLUE,DARK BLUE,TRIM8#
main71074-17190-04i198803-198808
W(SPORTS SEAT),DARK BLUE,TRIM8#
main71074-17190-05i198608-198803
*SPS,FB,BEIGE,DARK BEIGE,TRIM4#
main71074-17190-05i198803-198808
W(SPORTS SEAT),DARK BEIGE,TRIM4#
main71074-17191-01i198808-198912
W(SPORTS SEAT),BLACK,TRIM2#
main71074-17191-04i198808-198912
W(SPORTS SEAT),DARK BLUE,TRIM8#
main71074-17200-01i198803-198808
W(LEATHER SEAT),BLACK,TRIM2#
sub71074-17200
main71074-17200-01i198608-198803
*SPS,LEATHER,BLACK,BLACK,TRIM2#
sub71074-17200
main71074-17200-11i198808-198912
W(LEATHER SEAT),BLACK,TRIM2#
sub71074-17200
main71074-17200-11i198912-198912
BLACK,TRIM2#
sub71074-17200
71311BBUSH (FOR FRONT SEAT HINGE PIN)
main90386-12027i¥340198411-198912
71410SCUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
main71410-17060-01i198411-198608
FB,BLACK,BLACK,TRIM2#
main71410-17070-02i198411-198608
*SPS,FB,BLACK & RED,BLACK/RED,TRIM2#
main71410-17070-03i198411-198608
*SPS,FB,BLACK & GRAY,BLACK/GRAY,TRIM2#
main71410-17070-04i198411-198608
*SPS,FB,BLACK & SKY BLUE,BLACK/SKY BLUE,TRIM2#
main71410-17070-05i198411-198608
*SPS,FB,BLACK & BEIGE,BLACK/BEIGE,TRIM2#
main71410-17080-01i198411-198608
FB,BLACK,BLACK,TRIM2#
main71410-17090-02i198411-198608
*SPS,FB,BLACK & RED,BLACK/RED,TRIM2#
main71410-17090-03i198411-198608
*SPS,FB,BLACK & GRAY,BLACK/GRAY,TRIM2#
main71410-17090-04i198411-198608
*SPS,FB,BLACK & SKY BLUE,BLACK/SKY BLUE,TRIM2#
main71410-17090-05i198411-198608
*SPS,FB,BLACK & BEIGE,BLACK/BEIGE,TRIM2#
main71410-17150-01i198608-198803
FB,BLACK,BLACK,TRIM2#
main71410-17150-01i198803-198808
BLACK,TRIM2#
main71410-17150-04i198608-198803
FB,BLUE,DARK BLUE,TRIM8#
main71410-17150-04i198803-198808
DARK BLUE,TRIM8#
main71410-17150-05i198608-198803
FB,BEIGE,DARK BEIGE,TRIM4#
main71410-17150-05i198803-198808
DARK BEIGE,TRIM4#
main71410-17151-01i198808-198912
BLACK,TRIM2#
main71410-17151-04i198808-198912
DARK BLUE,TRIM8#
main71410-17160-01i198803-198808
BLACK,TRIM2#
main71410-17160-01i198608-198803
FB,BLACK,BLACK,TRIM2#
main71410-17160-04i198608-198803
FB,BLUE,DARK BLUE,TRIM8#
main71410-17160-04i198803-198808
DARK BLUE,TRIM8#
main71410-17160-05i198803-198808
DARK BEIGE,TRIM4#
main71410-17160-05i198608-198803
FB,BEIGE,DARK BEIGE,TRIM4#
main71410-17161-01i198808-198912
BLACK,TRIM2#
main71410-17161-04i198808-198912
DARK BLUE,TRIM8#
main71410-17170-01i198803-198808
W(SPORTS SEAT),BLACK,TRIM2#
main71410-17170-01i198608-198803
*SPS,FB,BLACK,BLACK,TRIM2#
main71410-17170-04i198803-198808
W(SPORTS SEAT),DARK BLUE,TRIM8#
main71410-17170-04i198608-198803
*SPS,FB,BLUE,DARK BLUE,TRIM8#
main71410-17170-05i198608-198803
*SPS,FB,BEIGE,DARK BEIGE,TRIM4#
main71410-17170-05i198803-198808
W(SPORTS SEAT),DARK BEIGE,TRIM4#
main71410-17171-01i198808-198912
W(SPORTS SEAT),BLACK,TRIM2#
main71410-17171-04i198808-198912
W(SPORTS SEAT),DARK BLUE,TRIM8#
main71410-17180-01i198608-198803
*SPS,FB,BLACK,BLACK,TRIM2#
main71410-17180-01i198803-198808
W(SPORTS SEAT),BLACK,TRIM2#
main71410-17180-04i198608-198803
*SPS,FB,BLUE,DARK BLUE,TRIM8#
main71410-17180-04i198803-198808
W(SPORTS SEAT),DARK BLUE,TRIM8#
main71410-17180-05i198608-198803
*SPS,FB,BEIGE,DARK BEIGE,TRIM4#
main71410-17180-05i198803-198808
W(SPORTS SEAT),DARK BEIGE,TRIM4#
main71410-17181-01i198808-198912
W(SPORTS SEAT),BLACK,TRIM2#
main71410-17181-04i198808-198912
W(SPORTS SEAT),DARK BLUE,TRIM8#
main71410-17190-01i198803-198808
W(LEATHER SEAT),BLACK,TRIM2#
sub71410-17190
main71410-17190-01i198608-198803
*SPS,LEATHER,BLACK,BLACK,TRIM2#
sub71410-17190
main71410-17190-11i198808-198912
W(LEATHER SEAT),BLACK,TRIM2#
sub71410-17190
main71410-17200-01i198608-198803
*SPS,LEATHER,BLACK,BLACK,TRIM2#
sub71410-17200
main71410-17200-01i198803-198808
W(LEATHER SEAT),BLACK,TRIM2#
sub71410-17200
main71410-17200-11i198808-198912
W(LEATHER SEAT),BLACK,TRIM2#
sub71410-17200
71420SCUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)
main71420-17060-01i198411-198608
FB,BLACK,BLACK,TRIM2#
main71420-17070-02i198411-198608
*SPS,FB,BLACK & RED,BLACK/RED,TRIM2#
main71420-17070-03i198411-198608
*SPS,FB,BLACK & GRAY,BLACK/GRAY,TRIM2#
main71420-17070-04i198411-198608
*SPS,FB,BLACK & SKY BLUE,BLACK/SKY BLUE,TRIM2#
main71420-17070-05i198411-198608
*SPS,FB,BLACK & BEIGE,BLACK/BEIGE,TRIM2#
main71420-17080-01i198411-198608
FB,BLACK,BLACK,TRIM2#
main71420-17090-02i198411-198608
*SPS,FB,BLACK & RED,BLACK/RED,TRIM2#
main71420-17090-03i198411-198608
*SPS,FB,BLACK & GRAY,BLACK/GRAY,TRIM2#
main71420-17090-04i198411-198608
*SPS,FB,BLACK & SKY BLUE,BLACK/SKY BLUE,TRIM2#
main71420-17090-05i198411-198608
*SPS,FB,BLACK & BEIGE,BLACK/BEIGE,TRIM2#
main71420-17150-01i198803-198808
BLACK,TRIM2#
main71420-17150-01i198608-198803
FB,BLACK,BLACK,TRIM2#
main71420-17150-04i198608-198803
FB,BLUE,DARK BLUE,TRIM8#
main71420-17150-04i198803-198808
DARK BLUE,TRIM8#
main71420-17150-05i198608-198803
FB,BEIGE,DARK BEIGE,TRIM4#
main71420-17150-05i198803-198808
DARK BEIGE,TRIM8#
main71420-17151-01i198808-198912
BLACK,TRIM2#
main71420-17151-04i198808-198912
DARK BLUE,TRIM8#
main71420-17160-01i198608-198803
FB,BLACK,BLACK,TRIM2#
main71420-17160-01i198803-198808
BLACK,TRIM2#
main71420-17160-04i198803-198808
DARK BLUE,TRIM8#
main71420-17160-04i198608-198803
FB,BLUE,DARK BLUE,TRIM8#
main71420-17160-05i198608-198803
FB,BEIGE,DARK BEIGE,TRIM4#
main71420-17160-05i198803-198808
DARK BEIGE,TRIM4#
main71420-17161-01i198808-198912
BLACK,TRIM2#
main71420-17170-01i198803-198808
BLACK,TRIM4#
main71420-17170-01i198608-198803
*SPS,FB,BLACK,BLACK,TRIM2#
main71420-17170-04i198608-198803
*SPS,FB,BLUE,DARK BLUE,TRIM8#
main71420-17170-04i198803-198808
W(SPORTS SEAT),DARK BLUE,TRIM8#
main71420-17170-05i198608-198803
*SPS,FB,BEIGE,DARK BEIGE,TRIM4#
main71420-17170-05i198803-198808
DARK BEIGE,TRIM4#
main71420-17171-01i198808-198912
W(SPORTS SEAT),BLACK,TRIM2#
main71420-17171-04i198808-198912
W(SPORTS SEAT),DARK BLUE,TRIM8#
main71420-17180-01i198608-198803
*SPS,FB,BLACK,BLACK,TRIM2#
main71420-17180-01i198803-198808
W(SPORTS SEAT),BLACK,TRIM2#
main71420-17180-04i198803-198808
W(SPORTS SEAT),DARK BLUE,TRIM8#
main71420-17180-04i198608-198803
*SPS,FB,BLUE,DARK BLUE,TRIM8#
main71420-17180-05i198803-198808
W(SPORTS SEAT),DARK BEIGE,TRIM4#
main71420-17180-05i198608-198803
*SPS,FB,BEIGE,DARK BEIGE,TRIM4#
main71420-17181-01i198808-198912
W(SPORTS SEAT),BLACK,TRIM2#
main71420-17181-04i198808-198912
BLUE,TRIM8#
main71420-17190-01i198803-198808
W(LEATHER SEAT),BLACK,TRIM2#
sub71420-17190
main71420-17190-01i198608-198803
*SPS,LEATHER,BLACK,BLACK,TRIM2#
sub71420-17190
main71420-17190-11i198808-198912
W(LEATHER SEAT),BLACK,TRIM2#
sub71420-17190
main71420-17200-01i198608-198803
*SPS,LEATHER,BLACK,BLACK,TRIM2#
sub71420-17200
main71420-17200-01i198803-198808
W(LEATHER SEAT),BLACK,TRIM2#
sub71420-17200
main71420-17200-11i198808-198912
W(LEATHER SEAT),BLACK,TRIM2#
sub71420-17200
71430SBACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
main71430-17050-02i198411-198608
*SPS,FB,BLACK & RED,BLACK/RED,TRIM2#
main71430-17050-03i198411-198608
*SPS,FB,BLACK & GRAY,BLACK/GRAY,TRIM2#
main71430-17050-04i198411-198608
*SPS,FB,BLACK & SKY BLUE,BLACK/SKY BLUE,TRIM2#
main71430-17050-05i198411-198608
*SPS,FB,BLACK & BEIGE,BLACK/BEIGE,TRIM2#
main71430-17060-01i198411-198608
FB,BLACK,BLACK,TRIM2#
main71430-17100-02i198411-198608
*SPS,FB,BLACK & RED,BLACK/RED,TRIM2#
main71430-17100-03i198411-198608
*SPS,FB,BLACK & GRAY,BLACK/GRAY,TRIM2#
main71430-17100-04i198411-198608
*SPS,FB,BLACK & SKY BLUE,BLACK/SKY BLUE,TRIM2#
main71430-17100-05i198411-198608
*SPS,FB,BLACK & BEIGE,BLACK/BEIGE,TRIM2#
main71430-17150-01i198608-198803
FB,BLACK,BLACK,TRIM2#
main71430-17150-01i198803-198808
BLACK,TRIM2#
main71430-17150-04i198803-198808
DARK BLUE,TRIM8#
main71430-17150-04i198608-198803
FB,BLUE,DARK BLUE,TRIM8#
main71430-17150-05i198608-198803
FB,BEIGE,DARK BEIGE,TRIM4#
main71430-17150-05i198803-198808
DARK BEIGE,TRIM4#
main71430-17151-01i198808-198912
BLACK,TRIM2#
main71430-17151-04i198808-198912
DARK BLUE,TRIM8#
main71430-17170-01i198608-198803
*SPS,FB,BLACK,BLACK,TRIM2#
main71430-17170-01i198803-198808
W(SPORTS SEAT),BLACK,TRIM2#
main71430-17170-04i198608-198803
*SPS,FB,BLUE,DARK BLUE,TRIM8#
main71430-17170-04i198803-198808
W(SPORTS SEAT),DARK BLUE,TRIM8#
main71430-17170-05i198608-198803
*SPS,FB,BEIGE,DARK BEIGE,TRIM4#
main71430-17170-05i198803-198808
W(SPORTS SEAT),DARK BEIGE,TRIM4#
main71430-17171-01i198808-198912
W(SPORTS SEAT),BLACK,TRIM2#
main71430-17171-04i198808-198912
W(SPORTS SEAT),DARK BLUE,TRIM8#
main71430-17180-01i198803-198808
W(SPORTS SEAT),BLACK,TRIM2#
main71430-17180-01i198608-198803
*SPS,FB,BLACK,BLACK,TRIM2#
main71430-17180-04i198608-198803
*SPS,FB,BLUE,DARK BLUE,TRIM8#
main71430-17180-04i198803-198808
W(SPORTS SEAT),DARK BLUE,TRIM8#
main71430-17180-05i198803-198808
W(SPORTS SEAT),DARK BEIGE,TRIM4#
main71430-17180-05i198608-198803
*SPS,FB,BEIGE,DARK BEIGE,TRIM4#
main71430-17181-01i198808-198912
W(SPORTS SEAT),BLACK,TRIM2#
main71430-17181-04i198808-198912
W(SPORTS SEAT),DARK BLUE,TRIM8#
main71430-17190-01i198803-198808
W(LEATHER SEAT),BLACK,TRIM2#
sub71430-17270
main71430-17190-01i198608-198803
*SPS,LEATHER,BLACK,BLACK,TRIM2#
sub71430-17270
main71430-17190-11i198808-198812
W(LEATHER SEAT),BLACK,TRIM2#
sub71430-17270
main71430-17200-01i198803-198808
W(LEATHER SEAT),BLACK,TRIM2#
sub71430-17280
main71430-17200-01i198608-198803
*SPS,LEATHER,BLACK,BLACK,TRIM2#
sub71430-17280
main71430-17200-11i198808-198812
W(LEATHER SEAT),BLACK,TRIM2#
sub71430-17280
main71430-17210-01i198803-198808
BLACK,TRIM2#
main71430-17210-01i198608-198803
FB,BLACK,BLACK,TRIM2#
main71430-17210-04i198803-198808
DARK BLUE,TRIM8#
main71430-17210-04i198608-198803
FB,BLUE,DARK BLUE,TRIM8#
main71430-17210-05i198803-198808
DARK BEIGE,TRIM4#
main71430-17210-05i198608-198803
FB,BEIGE,DARK BEIGE,TRIM4#
main71430-17211-01i198808-198912
BLACK,TRIM2#
main71430-17211-04i198808-198912
DARK BLUE,TRIM8#
main71430-17220-01i198608-198803
FB,BLACK,BLACK,TRIM2#
main71430-17220-01i198803-198808
BLACK,TRIM2#
main71430-17220-04i198608-198803
FB,BLUE,DARK BLUE,TRIM8#
main71430-17220-04i198803-198808
DARK BLUE,TRIM8#
main71430-17220-05i198803-198808
DARK BEIGE,TRIM4#
main71430-17220-05i198608-198803
FB,BEIGE,DARK BEIGE,TRIM4#
main71430-17221-01i198808-198912
BLACK,TRIM2#
main71430-17221-04i198808-198912
DARK BLUE,TRIM8#
main71430-17240-01i198803-198808
BLACK,TRIM2#
main71430-17240-01i198608-198803
FB,BLACK,BLACK,TRIM2#
main71430-17240-04i198608-198803
FB,BLUE,DARK BLUE,TRIM8#
main71430-17240-04i198803-198808
DARK BLUE,TRIM8#
main71430-17240-05i198803-198808
DARK BEIGE,TRIM4#
main71430-17240-05i198608-198803
FB,BEIGE,DARK BEIGE,TRIM4#
main71430-17241-01i198808-198912
BLACK,TRIM2#
main71430-17241-04i198808-198912
DARK BLUE,TRIM8#
main71430-17250-01i198608-198803
*SPS,FB,BLACK,BLACK,TRIM2#
main71430-17250-01i198803-198808
W(SPORTS SEAT),BLACK,TRIM2#
main71430-17250-04i198608-198803
*SPS,FB,BLUE,DARK BLUE,TRIM8#
main71430-17250-04i198803-198808
W(SPORTS SEAT),DARK BLUE,TRIM8#
main71430-17250-05i198803-198808
DARK BEIGE,TRIM8#
main71430-17250-05i198608-198803
*SPS,FB,BEIGE,DARK BEIGE,TRIM4#
main71430-17251-01i198808-198912
W(SPORTS SEAT),BLACK,TRIM2#
main71430-17251-04i198808-198912
W(SPORTS SEAT),DARK BLUE,TRIM8#
main71430-17260-01i198803-198808
W(SPORTS SEAT),BLACK,TRIM2#
main71430-17260-01i198608-198803
*SPS,FB,BLACK,BLACK,TRIM2#
main71430-17260-04i198608-198803
*SPS,FB,BLUE,DARK BLUE,TRIM8#
main71430-17260-04i198803-198808
W(SPORTS SEAT),DARK BLUE,TRIM8#
main71430-17260-05i198608-198803
*SPS,FB,BEIGE,DARK BEIGE,TRIM4#
main71430-17260-05i198803-198808
W(SPORTS SEAT),DARK BEIGE,TRIM4#
main71430-17261-01i198808-198912
W(SPORTS SEAT),BLACK,TRIM2#
main71430-17261-04i198808-198912
W(SPORTS SEAT),DARK BLUE,TRIM8#
main71430-17270-01i198803-198808
W(LEATHER SEAT),BLACK,TRIM2#
sub71430-17270
main71430-17270-01i198608-198803
*SPS,LEATHER,BLACK,BLACK,TRIM2#
sub71430-17270
main71430-17270-11i198808-198912
W(LEATHER SEAT),BLACK,TRIM2#
sub71430-17270
main71430-17270-11i198912-198912
BLACK,TRIM2#
sub71430-17270
main71430-17280-01i198608-198803
*SPS,LEATHER,BLACK,BLACK,TRIM2#
sub71430-17280
main71430-17280-01i198803-198808
W(LEATHER SEAT),BLACK,TRIM2#
sub71430-17280
main71430-17280-11i198808-198912
W(LEATHER SEAT),BLACK,TRIM2#
sub71430-17280
main71430-17280-11i198912-198912
BLACK,TRIM2#
sub71430-17280
71440SBACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)
main71440-17050-02i198411-198608
*SPS,FB,BLACK & RED,BLACK/RED,TRIM2#
main71440-17050-03i198411-198608
*SPS,FB,BLACK & GRAY,BLACK/GRAY,TRIM2#
main71440-17050-04i198411-198608
*SPS,FB,BLACK & SKY BLUE,BLACK/SKY BLUE,TRIM2#
main71440-17050-05i198411-198608
*SPS,FB,BLACK & BEIGE,BLACK/BEIGE,TRIM2#
main71440-17060-01i198411-198608
FB,BLACK,BLACK,TRIM2#
main71440-17100-02i198411-198608
*SPS,FB,BLACK &RED,BLACK/RED,TRIM2#
main71440-17100-03i198411-198608
*SPS,FB,BLACK & GRAY,BLACK/GRAY,TRIM2#
main71440-17100-04i198411-198608
*SPS,FB,BLACK & SKY BLUE,BLACK/SKY BLUE,TRIM2#
main71440-17100-05i198411-198608
*SPS,FB,BLACK & BEIGE,BLACK/BEIGE,TRIM2#
main71440-17150-01i198803-198808
BLACK,TRIM2#
main71440-17150-01i198608-198803
FB,BLACK,BLACK,TRIM2#
main71440-17150-04i198803-198808
DARK BLUE,TRIM8#
main71440-17150-04i198608-198803
FB,BLUE,DARK BLUE,TRIM8#
main71440-17150-05i198608-198803
FB,BEIGE,DARK BEIGE,TRIM4#
main71440-17150-05i198803-198808
DARK BEIGE,TRIM4#
main71440-17151-01i198808-198912
BLACK,TRIM2#
main71440-17151-04i198808-198912
DARK BLUE,TRIM8#
main71440-17170-01i198803-198808
W(SPORTS SEAT),BLACK,TRIM2#
main71440-17170-01i198608-198803
*SPS,FB,BLACK,BLACK,TRIM2#
main71440-17170-04i198803-198808
W(SPORTS SEAT),DARK BLUE,TRIM8#
main71440-17170-04i198608-198803
*SPS,FB,BLUE,DARK BLUE,TRIM8#
main71440-17170-05i198803-198808
W(SPORTS SEAT),DARK BEIGE,TRIM4#
main71440-17170-05i198608-198803
*SPS,FB,BEIGE,DARK BEIGE,TRIM4#
main71440-17171-01i198808-198912
W(SPORTS SEAT),BLACK,TRIM2#
main71440-17171-04i198808-198912
W(SPORTS SEAT),DARK BLUE,TRIM8#
main71440-17180-01i198608-198803
*SPS,FB,BLACK,BLACK,TRIM2#
main71440-17180-01i198803-198808
W(SPORTS SEAT),BLACK,TRIM2#
main71440-17180-04i198803-198808
W(SPORTS SEAT),DARK BLUE,TRIM8#
main71440-17180-04i198608-198803
*SPS,FB,BLUE,DARK BLUE,TRIM8#
main71440-17180-05i198608-198803
*SPS,FB,BEIGE,DARK BEIGE,TRIM4#
main71440-17180-05i198803-198808
DARK BEIGE,TRIM8#
main71440-17181-01i198808-198912
W(SPORTS SEAT),BLACK,TRIM2#
main71440-17181-04i198808-198912
W(SPORTS SEAT),DARK BLUE,TRIM8#
main71440-17190-01i198803-198808
W(LEATH SEAT),BLACK,TRIM2#
sub71440-17270
main71440-17190-01i198608-198803
*SPS,LEATHER,BLACK,BLACK,TRIM2#
sub71440-17270
main71440-17190-11i198808-198812
W(LEATHER SEAT),BLACK,TRIM2#
sub71440-17270
main71440-17200-01i198803-198808
W(LEATHER SEAT),BLACK,TRIM2#
sub71440-17280
main71440-17200-01i198608-198803
*SPS,LEATHER,BLACK,BLACK,TRIM2#
sub71440-17280
main71440-17200-11i198808-198812
W(LEATHER SEAT),BLACK,TRIM2#
sub71440-17280
main71440-17210-01i198608-198803
FB,BLACK,BLACK,TRIM2#
main71440-17210-01i198803-198808
BLACK,TRIM2#
main71440-17210-04i198608-198803
FB,BLUE,DARK BLUE,TRIM8#
main71440-17210-04i198803-198808
DARK BLUE,TRIM8#
main71440-17210-05i198803-198808
DARK BEIGE,TRIM4#
main71440-17210-05i198608-198803
FB,BEIGE,DARK BEIGE,TRIM4#
main71440-17211-01i198808-198912
BLACK,TRIM2#
main71440-17211-04i198808-198912
DARK BLUE,TRIM8#
main71440-17220-01i198608-198803
FB,BLACK,BLACK,TRIM2#
main71440-17220-01i198803-198808
BLACK,TRIM2#
main71440-17220-04i198803-198808
DARK BLUE,TRIM8#
main71440-17220-04i198608-198803
FB,BLUE,DARK BLUE,TRIM8#
main71440-17220-05i198608-198803
FB,BEIGE,DARK BEIGE,TRIM4#
main71440-17220-05i198803-198808
DARK BEIGE,TRIM4#
main71440-17221-01i198808-198912
BLACK,TRIM2#
main71440-17221-04i198808-198912
DARK BLUE,TRIM8#
main71440-17240-01i198608-198803
FB,BLACK,BLACK,TRIM2#
main71440-17240-01i198803-198808
BLACK,TRIM2#
main71440-17240-04i198608-198803
FB,BLUE,DARK BLUE,TRIM8#
main71440-17240-04i198803-198808
DARK BLUE,TRIM8#
main71440-17240-05i198803-198808
DARK BEIGE,TRIM4#
main71440-17240-05i198608-198803
FB,BEIGE,DARK BEIGE,TRIM4#
main71440-17241-01i198808-198912
BLACK,TRIM2#
main71440-17241-04i198808-198912
DARK BLUE,TRIM8#
main71440-17250-01i198608-198803
*SPS,FB,BLACK,BLACK,TRIM2#
main71440-17250-01i198803-198808
W(SPORTS SEAT),BLACK,TRIM2#
main71440-17250-04i198608-198803
*SPS,FB,BLUE,DARK BLUE,TRIM8#
main71440-17250-04i198803-198808
W(SPORTS SEAT),DARK BLUE,TRIM8#
main71440-17250-05i198803-198808
W(SPORTS SEAT),DARK BEIGE,TRIM4#
main71440-17250-05i198608-198803
*SPS,FB,BEIGE,DARK BEIGE,TRIM4#
main71440-17251-01i198808-198912
W(SPORTS SEAT),BLACK,TRIM2#
main71440-17251-04i198808-198912
W(SPORTS SEAT),DARK BLUE,TRIM8#
main71440-17260-01i198608-198803
*SPS,FB,BLACK,BLACK,TRIM2#
main71440-17260-01i198803-198808
W(SPORTS SEAT),BLACK,TRIM2#
main71440-17260-04i198803-198808
W(SPORTS SEAT),DARK BLUE,TRIM8#
main71440-17260-04i198608-198803
*SPS,FB,BLUE,DARK BLUE,TRIM8#
main71440-17260-05i198803-198808
W(SPORTS SEAT),DARK BEIGE,TRIM4#
main71440-17260-05i198608-198803
*SPS,FB,BEIGE,DARK BEIGE,TRIM4#
main71440-17261-01i198808-198912
W(SPORTS SEAT),BLACK,TRIM2#
main71440-17261-04i198808-198912
W(SPORTS SEAT),DARK BLUE,TRIM8#
main71440-17270-01i198608-198803
*SPS,LEATHER,BLACK,BLACK,TRIM2#
sub71440-17270
main71440-17270-01i198803-198808
W(LEATHER SEAT),BLACK,TRIM2#
sub71440-17270
main71440-17270-11i198808-198912
W(LEATHER SEAT),BLACK,TRIM2#
sub71440-17270
main71440-17270-11i198912-198912
BLACK,TRIM2#
sub71440-17270
main71440-17280-01i198803-198808
W(LEATHER SEAT),BLACK,TRIM2#
sub71440-17280
main71440-17280-01i198608-198803
*SPS,LEATHER,BLACK,BLACK,TRIM2#
sub71440-17280
main71440-17280-11i198808-198912
W(LEATHER SEAT),BLACK,TRIM2#
sub71440-17280
main71440-17280-11i198912-198912
BLACK,TRIM2#
sub71440-17280
71505PAD SUB-ASSY, FRONT SEATBACK W/FRAME, RH
main71505-17010i¥23,800198411-198912
main71505-17030i198803-198912
W(SPORTS SEAT)
main71505-17030i198411-198803
*SPS
main71505-17030i198803-198912
W(SPORTS SEAT) OR W(LEATHER SEAT)
main71505-17050i¥23,800198411-198803
*SPS
main71505-17050i¥23,800198803-198912
W(SPORTS SEAT) OR W(LEATHER SEAT)
main71505-17050i¥23,800198803-198912
W(SPORTS SEAT)
71506PAD SUB-ASSY, FRONT SEATBACK W/FRAME, LH
main71506-17010i¥34,400198411-198912
main71506-17030i¥34,400198803-198912
W(SPORTS SEAT)
main71506-17030i¥34,400198411-198803
*SPS
main71506-17030i¥34,400198803-198912
W(SPORTS SEAT) OR W(LEATHER SEAT)
main71506-17040i198803-198912
W(SPORTS SEAT)
main71506-17040i198411-198803
*SPS
main71506-17040i198803-198912
W(SPORTS SEAT) OR W(LEATHER SEAT)
71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71511-17010i¥23,800198411-198912
main71511-17020i198411-198608
main71511-17040i¥28,600198803-198912
W(SPORTS SEAT) OR W(LEATHER SEAT)
main71511-17040i¥28,600198411-198803
*SPS
main71511-17040i¥28,600198803-198912
W(SPORTS SEAT)
main71511-17050i¥28,300198411-198608
*SPS
main71511-17060i¥18,300198608-198912
main71511-17070i¥18,300198803-198912
W(SPORTS SEAT) OR W(LEATHER SEAT)
main71511-17070i¥18,300198803-198912
W(SPORTS SEAT)
main71511-17070i¥18,300198608-198803
*SPS
71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
main71512-17010i198411-198608
main71512-17020i198411-198912
main71512-17040i198411-198608
*SPS
main71512-17050i¥28,600198411-198803
*SPS
main71512-17050i¥28,600198803-198912
W(SPORTS SEAT)
main71512-17050i¥28,600198803-198912
W(SPORTS SEAT) OR W(LEATHER SEAT)
main71512-17060i¥18,300198608-198912
main71512-17070i¥18,300198803-198912
W(SPORTS SEAT)
main71512-17070i¥18,300198803-198912
W(SPORTS SEAT) OR W(LEATHER SEAT)
main71512-17070i¥18,300198608-198803
*SPS
71610SSPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71610-12170i198411-198605
main71610-12260i198605-198912
main71610-17010i198605-198912
main71610-17020i198411-198605
71620SSPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
main71620-12170i198411-198605
main71620-12200i198605-198912
main71620-17010i198411-198605
main71620-17020i¥19,700198605-198912
71811DSHIELD, FRONT SEAT CUSHION, RH
main71811-14060-01i198411-198803
BLACK,BLACK,TRIM2#
sub71811-14060¥2,350
main71811-14060-01i198803-198808
BLACK,TRIM2#
sub71811-14060¥2,350
main71811-14060-05i198608-198803
BEIGE,DARK BEIGE,TRIM4#
sub71811-14060¥2,350
main71811-14060-05i198803-198808
DARK BEIGE,TRIM4#
sub71811-14060¥2,350
main71811-14060-11i198808-198912
BLACK,TRIM2#
sub71811-14060¥2,350
main71811-14060-14i198608-198803
BLUE,DARK BLUE,TRIM8#
sub71811-14060¥2,350
main71811-14060-14i198803-198912
DARK BLUE,TRIM8#
sub71811-14060¥2,350
main71811-17010-01i198411-198803
BLACK,BLACK,TRIM2#
sub71811-17010¥2,860
main71811-17010-01i198803-198808
BLACK,TRIM2#
sub71811-17010¥2,860
main71811-17010-05i198803-198808
DARK BEIGE,TRIM4#
sub71811-17010¥2,860
main71811-17010-05i198608-198803
BEIGE,DARK BEIGE,TRIM4#
sub71811-17010¥2,860
main71811-17010-11i198808-198912
BLACK,TRIM2#
sub71811-17010¥2,860
main71811-17010-14i198803-198912
DARK BLUE,TRIM8#
sub71811-17010¥2,860
main71811-17010-14i198608-198803
BLUE,DARK BLUE,TRIM8#
sub71811-17010¥2,860
71812ARING, HOG, SMALL (FOR FRONT SEAT)
main90468-18071i¥160198411-198912
sub90468-18008¥80
71812DSHIELD, FRONT SEAT CUSHION, LH
main71812-14070-01i198411-198803
BLACK,BLACK,TRIM2#
sub71812-14070¥2,470
main71812-14070-01i198803-198808
BLACK,TRIM2#
sub71812-14070¥2,470
main71812-14070-11i198808-198912
BLACK,TRIM2#
sub71812-14070¥2,470
main71812-14070-15i198608-198803
BEIGE,DARK BEIGE,TRIM4#
sub71812-14070¥2,470
main71812-14070-15i198803-198808
DARK BEIGE,TRIM4#
sub71812-14070¥2,470
main71812-14070-44i198803-198912
DARK BLUE,TRIM8#
sub71812-14070¥2,470
main71812-14070-44i198608-198803
BLUE,DARK BLUE,TRIM8#
sub71812-14070¥2,470
main71812-17010-01i198803-198808
BLACK,TRIM2#
main71812-17010-01i198411-198803
BLACK,BLACK,TRIM2#
main71812-17010-04i198803-198912
DARK BEIGE,TRIM8#
main71812-17010-04i198608-198803
BLUE,DARK BEIGE,TRIM8#
main71812-17010-05i198608-198803
BEIGE,DARK BLUE,TRIM4#
main71812-17010-05i198803-198808
DARK BLUE,TRIM4#
main71812-17010-11i198808-198912
BLACK,TRIM2#
72011ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH
main72010-17020i¥29,000198411-198608
sub72010-17060¥20,100
main72010-17030i¥26,200198411-198608
sub72010-17070¥26,400
main72010-17060i¥20,100198608-198912
main72010-17070i¥26,400198608-198912
main72010-17080i198708-198912
72011ASPRING, TENSION (FOR FRONT SEAT ADJUSTER OUTER)
main90506-18015i¥360198411-198912
72012ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH
main72020-17020i¥29,000198411-198608
sub72020-17060¥20,100
main72020-17030i¥26,200198411-198608
sub72020-17070¥26,400
main72020-17060i¥20,100198608-198912
main72020-17070i¥26,400198608-198912
main72020-17080i198708-198912
72110ESPRING, TENSION, NO.1 (FOR SEAT TRACK)
main90506-18020i¥540198411-198912
72130TRACK ASSY, RH SEAT, INNER
main72130-17020i¥10,200198411-198912
main72130-17030i¥12,700198411-198912
main72130-17050i¥12,700198708-198912
72140TRACK ASSY, LH SEAT, INNER
main72140-17020i¥10,200198411-198912
main72140-17030i¥12,700198411-198912
main72140-17040i¥10,200198708-198912
72301WIRE SUB-ASSY, SEAT TRACK EQUALIZING
main72301-14050i¥320198411-198912
72457AKNOB, SEAT ADJUSTER
main72457-17010-01i198803-198808
BLACK,TRIM2#
sub72457-17010¥1,190
main72457-17010-01i198411-198803
BLACK,BLACK,TRIM2#
sub72457-17010¥1,190
main72457-17010-11i198808-198912
BLACK,TRIM2#
sub72457-17010¥1,190
main72457-17010-14i198803-198912
DARK BLUE,TRIM8#
sub72457-17010¥1,190
main72457-17010-14i198608-198803
BLUE,DARK BLUE,TRIM8#
sub72457-17010¥1,190
main72457-17010-15i198608-198803
BEIGE,DARK BEIGE,TRIM4#
sub72457-17010¥1,190
main72457-17010-15i198803-198808
DARK BEIGE,TRIM4#
sub72457-17010¥1,190
72524HANDLE, RECLINING ADJUSTER RELEASE
main72525-12090-01i198803-198808
BLACK,TRIM2#,RH
sub72525-12090¥940
main72525-12090-01i198411-198803
RH,BLACK,BLACK,TRIM2#
sub72525-12090¥940
main72525-12090-11i198808-198903
BLACK,TRIM2#,RH
sub72525-12090¥940
main72525-12090-25i198608-198803
RH,BEIGE,DARK BEIGE,TRIM4#
sub72525-12090¥940
main72525-12090-25i198803-198808
DARK BEIGE,TRIM4#,RH
sub72525-12090¥940
main72525-12090-34i198608-198803
RH,BLUE,DARK BLUE,TRIM8#
sub72525-12090¥940
main72525-12090-34i198803-198912
DARK BLUE,TRIM8#,RH
sub72525-12090¥940
main72525-12090-C0i198903-198912
BLACK,TRIM2#,RH
sub72525-12090¥940
main72526-12030-01i198411-198803
LH,BLACK,BLACK,TRIM2#
sub72526-12030¥940
main72526-12030-01i198803-198808
BLACK,TRIM2#,LH
sub72526-12030¥940
main72526-12030-11i198808-198912
BLACK,TRIM2#,LH
sub72526-12030¥940
main72526-12030-25i198803-198808
DARK BEIGE,TRIM4#,LH
sub72526-12030¥940
main72526-12030-25i198608-198803
LH,BEIGE,DARK BEIGE,TRIM4#
sub72526-12030¥940
main72526-12030-34i198608-198803
LH,BLUE,DARK BLUE,TRIM8#
sub72526-12030¥940
main72526-12030-34i198803-198912
DARK BLUE,TRIM8#,LH
sub72526-12030¥940
9010508085
main90105-08085¥180
9011908080
main90119-08080¥90
9011910185
main90119-10185¥240
9011910547
main90119-10547¥200
9015480002
main90154-80002¥120
9016840045
main90168-40045¥120
9324954006
main93249-54006¥110
9356055014
main93560-55014¥60
9616000800
main96160-00800¥90

36 parts on this diagram · 2 diagrams in section

FRONT SEAT & SEAT TRACK — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
