LOCK CYLINDER SET

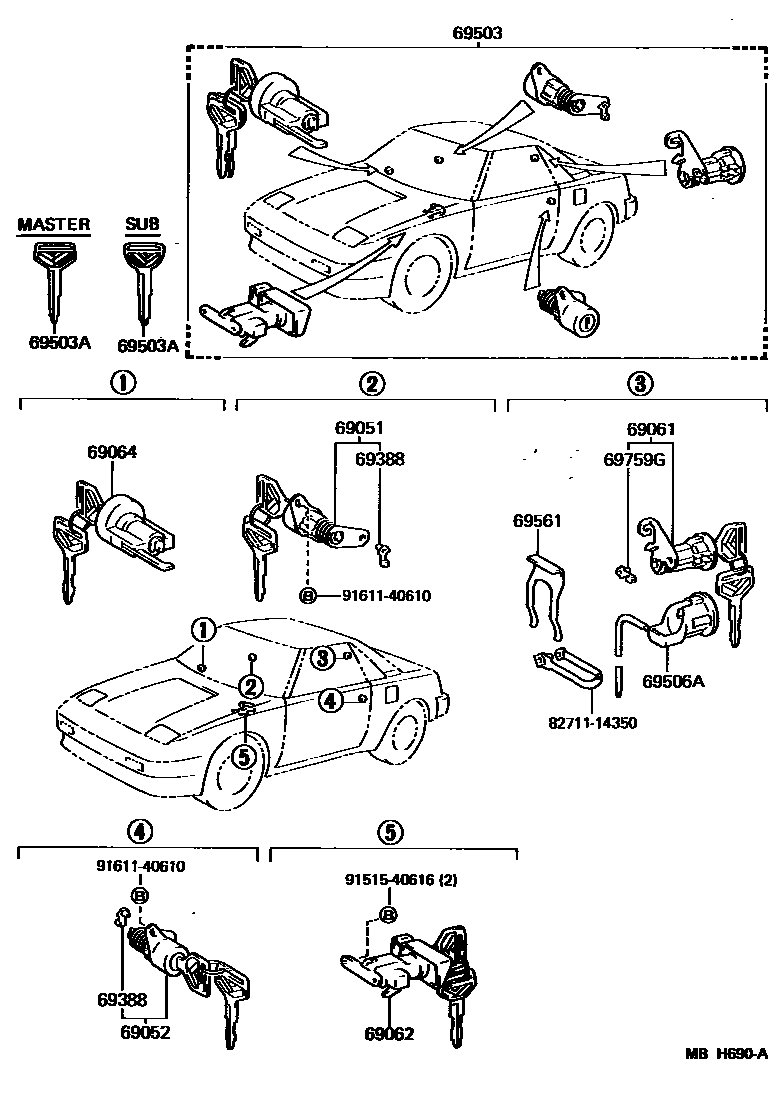

Parts diagram
69051CYLINDER & KEY SET, DOOR LOCK, RH
main69051-17010i198411-198912
sub69051-17030
main69051-17030i198608-198912
SOUTH AFRICA SPEC
main69051-17030i198411-198912
69052CYLINDER & KEY SET, DOOR LOCK, LH
main69052-17010i198411-198912
sub69052-17030
main69052-17030i198608-198912
SOUTH AFRICA SPEC
main69052-17030i198411-198912
69061CYLINDER & KEY SET, LUGGAGE LOCK
main69055-17030i198608-198912
SOUTH AFRICA SPEC
main69055-17030i198411-198912
main69055-17040i198411-198912
69062CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK
main69056-17010-01i198608-198803
BLACK,BLACK,TRIM2#
sub69056-17010
sub69056-17020
main69056-17010-01i198803-198808
BLACK,TRIM2#
sub69056-17010
sub69056-17020
main69056-17010-04i198608-198803
BLUE,DARK BLUE,TRIM8#
sub69056-17010
sub69056-17020
main69056-17010-04i198803-198912
DARK BLUE,TRIM8#
sub69056-17010
sub69056-17020
main69056-17010-05i198608-198803
BEIGE,DARK BEIGE,TRIM4#
sub69056-17010
sub69056-17020
main69056-17010-05i198803-198808
DARK BEIGE,TRIM4#
sub69056-17010
sub69056-17020
main69056-17010-11i198808-198912
BLACK,TRIM2#
sub69056-17010
sub69056-17020
main69056-17030-01i198803-198808
BLACK,TRIM2#
sub69056-17030
main69056-17030-01i198803-198808
SOUTH AFRICA SPEC,BLACK,TRIM2#
sub69056-17030
main69056-17030-01i198608-198803
BLACK,BLACK,TRIM2#
sub69056-17030
main69056-17030-01i198608-198803
SOUTH AFRICA SPEC,BLACK,BLACK,TRIM2#
sub69056-17030
main69056-17030-04i198608-198803
BLUE,DARK BLUE,TRIM8#
sub69056-17030
main69056-17030-04i198608-198803
SOUTH AFRICA SPEC,BLUE,DARK BLUE,TRIM8#
sub69056-17030
main69056-17030-04i198803-198912
DARK BLUE,TRIM8#
sub69056-17030
main69056-17030-04i198803-198912
SOUTH AFRICA SPEC,DARK BLUE,TRIM8#
sub69056-17030
main69056-17030-05i198803-198808
DARK BEIGE,TRIM4#
sub69056-17030
main69056-17030-05i198803-198808
SOUTH AFRICA SPEC,DARK BEIGE,TRIM4#
sub69056-17030
main69056-17030-05i198608-198803
SOUTH AFRICA SPEC,BEIGE,DARK BEIGE,TRIM4#
sub69056-17030
main69056-17030-05i198608-198803
BEIGE,DARK BEIGE,TRIM4#
sub69056-17030
main69056-17030-11i198808-198912
BLACK,TRIM2#
sub69056-17030
main69056-17030-11i198808-198912
SOUTH AFRICA SPEC,BLACK,TRIM2#
sub69056-17030
69064CYLINDER & KEY SET, IGNITION SWITCH LOCK
main69057-10140i198612-198703
sub69057-12130
main69057-12140i198612-198912
SOUTH AFRICA SPEC
sub69057-32090
main69057-12140i198612-198912
sub69057-32090
main69057-16050i198608-198612
SOUTH AFRICA SPEC
main69057-16050i198411-198612
main69057-17020i198411-198612
sub69057-17010
main69057-17030i198703-198912
sub69057-32121
main69057-17040i198803-198912
W(POWER WINDOW)
sub69057-12130
main69057-17040i198708-198803
W/*PW
sub69057-12130
69388SNAP, ROD(FOR DOOR LOCK)
main69759-30040i198411-198912
RH
main69759-30050i198411-198912
LH
69503CYLINDER SET, LOCK
main69005-17030i198411-198608
main69005-17031-01i198608-198612
BLACK,BLACK,TRIM2#
sub69005-17031
main69005-17031-01i198608-198612
SOUTH AFRICA SPEC,BLACK,BLACK,TRIM2#
sub69005-17031
main69005-17031-04i198608-198612
BLUE,DARK BLUE,TRIM8#
sub69005-17031
main69005-17031-04i198608-198612
SOUTH AFRICA SPEC,BLUE,DARK BLUE,TRIM8#
sub69005-17031
main69005-17031-05i198608-198612
BEIGE,DARK BEIGE,TRIM4#
sub69005-17031
main69005-17031-05i198608-198612
SOUTH AFRICA SPEC,BEIGE,DARK BEIGE,TRIM4#
sub69005-17031
main69005-17032-01i198803-198808
BLACK,TRIM2#
sub69005-17032
main69005-17032-01i198803-198808
SOUTH AFRICA SPEC,BLACK,TRIM2#
sub69005-17032
main69005-17032-01i198612-198803
BLACK,BLACK,TRIM2#
sub69005-17032
main69005-17032-01i198612-198803
SOUTH AFRICA SPEC,BLACK,BLACK,TRIM2#
sub69005-17032
main69005-17032-04i198803-198912
DARK BLUE,TRIM8#
sub69005-17032
main69005-17032-04i198612-198803
BLUE,DARK BLUE,TRIM8#
sub69005-17032
main69005-17032-04i198612-198803
SOUTH AFRICA SPEC,BLUE,DARK BLUE,TRIM8#
sub69005-17032
main69005-17032-04i198803-198912
SOUTH AFRICA SPEC,DARK BLUE,TRIM8#
sub69005-17032
main69005-17032-05i198612-198803
BEIGE,DARK BEIGE,TRIM4#
sub69005-17032
main69005-17032-05i198612-198803
SOUTH AFRICA SPEC,BEIGE,DARK BEIGE,TRIM4#
sub69005-17032
main69005-17032-05i198803-198808
DARK BEIGE,TRIM4#
sub69005-17032
main69005-17032-05i198803-198808
SOUTH AFRICA SPEC,DARK BEIGE,TRIM4#
sub69005-17032
main69005-17032-11i198808-198912
BLACK,TRIM2#
sub69005-17032
main69005-17032-11i198808-198912
SOUTH AFRICA SPEC,BLACK,TRIM2#
sub69005-17032
main69005-17040i198411-198608
main69005-17041-01i198608-198612
BLACK,BLACK,TRIM2#
sub69005-17041
main69005-17041-04i198608-198612
BLUE,DARK BLUE,TRIM8#
sub69005-17041
main69005-17041-05i198608-198612
BEIGE,DARK BEIGE,TRIM4#
sub69005-17041
main69005-17042-01i198803-198808
BLACK,TRIM2#
sub69005-17042
main69005-17042-01i198612-198803
BLACK,BLACK,TRIM2#
sub69005-17042
main69005-17042-04i198803-198912
DARK BLUE,TRIM8#
sub69005-17042
main69005-17042-04i198612-198803
BLUE,DARK BLUE,TRIM8#
sub69005-17042
main69005-17042-05i198612-198803
BEIGE,DARK BEIGE,TRIM4#
sub69005-17042
main69005-17042-05i198803-198808
DARK BEIGE,TRIM4#
sub69005-17042
main69005-17042-11i198808-198912
BLACK,TRIM2#
sub69005-17042
main69005-17070-01i198708-198803
W/*PW,BLACK,TRIM2#
sub69005-17070
main69005-17070-01i198803-198808
W(POWER WINDOW),BLACK,TRIM2#
sub69005-17070
main69005-17070-04i198803-198912
W(POWER WINDOW),DARK BLUE,TRIM8#
sub69005-17070
main69005-17070-04i198708-198803
W/*PW,DARK BLUE,TRIM8#
sub69005-17070
main69005-17070-11i198808-198912
W(POWER WINDOW),BLACK,TRIM2#
sub69005-17070
69503AKEY, BLANK
main90999-00084i198803-198912
MASTER KEY,W(*68),SOUTH AFRICA SPEC
sub90999-00214
main90999-00084i198411-198803
MASTER KEY,W(*68),MASTER,TYPE A
sub90999-00214
main90999-00084i198608-198803
MASTER KEY,W(*68),*SA,MASTER,TYPE A
sub90999-00214
main90999-00084i198803-198912
MASTER KEY,W(*68)
sub90999-00214
main90999-00085i198803-198912
MASTER KEY
main90999-00085i198411-198803
MASTER KEY,MUSTER
main90999-00088i198803-198912
SUB KEY,W(*68)
main90999-00088i198803-198912
SUB KEY,W(*68),SOUTH AFRICA SPEC
main90999-00088i198608-198803
SUB KEY,W(*68),*SA,SUB,TYPE A
main90999-00088i198411-198803
SUB KEY,W(*68),SUB,TYPE A
main90999-00092i198411-198803
MSTER KEY,W(*69),MASTER,TYPE B
sub90999-00084
main90999-00092i198608-198803
MSTER KEY,W(*69),*SA,MASTER,TYPE B
sub90999-00084
main90999-00093i198608-198803
SUB KEY,W(*69),*SA,SUB,TYPE B
sub90999-00088
main90999-00093i198411-198803
SUB KEY,W(*69),SUB,TYPE B
sub90999-00088
main90999-00094i198411-198803
SUB KEY,SUB
main90999-00094i198803-198912
SUB KEY
main90999-00128i198803-198912
MASTER KEY,W(*68)
sub90999-00212
main90999-00128i198608-198803
MASTER KEY,W(*68),MASTER,W/PROTECTOR
sub90999-00212
69506AHOSE SUB-ASSY, LUGGAGE DOOR LOCK CYLINDER
main69506-17010i198411-198912
69561RETAINER, LUGGAGE COMPARTMENT OR BACK DOOR LOCK CYLINDER
main69561-17010i198411-198912
69759GSNAP, LUGGAGE DOOR LOCK CYLINDER
main69759-24090i198411-198912
8271114350WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-14350
9151540616
main91515-40616
9161140610
main91611-40610

14 parts on this diagram · 2 diagrams in section
