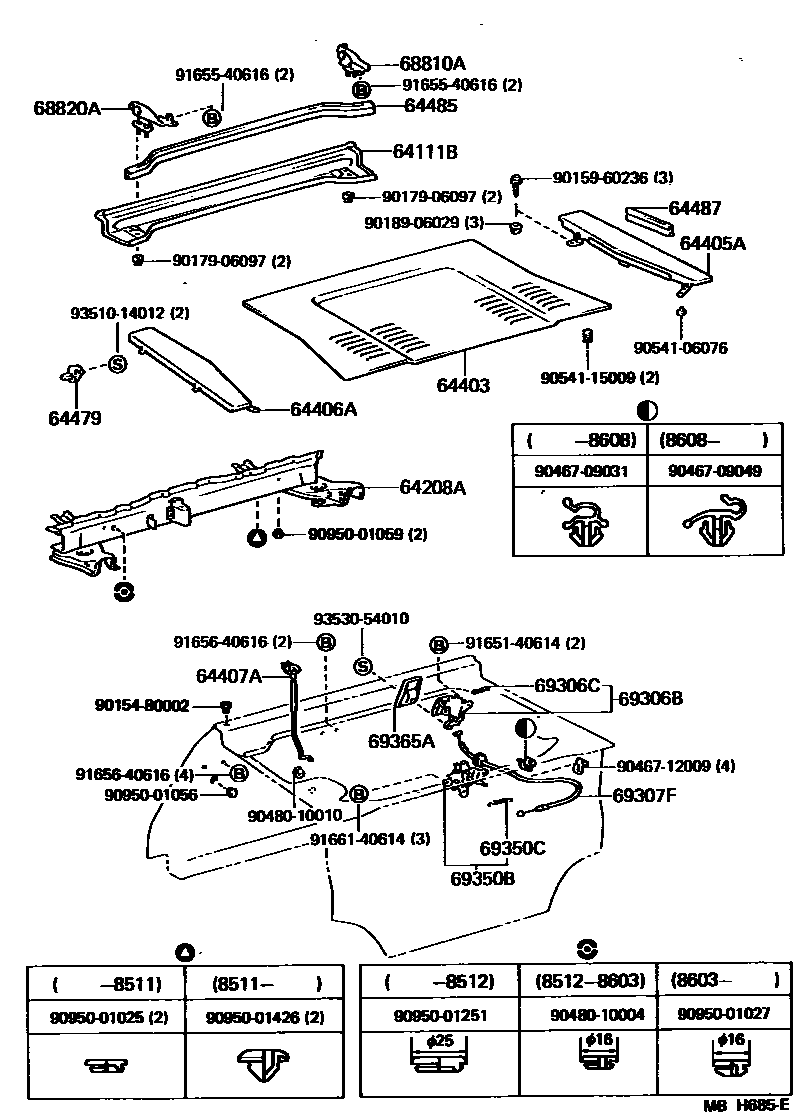

ENGINE HOOD & LOCK

64111BPANEL, UPPER BACK, OUTER

main64111-17010iAW11¥12,300198411-198912

64208AMEMBER SUB-ASSY, ROOM PARTITION CROSS

main64208-17020iAW11..LHD..EUG;AW11..LHD..GEN;AW11..RHD..(EUR,GEN)198411-198912

main64208-17030iAW11..FRG;AW11..ARL¥20,800198511-198912

64403HOOD SUB-ASSY, ENGINE

main64403-17010iAW11¥30,400198411-198912

64405APANEL SUB-ASSY, ENGINE HOOD SIDE, RH

main64405-17010iAW11¥4,510198411-198912

64406APANEL SUB-ASSY, ENGINE HOOD SIDE, LH

main64406-17010iAW11¥4,510198411-198912

64407ASUPPORT SUB-ASSY, ENGINE HOOD

main64407-17010iAW11¥1,180198411-198912

64479CLIP, ENGINE HOOD SIDE PANEL

main64479-17010iAW11¥330198411-198912

64485SEAL, ENGINE HOOD TO UPPER BACK

main64485-17010iAW11¥2,300198411-198912

64487SEAL, ENGINE HOOD TO HOOD SIDE

main64487-17010iAW11¥1,080198411-198912

68810AHINGE ASSY, ENGINE HOOD, RH

main68810-17010iAW11¥3,350198411-198808

sub68810-17011¥3,350

main68810-17011iAW11¥3,350198808-198912

68820AHINGE ASSY, ENGINE HOOD, LH

main68820-17010iAW11¥3,350198411-198808

sub68820-17011¥3,350

main68820-17011iAW11¥3,350198808-198912

69306BLEVER SUB-ASSY, ENGINE HOOD LOCK CONTROL

main69306-17010iAW11¥2,170198411-198912

69306CSPRING, TORSION(FOR ENGINE HOOD LOCK CONTROL LEVER)

main90508-10034iAW11¥140198411-198912

69307FCABLE ASSY, ENGINE HOOD LOCK CONTROL

main69307-17010iAW11..RHD¥1,180198411-198608

main69307-17020iAW11..LHD198411-198912

main69307-17041iAW11..RHD198608-198912

69350BLOCK ASSY, ENGINE HOOD

main69350-17010iAW11..RHD¥5,300198411-198912

main69350-17020iAW11..LHD¥5,300198411-198912

69350CSPRING, TENSION(FOR ENGINE HOOD LOCK)

main90506-14043iAW11¥250198411-198912

69365ABEZEL, ENGINE HOOD LOCK CONTROL

main69365-17010-01iAW11198803-198808

BLACK,TRIM2#

sub69365-17010¥750

main69365-17010-01iAW11198411-198803

BLACK,BLACK,TRIM2#

sub69365-17010¥750

main69365-17010-04iAW11198803-198912

DARK BLUE,TRIM8#

sub69365-17010¥750

main69365-17010-04iAW11198608-198803

BLUE,DARK BLUE,TRIM8#

sub69365-17010¥750

main69365-17010-05iAW11..EUR,GEN198608-198803

BEIGE,DARK BEIGE,TRIM4#

sub69365-17010¥750

main69365-17010-05iAW11..EUR,GEN198803-198808

DARK BEIGE,TRIM4#

sub69365-17010¥750

main69365-17010-11iAW11198808-198912

BLACK,TRIM2#

sub69365-17010¥750

9015480002

main90154-80002¥120

9015960236

main90159-60236¥130

9017906097

main90179-06097¥320

9018906029

main90189-06029¥100

9046709031

main90467-09031¥200

9046709049

main90467-09049¥160

9046712009

main90467-12009¥470

9048010004

main90480-10004

9048010010

main90480-10010¥230

9054106076

main90541-06076¥230

9054115009

main90541-15009¥260

9095001025

main90950-01025¥240

9095001027

main90950-01027¥160

9095001056

main90950-01056¥230

9095001059

main90950-01059¥230

9095001251

main90950-01251¥160

9095001426

main90950-01426¥260

9165140614

main91651-40614¥160

9165540616

main91655-40616¥120

9165640616

main91656-40616¥100

9166140614

main91661-40614¥120

9351014012

main93510-14012¥230

9353054010

main93530-54010¥70

40 parts on this diagram · 1 diagram in section
