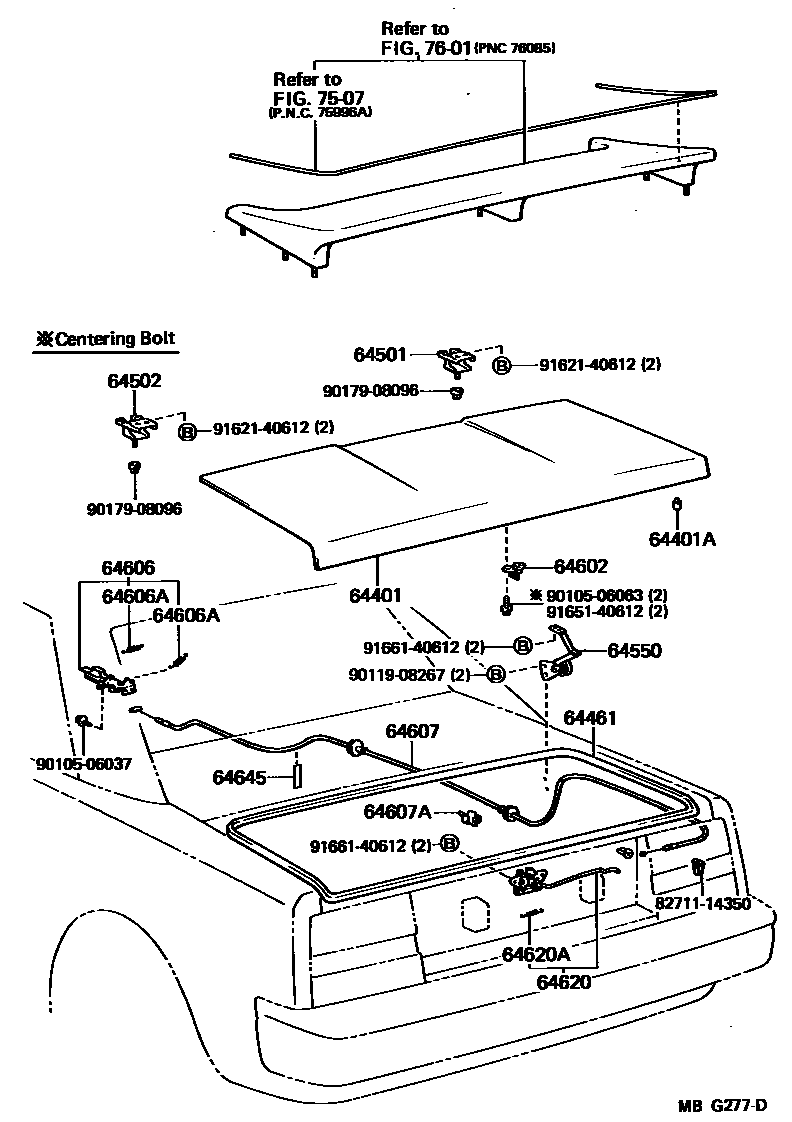

LUGGAGE COMPARTMENT DOOR & LOCK

64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR

main64401-17020iAW11..EUR,GEN198411-198912

main64401-17050iAW11198411-198508

W/SPOILER

main64401-17051iAW11..EUR,GEN198803-198912

W(SPOILER)

main64401-17051iAW11198508-198803

W/SPOILER

64401ACUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL)

main90541-09005iAW11198412-198912

84128912

sub90541-09058

64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR

main64461-17010iAW11198411-198912

64501HINGE SUB-ASSY, LUGGAGE COMPARTMENT DOOR, RH

main64510-17010iAW11198411-198803

sub64510-17011

main64510-17011iAW11198808-198912

64502HINGE SUB-ASSY, LUGGAGE COMPARTMENT DOOR, LH

main64510-17010iAW11198411-198803

sub64510-17011

main64510-17011iAW11198808-198912

64550BALANCER ASSY, LUGGAGE COMPARTMENT DOOR

main64550-17010iAW11..EUR,GEN198411-198912

main64550-17020iAW11..ARL198803-198912

W(SPOILER)

main64550-17020iAW11198411-198803

W/SPOILER

64602STRIKER SUB-ASSY, LUGGAGE COMPARTMENT DOOR LOCK

main64620-17010iAW11198411-198912

64606LEVER SUB-ASSY, LUGGAGE DOOR LOCK OPEN

main64606-17010iAW11..RHD198411-198912

main64606-17020iAW11..LHD198411-198912

64606ASPRING, TENSION(FOR LUGGAGE DOOR LOCK OPEN LEVER)

main90506-09004iAW11198411-198912

64607CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL

main64607-17010iAW11..RHD198411-198608

main64607-17020iAW11..LHD198411-198608

main64607-17021iAW11..LHD198608-198912

main64607-17030iAW11..RHD198608-198912

64607ACLAMP, NO.1(FOR LUGGAGE DOOR LOCK CONTROL CABLE)

main90467-09031iAW11198411-198912

64620LOCK ASSY, LUGGAGE COMPARTMENT DOOR

main64610-17010iAW11198411-198912

64620ASPRING, TENSION(FOR LUGGAGE COMPARTMENT DOOR LOCK)

main90506-07011iAW11198411-198803

sub90506-07017

main90506-07017iAW11198803-198912

64645TAPE, LUGGAGE LOCK CONTROL CABLE

main64645-17010iAW11198411-198912

7507

7601

8271114350WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-14350

9010506037

main90105-06037

9010506063

main90105-06063

9011908267

main90119-08267

9017908096

main90179-08096

9162140612

main91621-40612

9165140612

main91651-40612

9166140612

main91661-40612

24 parts on this diagram · 1 diagram in section
