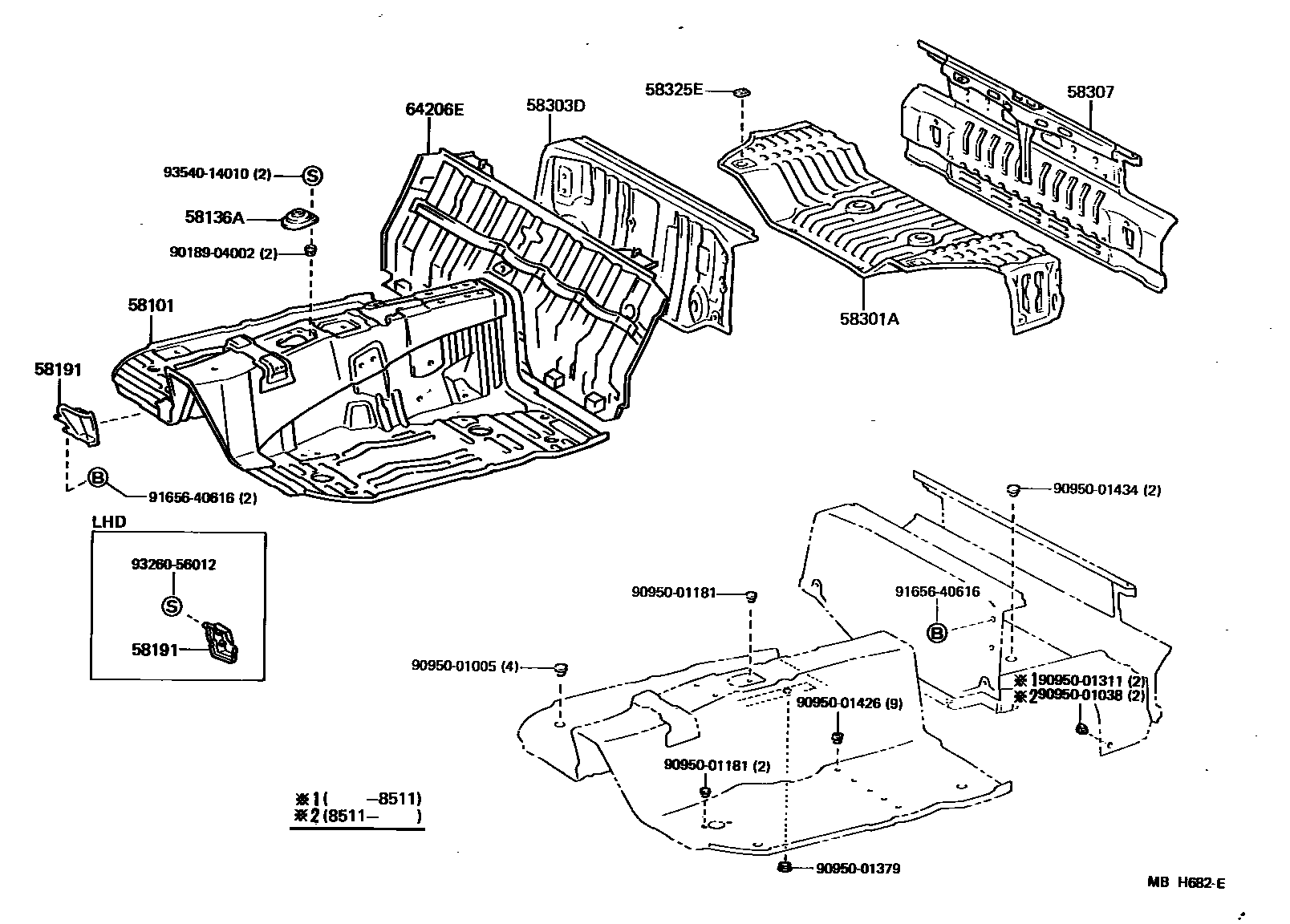

FLOOR PAN & LOWER BACK PANEL

58101PAN SUB-ASSY, FRONT FLOOR

main58101-17901iAW11..RHD¥54,800198411-198608

sub58101-17905¥55,400

main58101-17903iAW11..LHD¥54,800198411-198608

main58101-17905iAW11¥55,400198608-198912

58136ACOVER, FRONT FLOOR SERVICE HOLE

main58136-17010iAW11¥510198411-198912

58191FOOTREST, FRONT FLOOR

main58191-17010iAW11..RHD¥2,710198411-198912

main58192-17010iAW11..LHD198411-198608

58301APANEL SUB-ASSY, REAR FLOOR

main58301-17020iAW11¥22,400198411-198608

main58301-17021iAW11¥22,500198608-198912

58303DPANEL SUB-ASSY, REAR FLOOR PARTITION

main58303-17020iAW11..RHD198411-198608

main58303-17021iAW11..LHD..EUG;AW11..LHD..GEN;AW11..RHD..(EUR,GEN)¥14,500198608-198912

main58303-17030iAW11..LHD198411-198608

main58303-17031iAW11..FRG;AW11..ARL¥14,500198608-198912

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-17020iAW11¥24,000198411-198608

main58307-17021iAW11..EUR,GEN¥24,200198608-198912

main58307-17050iAW11..ARL¥24,200198708-198912

58325ECOVER, REAR FLOOR SERVICE HOLE

main58325-17010iAW11¥510198411-198912

64206EPANEL SUB-ASSY, ROOM PARTITION

main64206-17020iAW11..EUG;AW11..GEN¥79,100198910-198912

9018904002

main90189-04002¥100

9095001005

main90950-01005¥400

9095001038

main90950-01038¥220

9095001181

main90950-01181¥220

9095001311

main90950-01311¥120

9095001379

main90950-01379¥250

9095001426

main90950-01426¥260

9095001434

main90950-01434¥610

9165640616

main91656-40616¥100

9326056012

main93260-56012¥70

9354014010

main93540-14010¥100

19 parts on this diagram · 1 diagram in section
