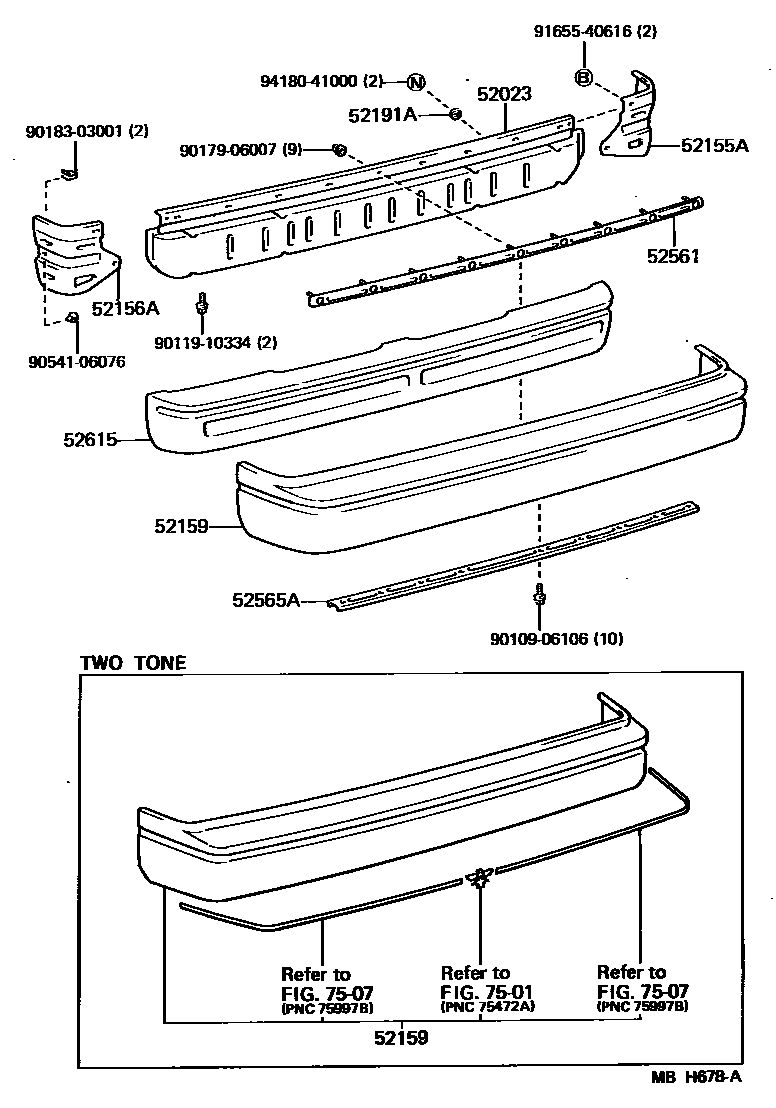

REAR BUMPER & BUMPER STAY

0001 1 0002 1

52023REINFORCEMENT SUB-ASSY, REAR BUMPER

main52023-17010iAW11198411-198912

52155ASUPPORT, REAR BUMPER SIDE, RH

main52155-17010iAW11198411-198912

52156ASUPPORT, REAR BUMPER SIDE, LH

main52156-17010iAW11198411-198912

52159COVER, REAR BUMPER

main52159-17900iAW11198411-198912

52191ASEAL, REAR BUMPER ARM

main52191-17010iAW11198411-198912

52561RETAINER, REAR BUMPER, UPPER CENTER

main52561-17010iAW11198411-198912

52565ARETAINER, REAR BUMPER, LOWER

main52565-17010iAW11198411-198912

52615ABSORBER, REAR BUMPER ENERGY

main52615-17010iAW11198411-198912

7501

7507

9010906106

main90109-06106

9011910334

main90119-10334

9017906007

main90179-06007

9018303001

main90183-03001

9054106076

main90541-06076

9165540616

main91655-40616

9418041000

main94180-41000

17 parts on this diagram · 2 diagrams in section
