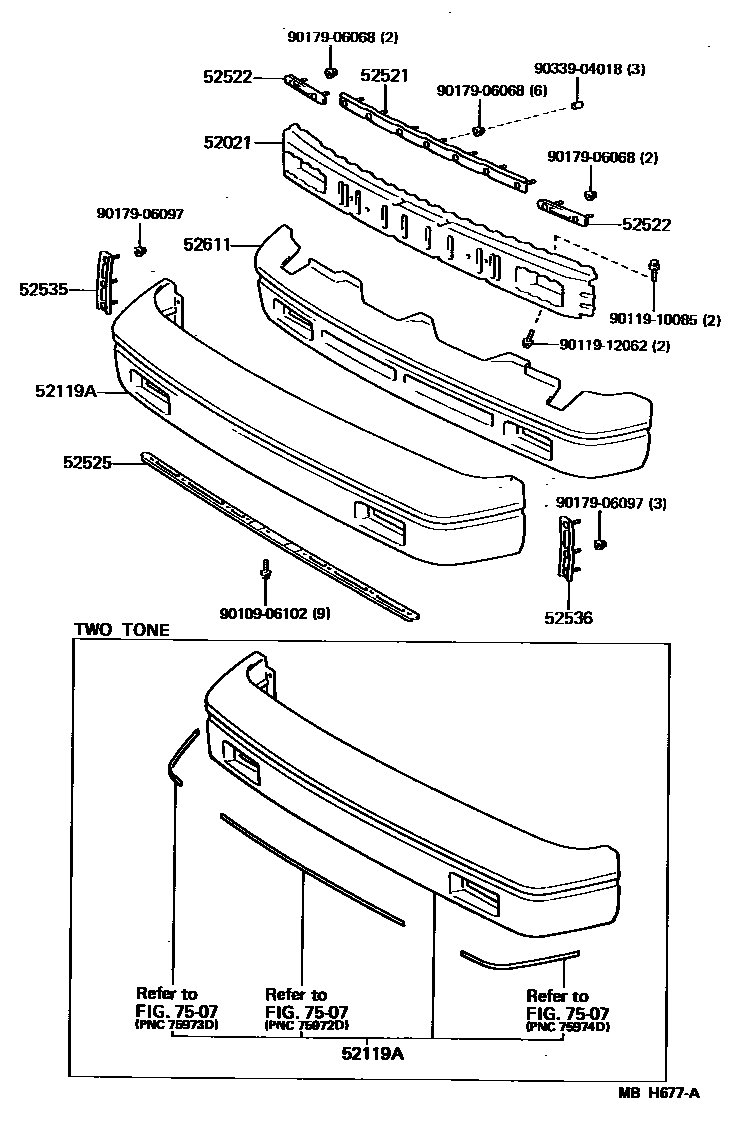

FRONT BUMPER & BUMPER STAY

0001 1 0002 1 0003 1

52021REINFORCEMENT SUB-ASSY, FRONT BUMPER

main52021-17010iAW11198411-198608

sub52021-17020

main52021-17011iAW11198608-198912

sub52021-17021

52119ACOVER, FRONT BUMPER

main52119-17900iAW11198411-198608

main52119-17901iAW11198608-198912

52521RETAINER, FRONT BUMPER, UPPER CENTER

main52521-17010iAW11198411-198608

main52521-17011iAW11198608-198912

52522RETAINER, FRONT BUMPER UPPER SIDE

main52522-17010iAW11198411-198912

52525RETAINER, FRONT BUMPER, LOWER CENTER

main52506-17010iAW11198411-198608

main52506-17020iAW11198608-198912

52535RETAINER, FRONT BUMPER SIDE, RH

main52535-17010iAW11198411-198912

52536RETAINER, FRONT BUMPER SIDE, LH

main52536-17010iAW11198411-198912

52611ABSORBER, FRONT BUMPER ENERGY

main52611-17010iAW11198411-198608

main52611-17011iAW11198608-198912

7507

9010906102

main90109-06102

9011910085

main90119-10085

9011912062

main90119-12062

9017906068

main90179-06068

9017906097

main90179-06097

9033904018

main90339-04018

15 parts on this diagram · 3 diagrams in section
