SPARE WHEEL CARRIER

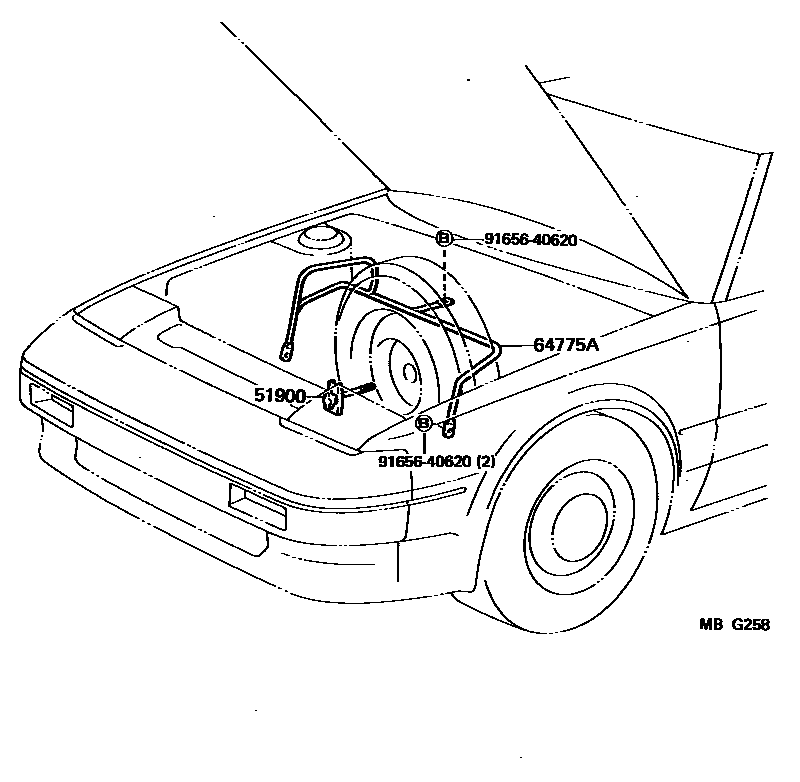

Parts diagram

51900CARRIER ASSY, SPARE WHEEL

main51900-17010i198411-198912

64775AGUARD, SPARE WHEEL

main64775-17010i198411-198608

main64775-17011i198608-198912

main64775-17020i198411-198608

main64775-17021i198608-198912

9165640620

main91656-40620

3 parts on this diagram · 1 diagram in section
