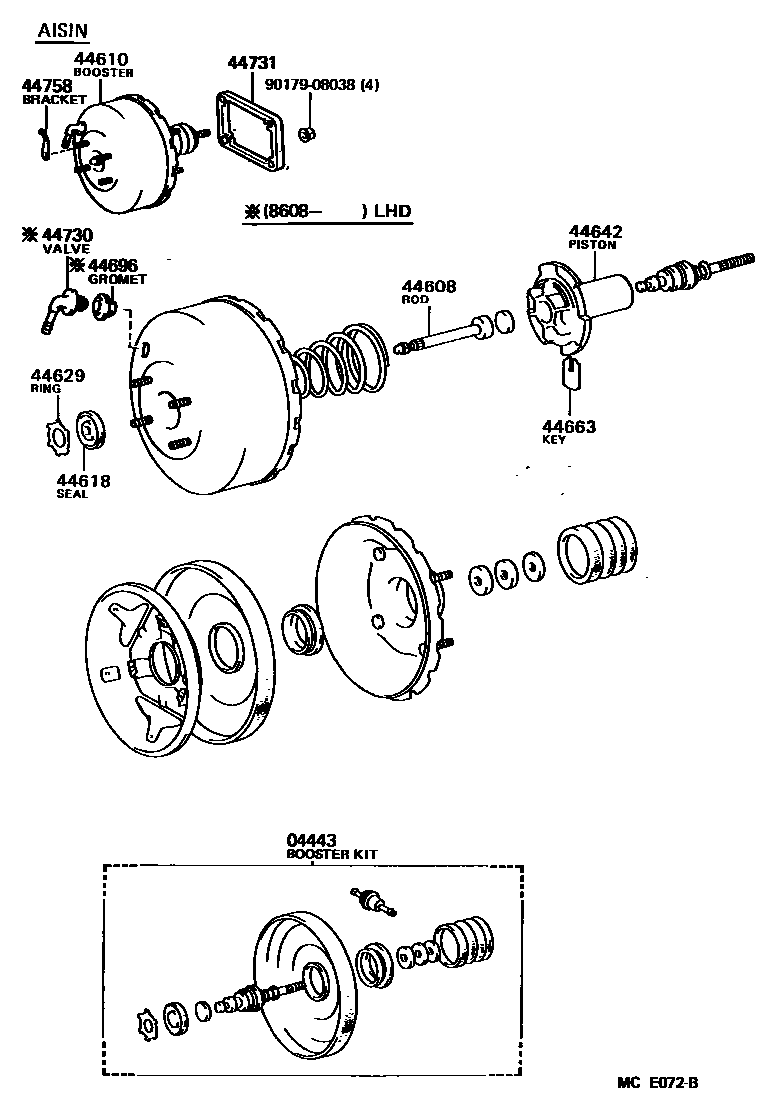

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0004 1 0005 1 0006 1

04443BOOSTER KIT, BRAKE

main04443-17010iAW11..RHD198411-198608

main04443-17020iAW11..LHD198411-198608

AISIN

main04443-17030iAW11..LHD198411-198608

JKC

main04443-17040iAW11..RHD..GEN198803-198912

JKC

main04443-17050iAW11..LHD..GEN198608-198912

JKC

main04443-17070iAW11..RHD..EUG198803-198912

JKC

main04443-17080iAW11..RHD..GEN198608-198708

AISIN

sub04443-17081

main04443-17081iAW11..RHD..GEN198708-198912

AISIN

main04443-17090iAW11..LHD..GEN198608-198708

AISIN

sub04443-17091

main04443-17091iAW11..LHD..GEN198708-198912

AISIN

main04443-17110iAW11..RHD..EUG198608-198708

AISIN

sub04443-17111

main04443-17111iAW11..RHD..EUG198708-198912

AISIN

main04443-17120iAW11..ARL198708-198912

JKC

main04443-17130iAW11..LHD..EUR198803-198912

JKC

main04443-17140iAW11..LHD..EUR198608-198708

sub04443-17141

main04443-17141iAW11..LHD..EUR198708-198803

main04443-17141iAW11..LHD..EUR198803-198912

AISIN

main04443-17150iAW11..ARL198708-198708

AISIN

sub04443-17151

main04443-17151iAW11..ARL198708-198912

AISIN

44608PUSH ROD SUB-ASSY, BOOSTER

main44606-12520iAW11198411-198912

AISIN

main44608-32020iAW11..LHD..GEN198411-198912

JKC

44610BOOSTER ASSY, BRAKE

main44610-17010iAW11..RHD198411-198608

main44610-17020iAW11..LHD198411-198608

main44610-17040iAW11..RHD..GEN198608-198708

sub44610-17041

main44610-17041iAW11..RHD..GEN198708-198912

main44610-17060iAW11..LHD..GEN198608-198708

sub44610-17061

main44610-17061iAW11..LHD..GEN198708-198912

main44610-17100iAW11..RHD..EUG198608-198708

sub44610-17101

main44610-17101iAW11..RHD..EUG198708-198912

main44610-17120iAW11..LHD..EUR198608-198708

sub44610-17121

main44610-17121iAW11..LHD..EUR198708-198912

main44610-17141iAW11..ARL198708-198912

44618SEAL, BOOSTER BODY

main44621-28120iAW11198411-198912

44629RING, CIRCULAR INTERNAL

main44628-28120iAW11198411-198912

44642PISTON, BRAKE BOOSTER

main44642-12520iAW11..ARL198708-198912

main44642-16050iAW11198411-198912

main44642-27150iAW11..RHD..EUG198608-198912

main44642-32010iAW11..LHD..GEN198608-198912

44663KEY, VALVE STOPPER

main44635-12630iAW11..ARL198708-198912

main44635-28120iAW11..EUR,GEN198411-198803

44696GROMMET, CHECK VALVE

main90480-24439iAW11..LHD198608-198912

AISIN

main90480-24517iAW11..LHD198608-198912

JKC

sub90480-24015

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-10010iAW11198411-198912

main44730-14050iAW11..LHD198608-198912

AISIN

main44730-14060iAW11..LHD..GEN198608-198912

JKC

sub44730-28010

sub90480-24015

44731BRACKET, BRAKE BOOSTER, FRONT

main44731-17010iAW11..RHD198608-198912

44758BRACKET, VACUUM CHECK VALVE

main44758-17010iAW11..LHD198411-198608

main44758-17020iAW11..LHD198608-198912

main44758-32010iAW11..RHD198411-198912

9017908038

main90179-08038

12 parts on this diagram · 5 diagrams in section
