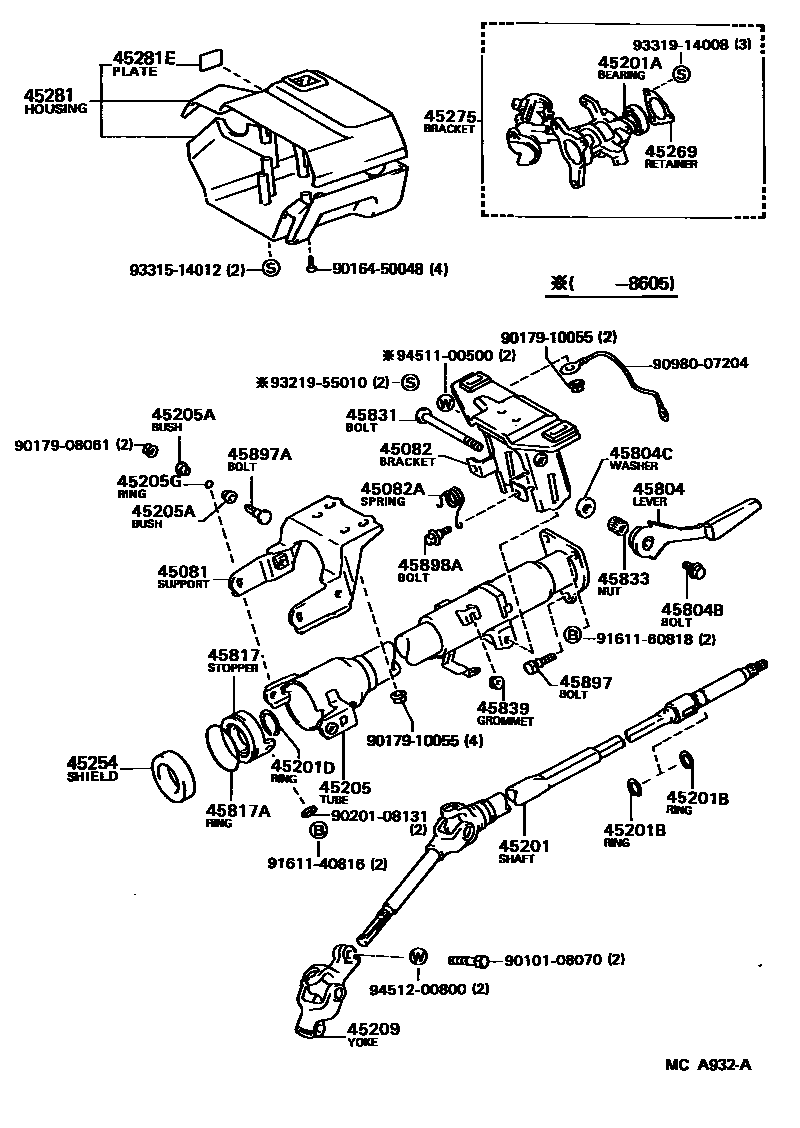

STEERING COLUMN & SHAFT
45081SUPPORT SUB-ASSY, TILT STEERING
45082ASPRING, TORSION(FOR TILT STEERING RETURN)
45201SHAFT SUB-ASSY, STEERING MAIN
45201ABEARING(FOR STEERING MAIN SHAFT)
45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
T=1.20,T=1.2
T=1.20
T=1.35-1.45,T=1.4
T=1.35-1.45
45201DRING(FOR STEERING MAIN SHAFT)
45205TUBE SUB-ASSY, STEERING COLUMN
45205ABUSH(FOR STEERING COLUMN TUBE)
45205GRING, O(FOR STEERING COLUMN TUBE)
45209YOKE SUB-ASSY, STEERING SLIDING
45254SHIELD, STEERING COLUMN HOLE
45269RETAINER, MAIN SHAFT BEARING
45281EPLATE, SAFETY CAUTION
45804LEVER SUB-ASSY, STEERING TILT
45804BBOLT(FOR STEERING TILT LEVER)
45804CWASHER, PLATE(FOR STEERING TILT LEVER)
45817STOPPER, STEERING SHAFT THRUST
sub45808-20030
45817ARING, O(FOR STEERING SHAFT THRUST STOPPER)
45831BOLT, TILT LEVER LOCK, NO.1
45833NUT, TILT STEERING ADJUSTING, NO.1
45839GROMMET, RETURN SPRING
45897BOLT, STEERING LOCK SET
45897ABOLT, TILT STEERING PAWL SET
45898ABOLT, RETURN SPRING SET
9010108070
main90101-08070
9016450048
main90164-50048
9017908061
main90179-08061
9017910055
main90179-10055
9020108131
main90201-08131
9098007204
main90980-07204
9161140816
main91611-40816
9161160818
main91611-60818
9321955010
main93219-55010
9331514012
main93315-14012
9331914008
main93319-14008
9451100500
main94511-00500
9451200800
main94512-00800
40 parts on this diagram · 1 diagram in section
