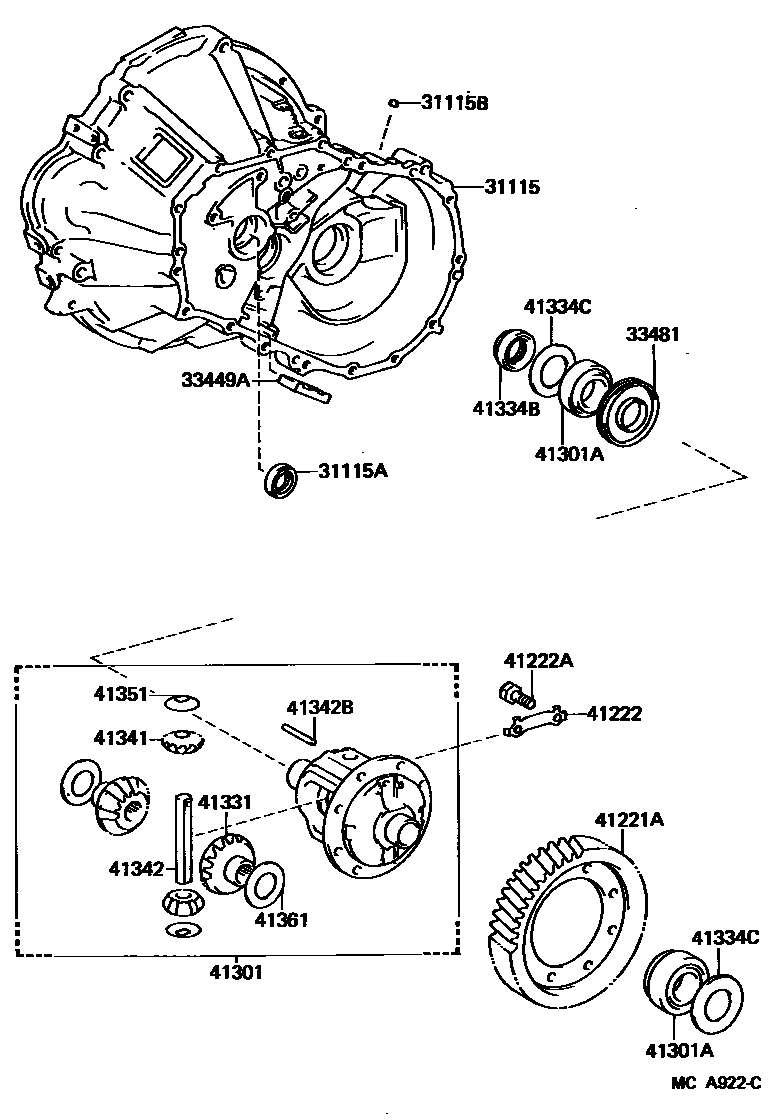

REAR AXLE HOUSING & DIFFERENTIAL

31115CASE, TRANSAXLE

main31115-12010iAW11198411-198606

sub31115-12020

main31115-12020iAW11198606-198608

sub31115-12021

sub33134-12021

sub90560-48001

main31115-12021iAW11198608-198701

sub31115-12040

sub11355-15060

sub11355-55012

sub11361-16020

sub16264-16011

sub16268-15050

sub16268-15060

sub16268-16070

sub16278-16060

sub16322-15030

sub16322-16011

sub90105-10051

sub91611-61025

main31115-12022iAW11198701-198704

sub31115-12040

sub11355-55012

sub11361-16020

sub90105-10051

sub91611-61025

main31115-12040iAW11198704-198912

sub31115-16040

sub33125-12011

31115ASEAL, OIL(FOR TRANSAXLE CASE)

main90311-25011iAW11198411-198912

sub90311-25028

31115BPLUG, TIGHT(FOR REAR TRANSAXLE CASE)

main90331-08002iAW11198411-198912

33449AMAGNET, TRANSMISSION

main33449-12010iAW11198411-198912

sub33449-12020

33481GEAR, SPEEDOMETER DRIVE (MTM)

main33481-12040iAW11198411-198912

N=35,MARK 35X29-31

41221AGEAR, REAR DIFFERENTIAL RING

main41221-17010iAW11198411-198912

sub41221-12340

41222PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK

main41222-12040iAW11198411-198912

41222ABOLT (FOR REAR DIFFERENTIAL RING GEAR SET)

main90101-11353iAW11198411-198912

41301CASE SUB-ASSY, REAR DIFFERENTIAL

main41301-12040iAW11198411-198912

sub41301-12041

sub90105-11040

41301ABEARING(FOR REAR DIFFERENTIAL CASE)

main90366-38004iAW11198608-198803

RH,OD=68

main90366-38004iAW11198803-198912

RH

main90368-38006iAW11198411-198608

RH,OD=68

sub90368-38002

main90368-38010iAW11198803-198912

LH

main90368-38010iAW11198411-198803

LH,OD=72

41331GEAR, REAR DIFFERENTIAL SIDE

main41331-12011iAW11198411-198912

41334BSEAL, OIL (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT)

main90311-34007iAW11198411-198912

sub90311-34016

41334CWASHER, PLATE (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT)

main90201-41045iAW11198803-198912

T=2.10

sub90201-41012

main90201-41045iAW11198411-198803

T=2.10,RH

sub90201-41012

main90201-41046iAW11198411-198803

T=2.10,MARK A,LH,T=2.10

sub90564-41014

main90201-41046iAW11198803-198912

T=2.10,MARK A

sub90564-41014

main90201-41047iAW11198411-198803

T=2.15,MARK B,LH,T=2.15

sub90564-41015

main90201-41047iAW11198803-198912

T=2.15,MARK B

sub90564-41015

main90201-41048iAW11198411-198803

T=2.20,MARK C,LH,T=2.20

sub90564-41016

main90201-41048iAW11198803-198912

T=2.20,MARK C

sub90564-41016

main90201-41049iAW11198411-198803

T=2.25,MARK D,LH,T=2.25

sub90564-41017

main90201-41049iAW11198803-198912

T=2.25,MARK D

sub90564-41017

main90201-41050iAW11198803-198912

T=2.30,MARK E

sub90564-41018

main90201-41050iAW11198411-198803

T=2.30,MARK E,LH,T=2.30

sub90564-41018

main90201-41051iAW11198411-198803

T=2.35,MARK F,LH,T=2.35

sub90564-41019

main90201-41051iAW11198803-198912

T=2.35,MARK F

sub90564-41019

main90201-41052iAW11198411-198803

T=2.40,MARK G,LH,T=2.40

sub90564-41020

main90201-41052iAW11198803-198912

T=2.40,MARK G

sub90564-41020

main90201-41053iAW11198803-198912

T=2.45,MARK H

sub90564-41021

main90201-41053iAW11198411-198803

T=2.45,MARK H,LH,T=2.45

sub90564-41021

main90201-41054iAW11198803-198912

T=2.50,MARK J

sub90564-41022

main90201-41054iAW11198411-198803

T=2.50,MARK J,LH,T=2.50

sub90564-41022

main90201-41055iAW11198411-198803

T=2.55,MARK K,LH,T=2.55

sub90564-41023

main90201-41055iAW11198803-198912

T=2.55,MARK K

sub90564-41023

main90201-41056iAW11198411-198803

T=2.60,MARK L,LH,T=2.60

sub90564-41024

main90201-41056iAW11198803-198912

T=2.60,MARK L

sub90564-41024

main90201-41057iAW11198803-198912

T=2.65,MARK M

sub90564-41025

main90201-41057iAW11198411-198803

T=2.65,MARK M,LH,T=2.65

sub90564-41025

main90201-41058iAW11198411-198803

T=2.70,MARK N,LH,T=2.70

sub90564-41026

main90201-41058iAW11198803-198912

T=2.70,MARK N

sub90564-41026

main90201-41059iAW11198411-198803

T=2.75,MARK P,LH,T=2.75

sub90564-41027

main90201-41059iAW11198803-198912

T=2.75,MARK P

sub90564-41027

main90201-41060iAW11198803-198912

T=2.80,MARK Q

sub90564-41028

main90201-41060iAW11198411-198803

T=2.80,MARK Q,LH,T=2.80

sub90564-41028

main90201-41061iAW11198411-198803

T=2.85,MARK R,LH,T=2.85

sub90564-41029

main90201-41061iAW11198803-198912

T=2.85,MARK R

sub90564-41029

main90201-41062iAW11198411-198803

T=2.90,MARK S,LH,T=2.90

sub90564-41030

main90201-41062iAW11198803-198912

T=2.90,MARK S

sub90564-41030

main90201-41063iAW11198411-198803

T=2.95,MARK T,LH,T=2.95

sub90564-41031

main90201-41063iAW11198803-198912

T=2.95,MARK T

sub90564-41031

main90201-41064iAW11198411-198803

T=3.00,MARK U,LH,T=3.00

sub90564-41032

main90201-41064iAW11198803-198912

T=3.00,MARK U

sub90564-41032

41341PINION, REAR DIFFERENTIAL

main41341-12030iAW11198502-198803

main41341-22020iAW11198411-198502

sub41341-12030

41342SHAFT, REAR DIFFERENTIAL PINION

main41342-12020iAW11198411-198903

sub41342-12140

main41342-12110iAW11198903-198912

sub41342-12020

41342BPIN, STRAIGHT (FOR REAR DIFFERENTIAL PINION SHAFT)

main90250-06058iAW11198411-198912

41351WASHER, REAR DIFFERENTIAL PINION THRUST

main41351-12020iAW11198411-198912

41361WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1

main41361-22020iAW11198803-198912

T=1.00,MARK 02

main41361-22020iAW11198411-198803

T=1.00,MARK 02,T=1.00

main41361-22030iAW11198411-198803

T=1.10,MARK 03,T=1.10

main41361-22030iAW11198803-198912

T=1.10,MARK 03

main41361-22040iAW11198411-198803

T=1.20,MARK 04,T=1.20

main41361-22040iAW11198803-198912

T=1.20,MARK 04

main41361-22140iAW11198411-198803

T=0.95,MARK 14,T=0.95

main41361-22140iAW11198803-198912

T=0.95,MARK 14

main41361-22150iAW11198411-198803

T=1.05,MARK 15,T=1.05

main41361-22150iAW11198803-198912

T=1.05,MARK 15

main41361-22160iAW11198803-198912

T=1.15,MARK 16

main41361-22160iAW11198411-198803

T=1.15,MARK 16,T=1.15

18 parts on this diagram · 1 diagram in section
