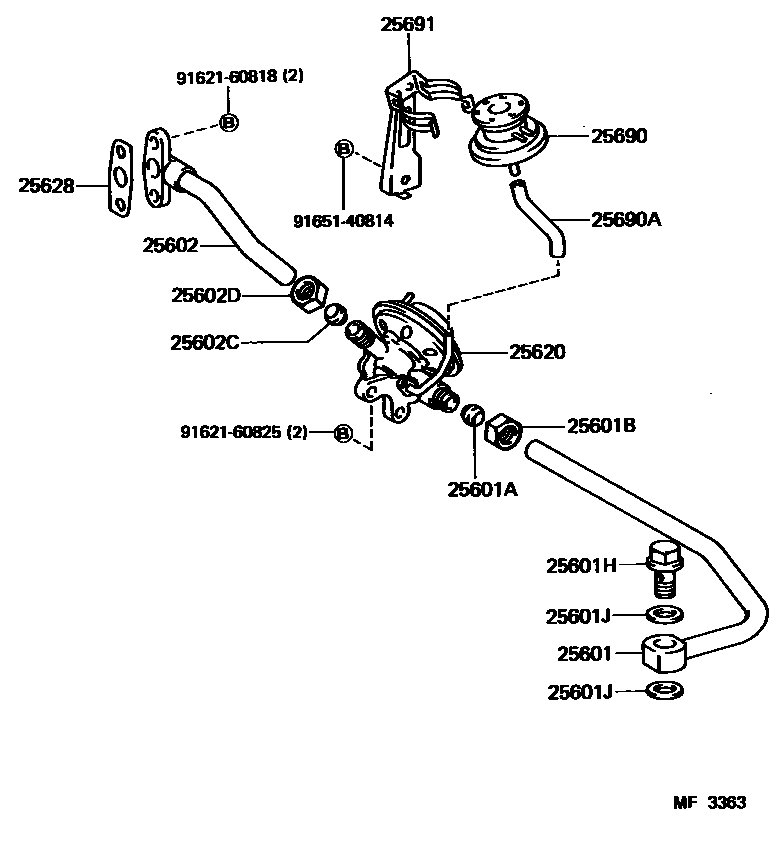

EXHAUST GAS RECIRCULATION SYSTEM
25601PIPE SUB-ASSY, EGR, NO.1
25601ASLEEVE, BALL, EGR PIPE, NO.1
25601BNUT, UNION, EGR PIPE, NO.1
25601HBOLT, UNION(FOR EGR PIPE,NO.1)
25601JGASKET(FOR EGR PIPE, NO.1)
25602PIPE SUB-ASSY, EGR, NO.2
25602CSLEEVE, BALL(FOR EGR PIPE, NO.2)
25602DNUT, UNION(FOR EGR PIPE, NO.2)
25620VALVE ASSY, EGR
25628GASKET, EGR INLET
25690MODULATOR ASSY, EGR VACUUM
25690AHOSE(FOR EGR VACUUM MODULATOR)
25691BRACKET, EGR VACUUM MODULATOR
9162160818
main91621-60818
9162160825
main91621-60825
9165140814
main91651-40814
16 parts on this diagram · 1 diagram in section
