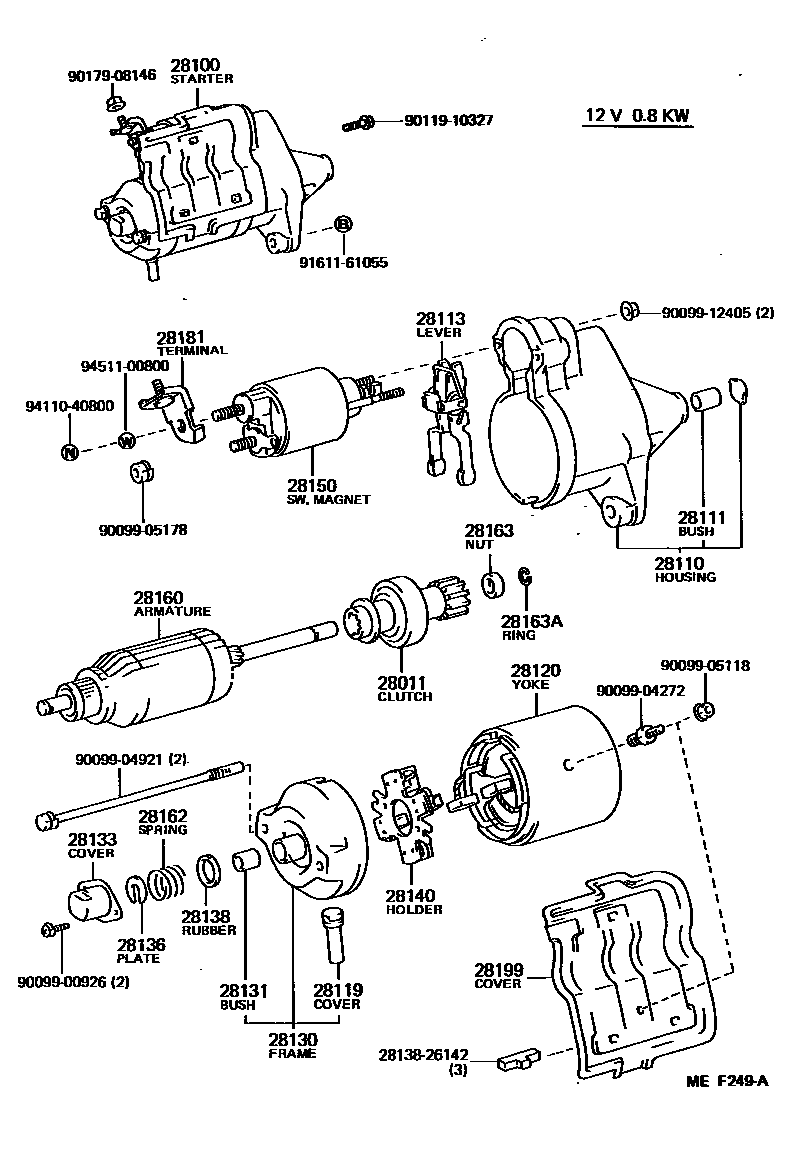

STARTER

0001 1 0002 1

28011CLUTCH SUB-ASSY, STARTER

main28011-15010i4AGEL..AW11198411-198803

12V 0.8KW

main28011-15010i4AG#..AW11198803-198912

main28011-26042i4AGELC..AW11..FRG;4AGEL..AW11..RHD..EUG198411-198912

12V 1.0KW

28100STARTER ASSY

main28100-15130i4AGELC..AW11..FRG;4AGEL..AW11..RHD..EUG198803-198912

12V 1.0KW

sub28100-15180

main28100-15130i4AG#..AW11..EUR198411-198803

12V 1.0KW,12V 1.0KW

sub28100-15180

main28100-15160i4AG#..AW11198803-198912

12V 0.8KW

main28100-15160i4AGEL..AW11198411-198803

12V 0.8KW,12V 0.8KW

28110HOUSING ASSY, STARTER DRIVE

main28110-15110i4AG#..AW11198803-198912

main28110-15110i4AGEL..AW11198411-198803

12V 0.8KW

main28110-15130i4AGELC..AW11..FRG;4AGEL..AW11..RHD..EUG198411-198912

12V 1.0KW

28111BUSH(FOR STARTER HOUSING)

main28111-51011i4AGEL..AW11198411-198803

12V 0.8KW

main28111-51011i4AG#..AW11198803-198912

28113LEVER, STARTER PINION DRIVE

main28113-15011i4AG#..AW11198411-198803

12V 0.8KW

main28113-15011i4AG#..AW11198803-198912

28119COVER, STARTER END FRAME

main28199-15160i4AG#..AW11198803-198912

main28199-15160i4AGEL..AW11198411-198803

12V 0.8KW

28120YOKE ASSY, STARTER

main28120-26071i4AGEL..AW11..LHD..EUG198411-198912

12V 1.0KW

main28120-26140i4AG#..AW11198803-198912

main28120-26140i4AGEL..AW11198411-198803

12V 0.8KW

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-13010i4AGELC..AW11..FRG;4AGEL..AW11..RHD..EUG198411-198912

12V 1.0KW

main28130-15160i4AG#..AW11198803-198912

main28130-15160i4AGEL..AW11198411-198803

12V 0.8KW

28131BUSH, COMMUTATOR END FRAME

main90099-10134i4AG#..AW11198803-198912

main90099-10134i4AGEL..AW11198411-198803

12V 0.8KW

28133COVER, BEARING(FOR END FRAME)

main28132-15010i4AG#..AW11198411-198803

12V 0.8KW

sub28132-15011

main28132-15010i4AG#..AW11198803-198912

sub28132-15011

28136PLATE, STARTER LOCK

main28136-15010i4AGEL..AW11198411-198803

12V 0.8KW

main28136-15010i4AG#..AW11198803-198912

28138RUBBER(FOR STARTER BEARING COVER)

main28138-15010i4AG#..AW11198803-198912

main28138-15010i4AGEL..AW11198411-198803

12V 0.8KW

28140HOLDER ASSY, STARTER BRUSH

main28140-15010i4AG#..AW11198803-198912

main28140-15010i4AG#..AW11198411-198803

12V 0.8KW

main28140-26070i4AGELC..AW11..FRG;4AGEL..AW11..RHD..EUG198411-198912

12V 1.0KW

28150SWITCH ASSY, MAGNET STARTER

main28150-13011i4AG#..AW11..EUR198411-198912

12V 1.0KW

main28150-37010i4AGEL..AW11198411-198803

12V 0.8KW

sub28150-37011

main28150-37010i4AG#..AW11198803-198912

sub28150-37011

28160ARMATURE ASSY, STARTER

main28160-15010i4AGEL..AW11198411-198803

12V 0.8KW

main28160-15010i4AG#..AW11198803-198912

main28160-26070i4AGELC..AW11..FRG;4AGEL..AW11..RHD..EUG198411-198912

12V 1.0KW

sub28160-26071

28162SPRING, STARTER BRAKE

main28162-15010i4AG#..AW11198411-198803

12V 0.8KW

main28162-15010i4AG#..AW11198803-198912

28163NUT OR COLLAR, PINION STOP, STARTER

main28163-40011i4AGEL..AW11198411-198803

12V 0.8KW

main28163-40011i4AG#..AW11198803-198912

28163ARING, SNAP(FOR STARTER PINION STOP NUT)

main90099-07047i4AG#..AW11198803-198912

main90099-07047i4AGEL..AW11198411-198803

12V 0.8KW

28181TERMINAL, STARTER

main82951-17010i4AGEL..AW11198411-198803

12V 0.8KW

main82951-17010i4AG#..AW11198803-198912

28199COVER, STARTER

main28159-15160i4AG#..AW11198411-198803

12V 0.8KW

main28159-15160i4AG#..AW11198803-198912

main28199-15130i4AGEL..AW11..LHD..EUG198411-198912

12V 1.0KW

sub28199-63050

2813826142RUBBER(FOR STARTER BEARING COVER)

main28138-26142

9009900926

main90099-00926

9009904272

main90099-04272

9009904921

main90099-04921

9009905118

main90099-05118

9009905178

main90099-05178

9009912405

main90099-12405

9011910327

main90119-10327

9017908146

main90179-08146

9161161055

main91611-61055

9411040800

main94110-40800

9451100800

main94511-00800

32 parts on this diagram · 2 diagrams in section
