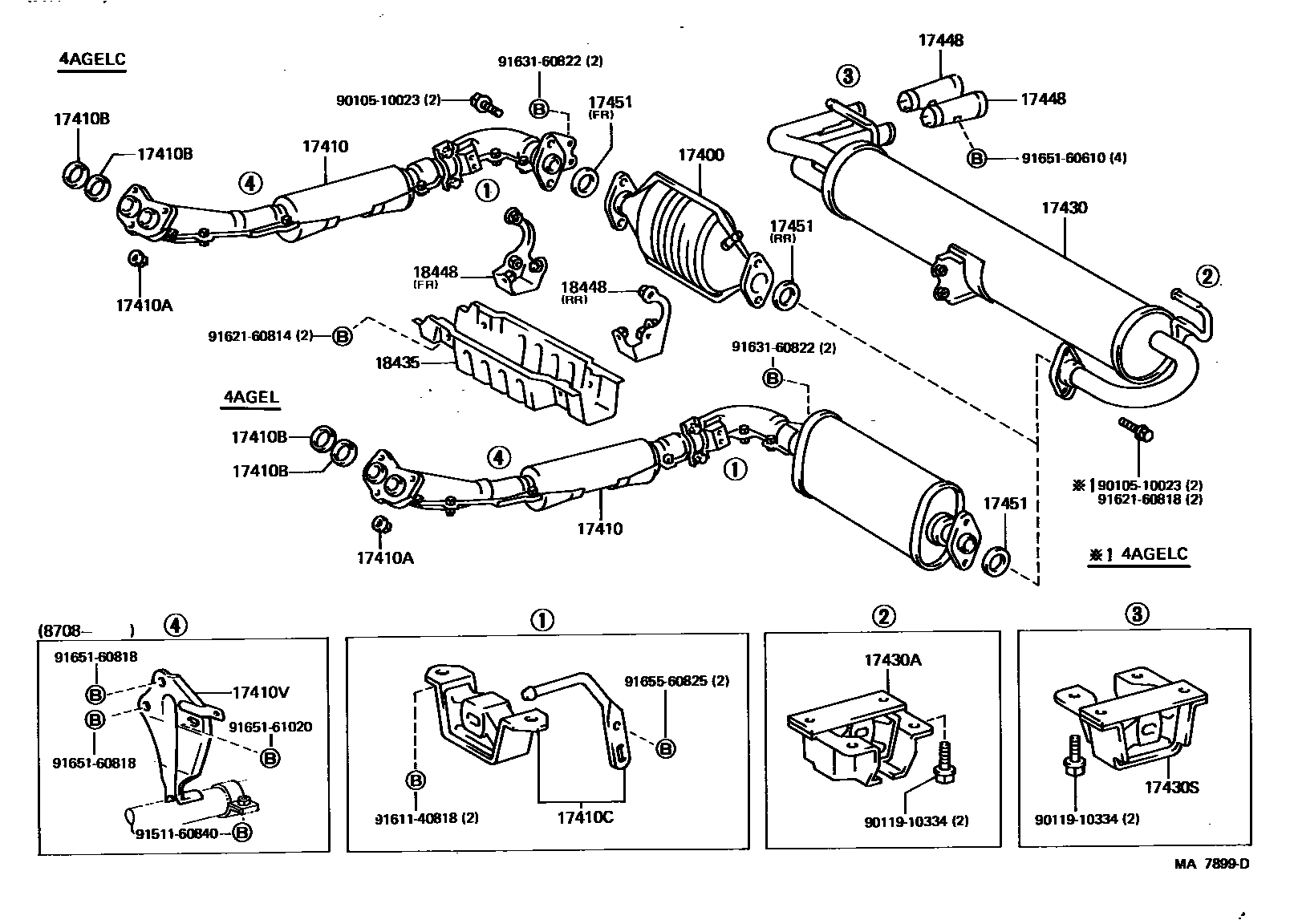

EXHAUST PIPE

17400CONVERTER ASSY, W/CATALYST

main18450-16070i4AGELC..AW11198511-198605

sub18450-16260

main18450-16150i4AGELC..AW11..FRG198605-198807

sub18450-16350

main18450-16260i4AGELC..AW11..ARL198708-198807

sub18450-16350

main18450-16350i4AGELC..AW11198807-198912

17410PIPE ASSY, EXHAUST, FRONT

main17410-16180i4AGELC..AW11198511-198708

main17410-16190i4AGEL..AW11198411-198708

main17410-16500i4AGELC..AW11198708-198912

main17410-16510i4AGEL..AW11198708-198912

17410ANUT, EXHAUST PIPE SET STUD BOLT

main90179-10070i4AG#..AW11198411-198912

17410BGASKET, EXHAUST PIPE

main90917-06004i4AG#..AW11198411-198912

sub90917-06039

17410CBRACKET, EXHAUST PIPE FRONT (FOR FRONT)

main17506-16010i4AG#..AW11198411-198708

main17506-16030i4AG#..AW11198708-198912

17410VBRACKET, EXHAUST PIPE FRONT (FOR REAR)

main17571-16220i4AGEL..AW11198708-198912

main17571-16241i4AGELC..AW11198708-198912

17430PIPE ASSY, EXHAUST, TAIL

main17430-16130i4AGELC..AW11..ARL198803-198912

main17430-16140i4AGELC..AW11198511-198803

sub17430-16141

main17430-16141i4AGELC..AW11..FRG198803-198912

sub17430-16130

main17430-16150i4AGEL..AW11198411-198912

17430ABRACKET, EXHAUST TAILPIPE(FOR FRONT)

main17507-16010i4AGEL..AW11198411-198502

sub17508-16031

main17508-16010i4AG#..AW11198502-198803

sub17508-16031

main17508-16031i4AG#..AW11198803-198912

17430SBRACKET, EXHAUST TAILPIPE (FOR REAR)

main17508-16010i4AG#..AW11198411-198912

sub17508-16031

17448BAFFLE, TAILPIPE

main17448-16010i4AG#..AW11198411-198805

sub17448-19015

main17448-19015i4AG#..AW11198805-198912

17451GASKET, EXHAUST PIPE

main90917-06004i4AGEL..AW11198411-198912

sub90917-06039

main90917-06012i4AGELC..AW11198511-198912

FR

sub90917-06045

main90917-06020i4AGELC..AW11198511-198912

RR

sub90917-06044

18435PROTECTOR, CATALYTIC CONVERTER

main18435-16030i4AGELC..AW11198511-198608

main18435-16031i4AGELC..AW11198608-198912

18448BRACKET, CONVERTER PROTECTOR, CENTER

main18438-16010i4AGELC..AW11198511-198912

FR

main18439-16010i4AGELC..AW11198511-198608

RR

main18439-16011i4AGELC..AW11198608-198912

RR

9010510023

main90105-10023

9011910334

main90119-10334

9151160840

main91511-60840

9161140818

main91611-40818

9162160814

main91621-60814

9162160818

main91621-60818

9163160822

main91631-60822

9165160610

main91651-60610

9165160818

main91651-60818

9165161020

main91651-61020

9165560825

main91655-60825

24 parts on this diagram · 1 diagram in section
