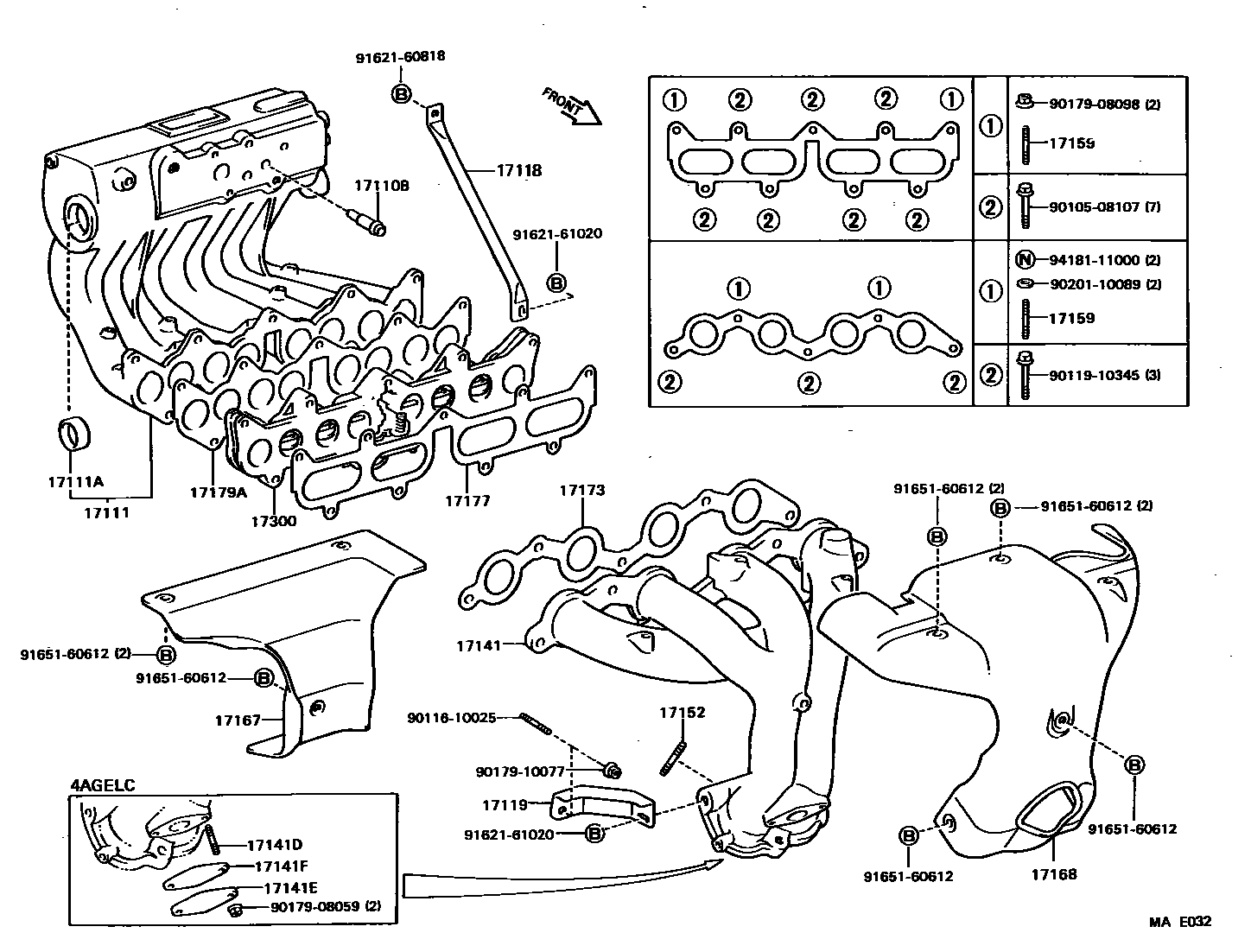

MANIFOLD

17110BUNION(FOR VENTILATION HOSE TO MANIFOLD)

main90405-10009i4AG#..AW11198411-198912

17111MANIFOLD, INTAKE

main17101-16020i4AGEL..AW11198411-198708

main17101-16040i4AGELC..AW11198511-198803

sub17101-16041

main17101-16041i4AGELC..AW11198803-198912

main17101-16130i4AGEL..AW11198708-198912

17111APLUG, NO.1

main96411-43500i4AG#..AW11198411-198912

17118STAY, MANIFOLD

main17125-16030i4AGEL..AW11198411-198506

sub17125-16031

main17125-16031i4AG#..AW11198506-198912

17119STAY, MANIFOLD, NO.2

main17118-16040i4AG#..AW11198411-198912

17141MANIFOLD, EXHAUST

main17141-16090i4AGELC..AW11198511-198708

main17141-16100i4AGEL..AW11198411-198708

main17141-16180i4AGEL..AW11198708-198912

sub17141-16260

main17141-16190i4AGELC..AW11198708-198912

17141DBOLT, STUD(FOR OXYGEN SENSOR)

main90116-08168i4AGELC..AW11198511-198912

17141EPLATE, EXHAUST MANIFOLD

main17148-41010i4AGELC..AW11198803-198912

17141FGASKET(FOR EXHAUST MANIFOLD PLATE)

main89466-20020i4AGELC..AW11198810-198912

main89466-30010i4AGELC..AW11198803-198810

sub89466-20020

17152BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)

main90116-10058i4AG#..AW11198411-198904

main90116-10146i4AG#..AW11198904-198912

17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)

main90116-08218i4AG#..AW11198502-198912

INTAKE MANIFOLD

main90116-10037i4AG#..AW11198411-198912

EXHAUST MANIFOLD

main92122-60850i4AGEL..AW11198411-198502

INTAKE MANIFOLD

17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1

main17167-16030i4AG#..AW11198411-198708

sub17167-16060

main17167-16050i4AG#..AW11198708-198912

17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2

main17168-16020i4AG#..AW11198411-198708

sub17168-16040

main17168-16060i4AG#..AW11198708-198912

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-16010i4AG#..AW11198411-198905

sub17173-16011

main17173-16011i4AG#..AW11198905-198912

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

main17177-16011i4AGEL..AW11198411-198506

sub17177-16012

main17177-16012i4AG#..AW11198506-198912

17179AGASKET, INTAKE MANIFOLD, NO.2

main17171-16011i4AGEL..AW11198411-198506

sub17171-16012

main17171-16012i4AG#..AW11198506-198912

17300VALVE ASSY, INTAKE AIR CONTROL

main17300-16011i4AG#..AW11198411-198912

9010508107

main90105-08107

9011610025

main90116-10025

9011910345

main90119-10345

9017908059

main90179-08059

9017908098

main90179-08098

9017910077

main90179-10077

9020110089

main90201-10089

9162160818

main91621-60818

9162161020

main91621-61020

9165160612

main91651-60612

9418111000

main94181-11000

28 parts on this diagram · 1 diagram in section
