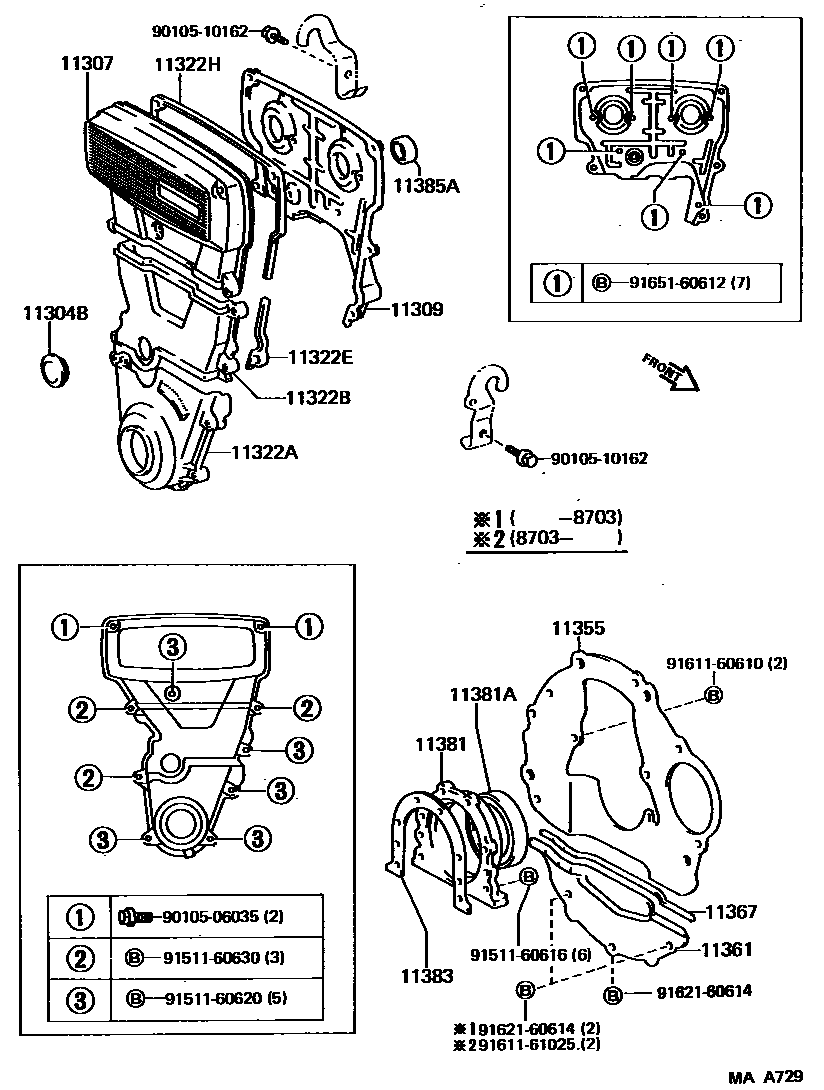

TIMING GEAR COVER & REAR END PLATE

11304BPLUG, SEMI CIRCULAR(FOR CHAIN COVER NO.2)

main90950-01425i4AG#..AW11198411-198601

OD=34

main90950-01534i4AG#..AW11198601-198912

OD=22

11307COVER, SUB-ASSY, TIMING BELT, NO.3

main11304-16020i4AG#..AW11198411-198912

11309COVER SUB-ASSY, TIMING BELT, NO.4

main11325-16011i4AG#..AW11198411-198912

11322ACOVER, TIMING BELT, NO.1

main11302-16010i4AG#..AW11198411-198601

sub11302-16011

main11302-16011i4AG#..AW11198601-198912

11322BCOVER, TIMING BELT, NO.2

main11303-16020i4AG#..AW11198411-198601

sub11303-16021

sub90109-10096

sub90109-10099

sub90950-01534

sub90950-01535

main11303-16021i4AG#..AW11198601-198912

11322EGASKET, TIMING BELT COVER, NO.2

main11329-16010i4AG#..AW11198411-198912

11322HGASKET, TIMING BELT COVER, NO.3

main11319-16010i4AGEL..AW11198411-198504

sub11319-16011

main11319-16011i4AG#..AW11198504-198912

11355PLATE, REAR END

main11355-15050i4AG#..AW11198411-198609

main11355-15060i4AG#..AW11198609-198912

11361COVER, FLYWHEEL HOUSING UNDER

main11361-15021i4AG#..AW11198411-198703

sub11361-16020

main11361-16020i4AG#..AW11198703-198803

sub11361-16040

main11361-16040i4AG#..AW11198803-198912

11367GASKET, FLYWHEEL HOUSING UNDER

main11367-15030i4AG#..AW11198411-198912

11381RETAINER, ENGINE REAR OIL SEAL

main11381-15010i4AG#..AW11198411-198912

11381ASEAL, ENGINE REAR OIL

main90311-70004i4AG#..AW11198411-198912

sub90311-70007

11383GASKET, ENGINE REAR OIL SEAL RETAINER

main11383-15010i4AG#..AW11198411-198912

sub11383-15011

11385ASEAL, OIL(FOR CAMSHAFT)

main90311-35013i4AG#..AW11198411-198912

sub90311-35022

9010506035

main90105-06035

9010510162

main90105-10162

9151160616

main91511-60616

9151160620

main91511-60620

9151160630

main91511-60630

9161160610

main91611-60610

9161161025

main91611-61025

9162160614

main91621-60614

9165160612

main91651-60612

23 parts on this diagram · 1 diagram in section
