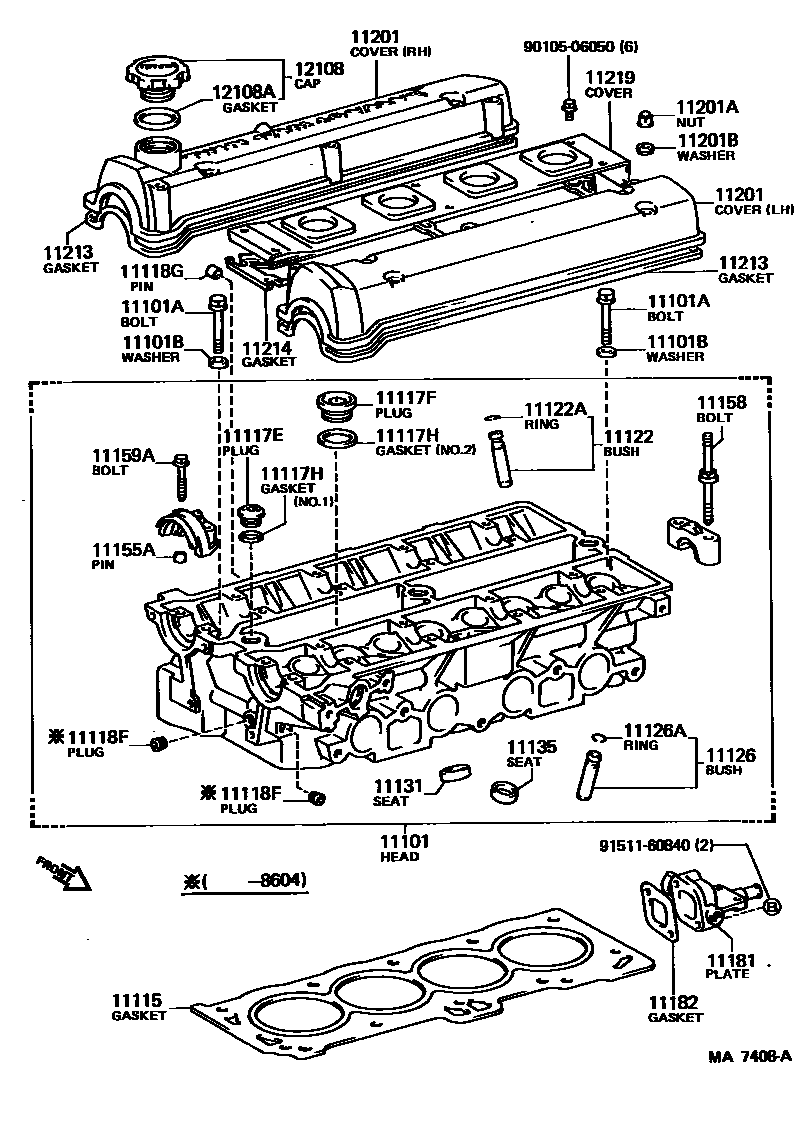

CYLINDER HEAD
11101ABOLT(FOR CYLINDER HEAD SET)
11101BWASHER, PLATE(FOR CYLINDER HEAD SET)
11117EPLUG, W/HEAD STRAIGHT SCREW, NO.1
11117FPLUG, W/HEAD STRAIGHT SCREW, NO.2
11117HGASKET(FOR WATER HOLE)
NO.1
NO.1
NO.2
11118FPLUG, TAPER, NO.1
11118GPIN, SLOTTED SPRING, NO.1
11122BUSH, INTAKE VALVE GUIDE
STD,STD
STD
O/S 0.05
O/S 0.05,O/S 0.05
11122ARING, SHAFT SNAP (FOR VALVE GUIDE BUSH)
11126BUSH, EXHAUST VALVE GUIDE
STD
STD,STD
O/S 0.05
O/S 0.05,O/S 0.05
11126ARING, SHAFT SNAP(FOR VALVE GUIDE BUSH)
11131SEAT, INTAKE VALVE
STD,STD
STD
O/S 0.03,O/S 0.03
O/S 0.03
11135SEAT, EXHAUST VALVE
STD,STD
STD
O/S 0.03,O/S 0.03
O/S 0.03
11155APIN, RING W/HEAD
11158BOLT, STUD(FOR HEAD TO CYLINDER HEAD COVER)
L=74.5
11159ABOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
11181PLATE, CYLINDER HEAD, REAR
11201COVER SUB-ASSY, CYLINDER HEAD
RH
LH
11201ANUT, CAP(FOR CYLINDER HEAD COVER)
11201BWASHER, SEAL(FOR CYLINDER HEAD COVER)
sub90210-06013
11213GASKET, CYLINDER HEAD COVER
11214GASKET, CYLINDER HEAD COVER, NO.2
11219COVER, CYLINDER HEAD, NO.3
12108AGASKET(FOR OIL FILLER CAP)
9010506050
main90105-06050
9151160840
main91511-60840
