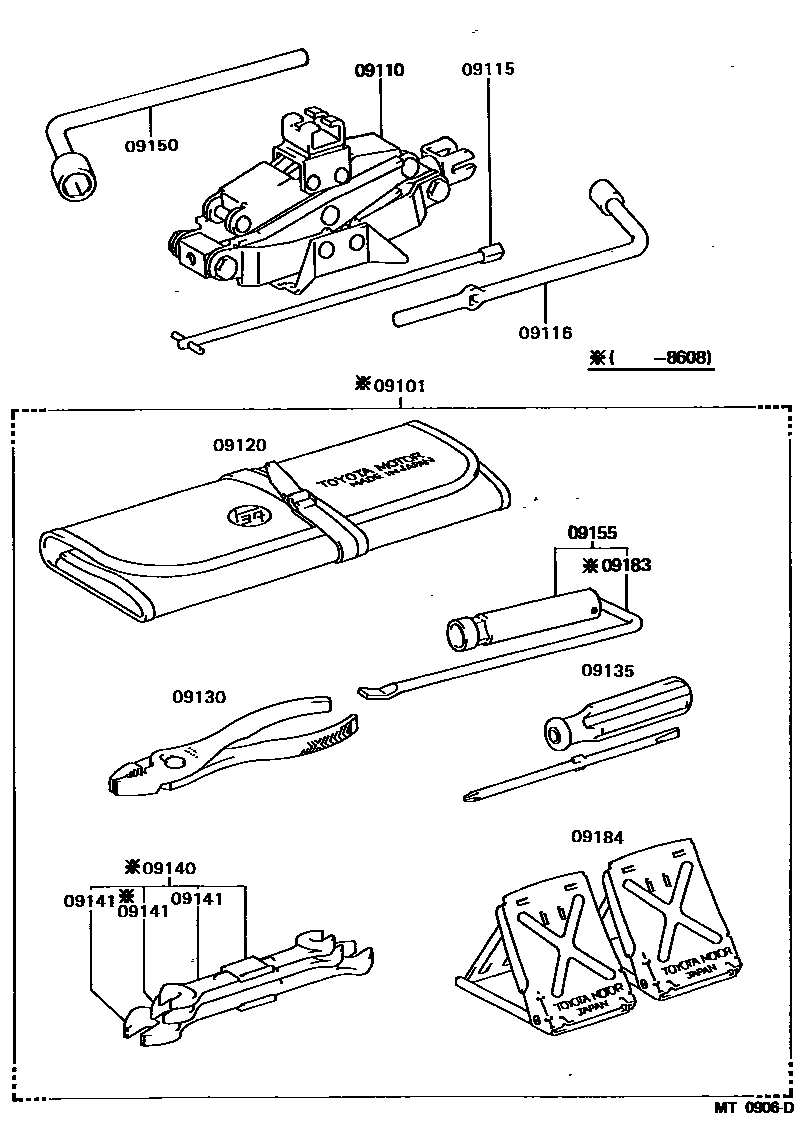

STANDARD TOOL

09101TOOL SET, STANDARD W/O JACK

main09102-10020iAW11..FRG198608-198608

main09102-10026iAW11..RHD;AW11..LHD..EUG;AW11..LHD..GEN198411-198608

09110JACK ASSY

main09110-20042iAW11..ARL198708-198912

main09111-17010iAW11..EUR,GEN198602-198912

sub09111-22H00

main09118-17010iAW11198411-198602

sub09111-17010

09115ROD SUB-ASSY, JACK HANDLE

main09115-16030iAW11..ARL198708-198912

main09115-32010iAW11..EUR,GEN198411-198912

09116LEVER, JACK HANDLE

main09116-16010iAW11198411-198608

main09116-17010iAW11198608-198912

09120BAG, TOOL

main09120-10030iAW11198608-198609

main09120-12011iAW11198411-198912

main09120-17010iAW11..ARL198708-198912

sub09120-17020

09130PLIERS

main99913-11500iAW11198411-198912

09135DRIVER, SCREW

main99915-10700iAW11198411-198912

09140SPANNER SET

main09140-12011iAW11198411-198608

09141SPANNER

main99914-10810iAW11198411-198803

8 X 10,8X10

main99914-10810iAW11198803-198912

8 X 10

main99914-11012iAW11198411-198608

10 X 12,10X12

main99914-11214iAW11198608-198803

12 X 14,12X14

main99914-11214iAW11198803-198912

12 X 14

main99914-11417iAW11198411-198608

14 X 17,14X17

09150WRENCH, HUB NUT BOX

main09150-26010iAW11..ARL198803-198912

09155WRENCH, SPARK PLUG

main09155-00130iAW11..RHD;AW11..LHD..EUG;AW11..LHD..GEN198511-198912

09183WRENCH, WHEEL CAP

main09183-00010iAW11..FRG198411-198912

09184STOPPER, WHEEL

main09184-00010iAW11198411-198912

13 parts on this diagram · 1 diagram in section
