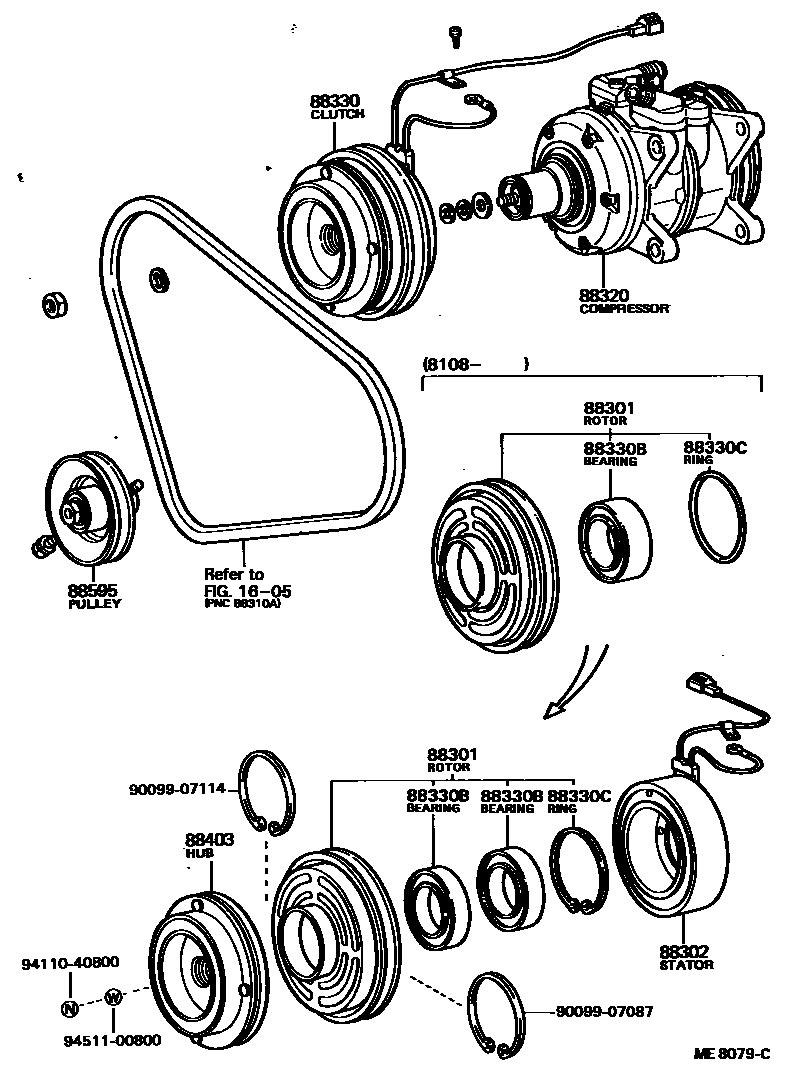

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1 0004 1

1605

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-12040iTE71..GEN197908-198108

main88412-12090iTE72..ARL198108-198305

main88412-14010iAE71,TE71..ARL,GEN,SAA198108-198410

main88412-14020iKE70..4D..ARL198108-198707

sub88412-36030

main88412-14030iAE71..GEN198508-198707

main88412-20060iKE70..GEN197908-198108

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-14050iAE71,KE70..ARL198108-198707

main88411-16010iAE71..GEN198508-198707

main88411-22040iKE70,TE71..GEN197908-198108

sub88411-14040

88320COMPRESSOR ASSY, COOLER

main88320-12190iTE71..RHD..GEN197908-198707

main88320-12191iKE70..LHD..GEN198703-198707

main88320-12201iAE71198305-198410

main88320-12210iTE72..ARL198108-198305

main88320-12230iKE70..SED..GEN197908-198707

main88320-12231iKE70..RHD..4F..GEN198703-198707

main88320-12240iAE71..GEN198508-198707

88330CLUTCH ASSY, MAGNET

main88410-12130iTE72..ARL198108-198305

main88410-14090iAE71,TE71..ARL,GEN,SAA198108-198410

main88410-14100iKE70..4D..ARL198108-198707

main88410-16010iAE71..GEN198508-198707

main88410-20130iKE70..GEN197908-198108

sub88410-14100

main88410-22060iTE71..GEN197908-198108

sub88410-14090

88330BBEARING, MAGNET CLUTCH

main90099-10117iKE70,TE71..GEN197908-198108

sub90099-10108

main90099-10133iAE71,TE72..ARL198108-198707

main90099-10135iAE71..GEN198508-198707

88330CRING, SNAP (FOR MAGNET CLUTCH)

main90099-07094iKE70..GEN197908-198707

main90099-07114iAE71..GEN198108-198707

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-12030iKE70..GEN198703-198707

main88403-14030iKE70..LHD..DX..EUG198108-198707

sub88403-12030

main88403-14040iAE71..GEN198508-198707

main88403-22030iKE70..GEN197908-198108

sub88403-12030

main88403-26030iTE71..GEN197908-198108

sub88403-30270

88595PULLEY, COOLER COMPRESSOR IDLE

main88440-12050iKE70..LHD..DX..EUG198108-198707

main88440-12061iAE71198305-198410

main88440-12070iTE7#..ARL,GEN,SAA198108-198406

main88440-12120iAE71..GEN198508-198707

main88440-30250iTE71..GEN197908-198108

sub88440-28050

9009907087

main90099-07087

9009907114

main90099-07114

9411040800

main94110-40800

9451100800

main94511-00800

13 parts on this diagram · 4 diagrams in section
