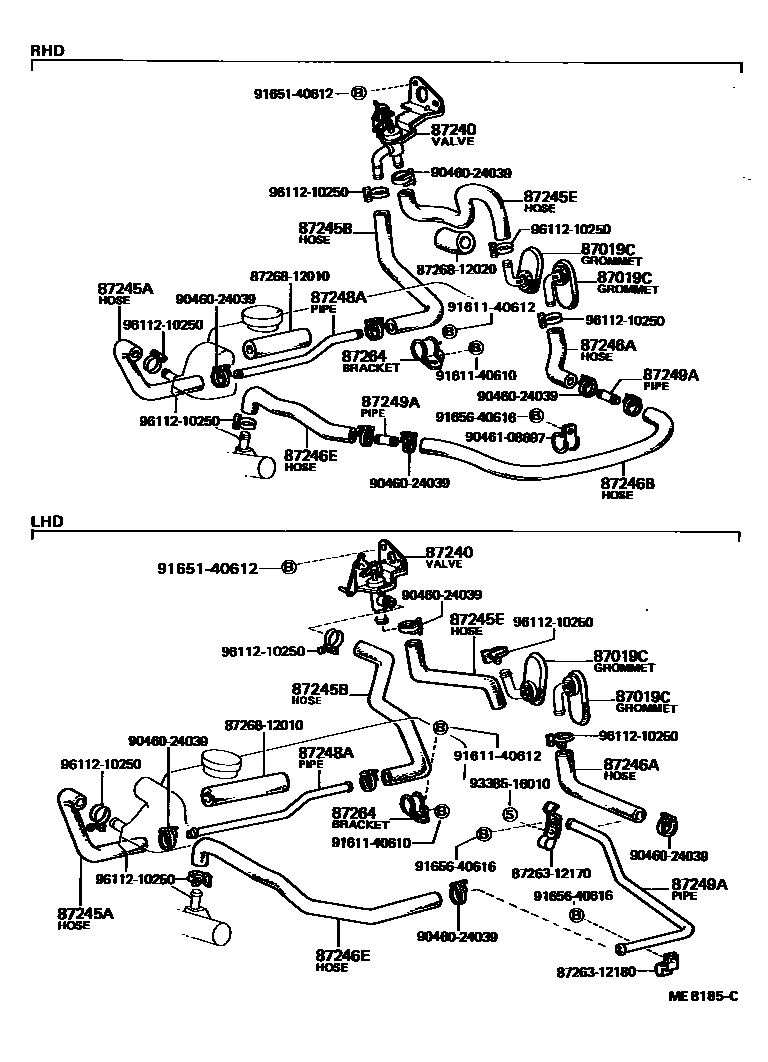

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1 0003 1 0004 1

87019CGROMMET, HEATER HOSE

main90480-01015iAE71,CE70,KE70,TE7#197908-198707

87240VALVE ASSY, HEATER WATER

main87240-12100iAE71..SA197908-198707

main87240-12110iTE7#..RHD..(ARL,EUR)197908-198502

main87240-12120iTE7#..RHD..(GEN,SA)197908-198204

main87240-12130iKE70..SA197908-198204

main87240-12140iKE70,TE71..LHD..GEN197908-198108

main87240-12150iKE70,TE71..LHD..(GEN,SAA)197908-198707

main87240-12180iAE71,CE70..LHD198210-198707

87245AHOSE, HEATER WATER, INLET A

main87245-12261iKE70..SA197908-198204

main87245-12390iAE71..RHD198305-198707

main87245-12420iTE7#..RHD197908-198502

sub87245-12850

main87245-12500iTE7#..LHD..(DX,SE,SR,STD,XE)197908-198305

main87245-12570iTE71..GT197908-198305

main87245-12590iKE70..ARL,EUR,GEN,SAA198108-198707

main87245-12600iCE70..RHD198210-198707

main87245-12630iAE71..GEN198508-198707

main87245-12660iCE70..LHD198210-198707

87245BHOSE, HEATER WATER, INLET B

main87245-12360iKE70..RHD197908-198707

main87245-12480iKE70..LHD197908-198707

sub99552-31000

87245EHOSE, HEATER WATER, INLET E

main87245-12350iAE71,CE70,KE70..RHD197908-198707

main87245-12410iTE7#..RHD197908-198502

main87245-12490iCE70,KE70,TE7#..LHD197908-198707

main87245-12640iAE71..GEN198508-198707

87246AHOSE, HEATER WATER, OUTLET A

main87209-12272iAE71..RHD198305-198707

main87245-12380iKE70,TE7#..RHD197908-198707

main87245-12520iCE70,KE70,TE7#..LHD197908-198707

main87245-12610iCE70..RHD198210-198707

main87245-12620iAE71..GEN198508-198707

87246BHOSE, HEATER WATER, OUTLET B

main87245-12470iKE70..RHD197908-198707

sub99552-31000

main99552-30580iTE7#..RHD197908-198502

*H,L=565

sub99552-30700

87246EHOSE, HEATER WATER, OUTLET E

main87245-12370iKE70..RHD197908-198707

main87245-12430iTE7#..RHD197908-198502

main87245-12530iTE71..SAA197908-198308

main87245-12540iKE70..LHD197908-198707

main87245-12560iTE71..GT197908-198305

main87245-12650iCE70..LHD198210-198707

87248APIPE, HEATER WATER INLET, A

main87208-20140iCE70198210-198307

main87208-20141iCE70198307-198707

main87248-12150iKE70197908-198204

main87248-12220iKE70..SA198108-198707

87249APIPE, HEATER WATER OUTLET, A

main87208-12012iAE71..RHD198305-198707

main87208-12020iAE71..GEN198508-198707

main87248-12191iKE70..LHD..EUR;KE70..SED..SAA197908-198707

main87248-12200iCE70,TE7#..LHD197908-198707

main87248-12210iKE70..(DV,WG)..LHD..(GEN,SAA)197910-198707

main87248-14090iKE70,TE7#..RHD197908-198707

87264BRACKET, HEATER WATER HOSE

main87263-12130iKE70197908-198707

main87263-12190iCE70..RHD198210-198707

8726312170BRACKET, HEATER WATER PIPE, NO.1

main87263-12170

8726312180BRACKET, HEATER WATER PIPE, NO.1

main87263-12180

8726812010COCK, WATER HOSE DRAIN(FOR REAR HEATER)

main87268-12010

8726812020COCK, WATER HOSE DRAIN(FOR REAR HEATER)

main87268-12020

9046024039

main90460-24039

9046108697

main90461-08697

9161140610

main91611-40610

9161140612

main91611-40612

9165140612

main91651-40612

9165640616

main91656-40616

9338516010

main93385-16010

9611210250

main96112-10250

23 parts on this diagram · 4 diagrams in section
