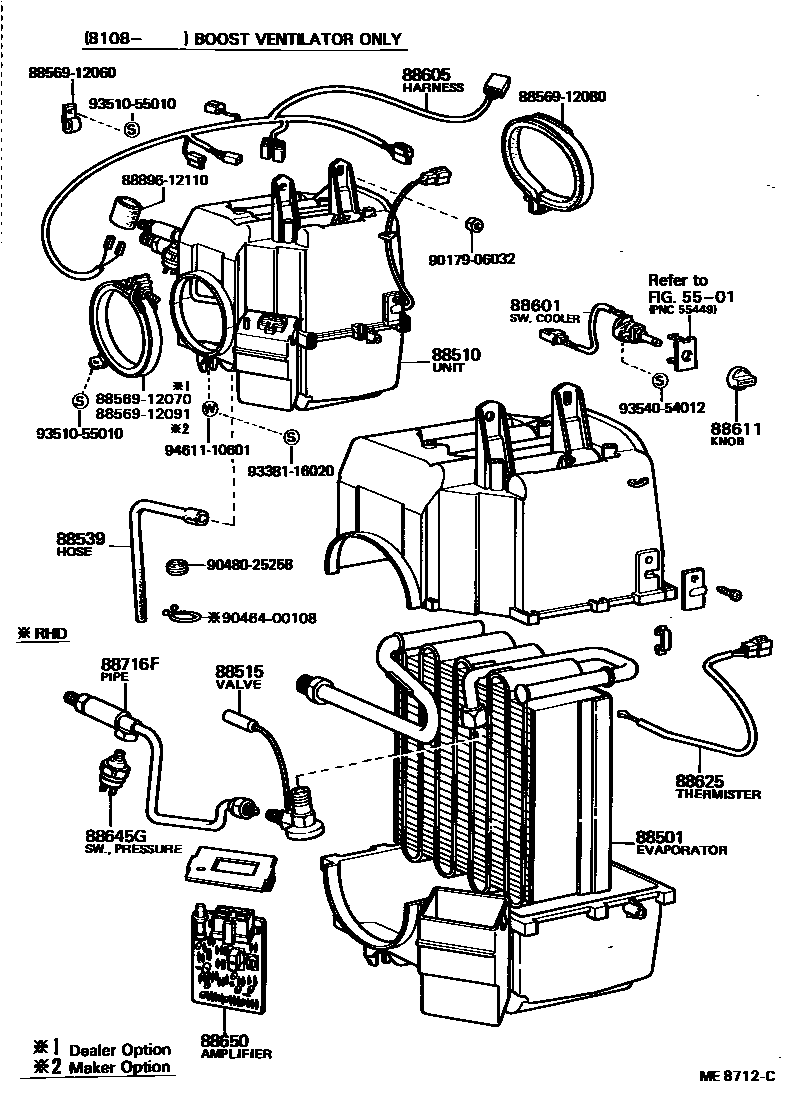

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1 0002 1 0003 1

5501

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-12231iKE70..5F..GEN198108-198509

main88501-12232iKE70..5F..GEN198509-198601

sub88501-12233

main88501-12233iKE70..5F..GEN198601-198707

main88501-12240iKE70,TE71..RHD..GEN197908-198509

main88501-12240iKE70,TE71..RHD..GEN198108-198508

BOOST VENTILATOR ONLY

main88501-12241iKE70..RHD..4F..GEN198509-198603

sub88501-12242

main88501-12242iKE70..RHD..4F..GEN198603-198707

main88501-12260iKE70..LHD..DX197908-198509

main88501-12261iAE71,KE70..LHD..GEN198509-198603

sub88501-12262

main88501-12262iKE70..LHD..DX198601-198707

main88501-12270iTE71..LHD..(GEN,SAA)197908-198305

88510UNIT ASSY, COOLER

main88510-12230iKE70..SAA198305-198308

main88510-12251iKE70..5F..GEN198108-198509

sub88510-12252

main88510-12252iKE70..5F..GEN198509-198707

main88510-12260iKE70,TE71..RHD..GEN198108-198508

BOOST VENTILATOR ONLY

sub88510-12261

main88510-12260iKE70,TE71..RHD..GEN197908-198108

sub88510-12261

main88510-12271iAE71198305-198410

sub88510-12272

main88510-12280iKE70..LHD..(GEN,SAA)198108-198308

BOOST VENTILATOR ONLY

sub88510-12281

main88510-12280iKE70..LHD..GEN197908-198108

sub88510-12281

main88510-12300iTE71..LHD..GEN197908-198108

main88510-12300iTE71..LHD..(GEN,SAA)198108-198305

BOOST VENTILATOR ONLY

main88510-12330iKE70..LHD..DX198108-198509

sub88510-12331

main88510-12331iKE70..LHD..DX198509-198707

main88510-12340iTE71..LHD..(GEN,SAA)198108-198305

main88510-12490iAE71,KE70..LHD..GEN198305-198509

BOOST VENTILATOR ONLY

sub88510-12491

main88510-12491iAE71,KE70..LHD..GEN198509-198707

BOOST VENTILATOR ONLY

main88510-12500iAE71,KE70..LHD..GEN198305-198509

sub88510-12501

main88510-12501iAE71,KE70..LHD..GEN198509-198707

main88510-12700iKE70..RHD..4F..GEN198508-198509

BOOST VENTILATOR ONLY

sub88510-12701

main88510-12701iKE70..RHD..4F..GEN198509-198707

BOOST VENTILATOR ONLY

main88510-12710iKE70..RHD..4F..GEN198508-198509

sub88510-12711

main88510-12711iKE70..RHD..4F..GEN198509-198707

88515VALVE, COOLER EXPANSION

main88515-16031iKE70..LHD..DX198509-198707

main88515-20040iAE71,TE72..ARL197908-198509

sub88515-16031

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-12040iKE70,TE72..(LB,SED,WG)..ARL197908-198707

main88539-12050iKE70..LHD..DX197908-198707

sub88539-12040

88601SWITCH SUB-ASSY, COOLER CONTROL

main84660-12010iTE72..ARL198108-198707

AIR MIX HEATER

main84660-12010iAE71;KE70..4D..ARL198108-198410

main84660-12020iAE71,KE70,TE71..LHD..(GEN,SAA)198108-198707

AIR MIX HEATER

main84660-12020iKE70..LHD..DX198402-198707

main88610-12020iKE70,TE71..RHD..GEN197908-198108

main88610-12021iKE70,TE71..RHD..GEN198108-198508

BOOST VENTILATOR ONLY

main88610-12030iKE70,TE71..LHD..GEN197908-198108

main88610-12031iAE71,KE70,TE71..LHD..(GEN,SAA)198108-198707

BOOST VENTILATOR ONLY

88605HARNESS SUB-ASSY, COOLER WIRING, NO.1

main88605-12201iKE70,TE71..RHD..GEN198108-198707

main88605-12210iKE70,TE71..RHD..GEN197908-198108

main88605-12211iKE70,TE71..RHD..GEN198108-198707

BOOST VENTILATOR ONLY

main88605-12221iAE71198305-198410

main88605-12240iKE70,TE71..LHD..GEN197908-198108

main88605-12241iAE71,KE70,TE71..LHD..(GEN,SAA)198108-198707

BOOST VENTILATOR ONLY

main88605-12310iAE71,KE70,TE71..LHD..(GEN,SAA)198108-198707

88611KNOB, COOLER CONTROL SWITCH

main88611-12030iKE70,TE71..GEN197908-198108

BOOST VENTILATOR ONLY

main88611-12031iAE71,KE70,TE71..GEN,SAA198108-198707

BOOST VENTILATOR ONLY

88625THERMISTOR, COOLER, NO.1

main88625-12050iKE70,TE71..GEN197908-198108

sub88625-87001

main88625-12050iKE70,TE71..GEN,SAA198108-198406

BOOST VENTILATOR ONLY

sub88625-87001

main88625-12070iAE71,TE72..ARL198108-198707

main88625-12070iAE71,KE70..GEN198305-198707

BOOST VENTILATOR ONLY

88645GSWITCH, PRESSURE

main88645-12020iAE71,KE70,TE71..GEN,SAA198108-198707

main88645-12020iKE70..RHD..GEN198305-198707

BOOST VENTILATOR ONLY

main88645-30250iKE70,TE71..GEN197908-198108

main88645-30250iKE70,TE71..RHD..GEN198108-198504

BOOST VENTILATOR ONLY

88650AMPLIFIER ASSY, COOLER STABILIZER

main88650-14070iTE72..ARL197908-198707

main88650-16020iAE71198305-198410

88716FPIPE, COOLER REFRIGERANT LIQUID, F

main88716-12470iKE70,TE71..RHD..GEN197908-198108

main88716-12470iKE70,TE71..RHD..GEN198108-198707

BOOST VENTILATOR ONLY

main88716-12490iKE70,TE71..LHD..GEN197908-198707

main88716-12530iKE70,TE71..RHD..GEN198108-198707

8856912060CLAMP (FOR COOLER RELAY)

main88569-12060

8856912070CLAMP (FOR COOLER RELAY)

main88569-12070

8856912080CLAMP (FOR COOLER RELAY)

main88569-12080

8856912091CLAMP (FOR COOLER RELAY)

main88569-12091

8889612110PLATE, COOLER AIR OUTLET GRILLE ORNAMENT

main88896-12110

9017906032

main90179-06032

9046400108

main90464-00108

9048025258

main90480-25258

9338116020

main93381-16020

9351055010

main93510-55010

9354054012

main93540-54012

9461110601

main94611-10601

24 parts on this diagram · 3 diagrams in section
