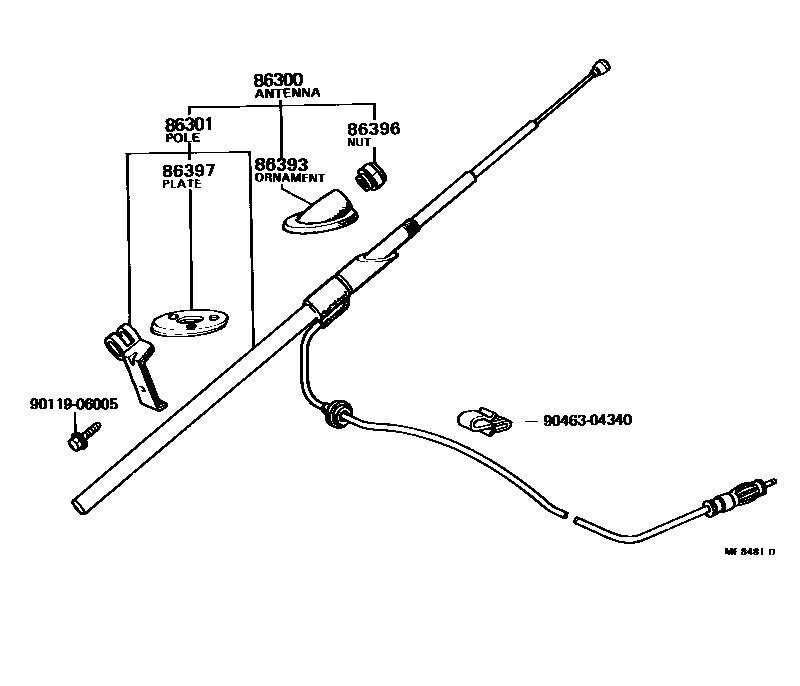

ANTENNA

86300ANTENNA ASSY, W/HOLDER

main86300-12150iKE70,TE71..(DV,SED,WG)..RHD..(EUR,GEN)197908-198305

sub86300-12151

main86300-12151iKE70..2D..ARL198108-198111

sub86300-12152

main86300-12152iCE70,KE70,TE71..(DV,SED,WG)..RHD..(EUR,GEN)198111-198707

main86300-12170iKE70,TE7#..(CP,LB)..RHD197908-198108

sub86300-12171

main86300-12171iKE70,TE7#..(CP,LB)..RHD..(ARL,EUR,GEN)198108-198202

sub86300-12172

main86300-12172iTE72..(SE,XE)..(EUR,SA)198202-198406

main86300-12180iKE70,TE71..(DV,SED,WG)..LHD197908-198108

sub86300-12181

main86300-12181iTE71..LHD..4D;KE70..LHD..(GL,STD,XL);KE70..(SED,WG)..LHD..DX..EUG;KE70..(SED,WG)..LHD..DX..(GEN,SAA)198108-198111

sub86300-12182

main86300-12182iTE71..LHD..4D;KE70..LHD..(GL,STD,XL);KE70..(SED,WG)..LHD..DX..EUG;KE70..(SED,WG)..LHD..DX..(GEN,SAA)198111-198202

sub86300-12183

main86300-12183iKE70..LHD..(GL,STD,XL);AE71,CE70,TE71..(DV,SED,WG)..LHD;KE70..(SED,WG)..LHD..DX..(EUG,SDZ);KE70..(SED,WG)..LHD..DX..(GEN,SAA)198202-198707

main86300-12190iKE70,TE7#..(CP,LB)..LHD197908-198108

sub86300-12191

main86300-12191iKE70,TE71..(CP,LB)..LHD198108-198202

sub86300-12192

main86300-12193iTE71..SAA198202-198308

86301POLE SUB-ASSY, ANTENNA

main86301-12020iKE70,TE7#..(CP,LB)..RHD197908-198108

sub86301-12021

main86301-12021iKE70,TE7#..(CP,LB)..RHD..(ARL,EUR,GEN)198108-198202

sub86301-12022

main86301-12022iKE70,TE7#..(CP,LB)..RHD..(ARL,EUR,GEN)198202-198406

main86301-12150iKE70,TE71..(DV,SED,WG)..RHD..(ARL,EUR,GEN)197908-198111

sub86301-12151

main86301-12151iAE71,KE70,TE7#..(DX,GL,STD)..SA198111-198707

main86301-12180iKE70,TE71..(DV,SED,WG)..LHD197908-198111

sub86301-12181

main86301-12181iTE71..LHD..4D;KE70..LHD..(GL,STD,XL);KE70..(SED,WG)..LHD..DX..EUG;KE70..(SED,WG)..LHD..DX..(GEN,SAA)198111-198202

sub86301-12182

main86301-12182iKE70..LHD..(GL,STD,XL);AE71,CE70,TE71..(DV,SED,WG)..LHD;KE70..(SED,WG)..LHD..DX..(EUG,SDZ);KE70..(SED,WG)..LHD..DX..(GEN,SAA)198202-198707

main86301-12190iKE70,TE7#..(CP,LB)..LHD197908-198108

sub86301-12191

main86301-12191iKE70,TE71..(CP,LB)..LHD198108-198202

sub86301-12192

main86301-12193iTE71..SAA198202-198308

86393ORNAMENT, ANTENNA

main86392-12010iKE70,TE71..(DV,SED,WG)..(EUR,GEN)197908-198108

sub86392-12011

main86392-12011iKE70..(SED,WG)..DX..(EUG,SDZ);KE70..(SED,WG)..DX..(ARL,GEN,SAA);KE70..(GL,STD,XL)..(ARL,EUR,GEN,SAA);AE71,CE70,TE71..(DV,SED,WG)..(ARL,EUR,GEN)198108-198707

main86392-12020iKE70,TE7#..CP,LB197908-198108

sub86392-12021

main86392-12021iTE72..(SE,XE)..(ARL,EUR);KE70,TE71..(CP,LB)..(EUR,GEN,SAA)198108-198406

86396NUT, ANTENNA

main86396-12010iTE72..(SE,XE)..(EUR,SA)198108-198406

main90179-12026iCE70,KE70..EUR198108-198707

main90179-14001iKE70,TE71..(DV,SED,WG)..(EUR,GEN)197908-198108

sub90179-12026

main90179-14002iKE70,TE7#..CP,LB197908-198108

sub86396-12010

86397PLATE, ANTENNA EARTH

main86397-12010iAE71,KE70..(DV,WG)..(3FC,4F)..GEN198111-198707

main86397-12020iKE70,TE7#..(CP,LB)..RHD..(ARL,EUR,GEN)198202-198406

9011906005

main90119-06005

9046304340

main90463-04340

7 parts on this diagram · 1 diagram in section
