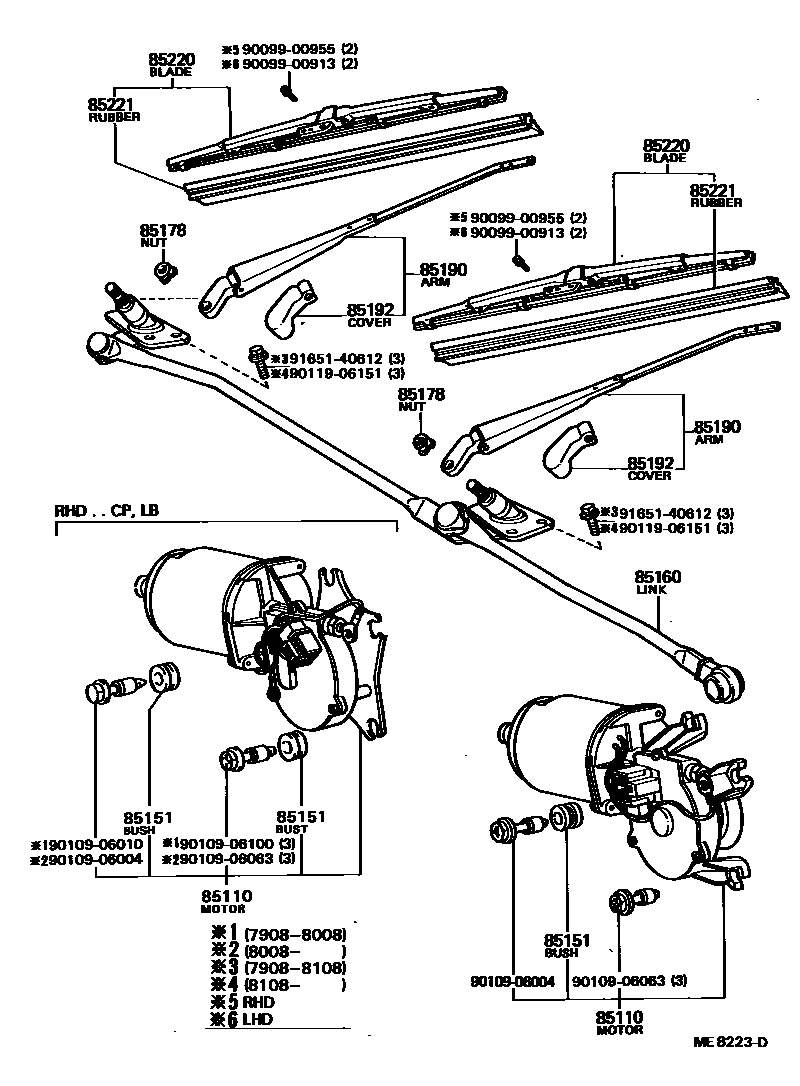

WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-12200iAE71,CE70,KE70,TE7#..(DV,SED,WG)..RHD197908-198707

main85110-12211iKE70,TE7#..(CP,LB)..RHD198008-198108

sub85110-12200

main85110-12260iTE71..GT..GEN197908-198707

COLD SPEC

sub85110-12261

main85110-12270iKE70..(CP,DV,LB)..LHD;KE70..(SED,WG)..LHD..EUG;KE70..(SED,WG)..LHD..GEN;TE71..LHD..(DX,SE,SR,STD,XE)197908-198008

sub85110-12271

main85110-12310iTE71..GT197908-198707

main85120-12120iKE70,TE7#..(CP,LB)..RHD197908-198008

85151BUSH, WINDSHIELD WIPER MOTOR GEAR HOUSING COVER

main85151-22070iKE70,TE7#..LHD197908-198707

85160LINK ASSY, WINDSHIELD WIPER

main85160-12231iKE70,TE7#..SED..SA197908-198305

sub85160-12300

main85160-12240iKE70,TE7#..(CP,LB)..RHD197908-198008

sub85160-12241

main85160-12241iTE7#..SE..SA198008-198204

main85160-12260iTE71..LHD..4D;KE70..WG..LHD..GEN;KE70..WG..LHD..EUG;KE70..SED..LHD..(2FC,5F);KE70..(DV,SED)..LHD..STD;KE70..SED..LHD..4F..DX..EUG;KE70..SED..LHD..4F..DX..GEN197908-198108

sub85160-12261

main85160-12270iKE70..(DV,SED,WG)..LHD..EUR197908-198103

COLD SPEC

sub85160-12260

main85160-12280iKE70,TE71..(CP,LB)..LHD..EUG197908-198108

sub85160-12281

main85160-12290iKE70,TE7#..(CP,LB)..LHD..EUR197908-198103

COLD SPEC

sub85160-12280

main85160-12300iKE70,TE7#..(DX,GL,STD)..SA198108-198707

main85160-12310iAE71,CE70,KE70,TE71..(DV,SED,WG)..LHD..(EUR,GEN)198108-198707

sub85160-12261

main85160-12320iKE70,TE71..(CP,LB)..RHD198108-198406

main85160-12330iKE70,TE7#..(CP,LB)..LHD198108-198406

sub85160-12281

85178NUT (FOR FRONT WIPER ARM SETTING)

main90176-08016iKE70,TE7#197908-198707

main90179-08026iTE72..(SE,XE)..(EUR,SA)198108-198406

85190ARM ASSY, WINDSHIELD WIPER

main85190-12040iAE71,CE70,KE70..LHD198508-198707

LH

sub85190-12041

main85190-12421iKE70..4D..ARL197908-198305

main85190-12430iKE70,TE7#..(CP,LB)..RHD197908-198204

RH

main85190-12450iKE70,TE71..(DV,SED,WG)..LHD197908-198108

main85190-12460iKE70..RHD..EUG197908-198001

sub85190-12421

main85190-12470iTE71..RHD..EUG197908-198004

RH

main85190-12480iKE70,TE7#..(CP,LB)..LHD197908-198108

LH

main85190-12500iKE70,TE7#..(DX,GL,STD)..SA198108-198707

RH

sub85210-12030

main85190-12510iCE70,KE70,TE71..(DV,SED,WG)..LHD198108-198707

RH

main85190-12520iKE70,TE7#..(CP,LB)..RHD198108-198110

RH

sub85190-12550

main85190-12530iTE72..SDN;KE70,TE71..(CP,LB)..LHD..(GEN,SAA)198108-198110

RH

sub85190-12531

main85190-12531iTE72..EUR;KE70,TE71..(CP,LB)..LHD..(GEN,SAA)198110-198305

RH

main85190-12540iKE70,TE71..(CP,LB)..LHD..EUG198109-198110

RH

main85190-12541iKE70,TE71..(CP,LB)..LHD..EUG198110-198305

RH

main85190-12550iKE70,TE7#..(CP,LB)..RHD198110-198406

RH

main85210-12010iTE7#..SE..SA197908-198204

LH

main85210-12020iKE70,TE7#..(CP,LB)..LHD197908-198108

RH

main85210-12030iKE70,TE7#..(DX,GL,STD)..SA198108-198707

LH

main85210-12040iCE70,KE70,TE71..(DV,SED,WG)..LHD198108-198508

LH

main85210-12050iKE70,TE7#..(CP,LB)..RHD198108-198110

LH

sub85210-12070

main85210-12060iKE70,TE7#..(CP,LB)..LHD198108-198110

LH

sub85210-12061

main85210-12061iKE70,TE7#..(CP,LB)..LHD198110-198305

LH

main85210-12070iKE70,TE7#..(CP,LB)..RHD198110-198406

LH

85192COVER, WINDSHIELD WIPER ARM

main85192-12030iAE71,CE70,KE70,TE7#..(DV,SED,WG)..RHD197908-198707

main85192-12040iKE70,TE7#..LHD197908-198707

main85192-12050iTE7#..LB198108-198406

85220BLADE ASSY, WINDSHIELD WIPER

main85220-12301iKE70,TE7#..(CP,LB)..RHD..(ARL,GEN)197908-198004

sub85220-12302

main85220-12302iTE7#..SE..SA198004-198204

main85220-12330iKE70,TE71..LHD..GEN197908-198108

sub85220-20130

main85220-12350iTE71..RHD..EUG197908-198004

main85220-12360iKE70,TE7#..(CP,LB)..LHD..EUR197908-198004

sub85220-14290

main85220-12370iKE70,TE71..(DV,SED,WG)..RHD..GEN197908-198001

sub85220-14280

main85220-12380iKE70..(DV,SED,WG)..LHD..EUR197908-198108

sub85220-30190

main85220-12430iKE70,TE71..(CP,LB)..LHD..EUG198109-198305

RH

sub85220-16270

main85220-12540iKE70,TE71..SA;TE72..(4FC,5F)..(EUR,SA)198210-198305

RH

sub85220-30240

main85220-12550iKE70,TE72..2D..ARL198210-198305

LH

sub85220-16130

main85220-14280iKE70..RHD..EUG197908-198305

main85220-14310iKE70,TE71..RHD..(EUR,GEN)198108-198210

RH

main85220-14320iCE70,KE70,TE71..(DV,SED,WG)..LHD..EUG198108-198305

RH

sub85220-16270

main85220-14360iKE70,TE72..2D..ARL198108-198210

LH

main85220-14370iTE72..SDN;CE70,KE70,TE71..LHD198108-198305

LH

sub85220-16150

main85220-16180iAE71,KE70,TE7#..(DV,SED,WG)..RHD198305-198308

RH

sub85220-16350

main85220-16190iAE71,KE70,TE7#..(DV,SED,WG)..RHD198305-198308

LH

sub85220-16320

main85220-16200iTE7#..LB198305-198406

RH

sub85220-16350

main85220-16210iTE7#..LB198305-198406

LH

main85220-16270iAE71,CE70,KE70..LHD198305-198707

LH

sub85220-16640

main85220-16290iCE70,KE70..LHD198305-198308

RH

sub85220-16640

main85220-16320iAE71,CE70,KE70,TE7#..(DV,SED,WG)..RHD198308-198707

LH

sub85220-16321

main85220-16340iAE71,CE70,KE70..LHD198308-198707

RH

sub85220-16640

main85220-16350iAE71,CE70,KE70,TE7#..(DV,SED,WG)..RHD198308-198707

RH

85221BLADE, WINDSHIELD WIPER

main85221-12080iTE71..RHD..EUG197908-198108

sub85221-20120

main85221-12090iKE70,TE7#..(CP,LB)..RHD..(ARL,GEN)197908-198004

L=425

sub85221-14H90

main85221-12120iCE70,KE70,TE7#..LHD198108-198305

sub85214-24H90

main85221-12190iKE70,TE71..SA;TE72..(4FC,5F)..(EUR,SA)198210-198305

sub85223-12690

main85221-14140iKE70,TE71..(DV,SED,WG)..RHD..GEN197908-198001

sub85221-14170

main85221-14170iKE70,TE7#..(DV,SED,WG)..RHD198001-198305

sub85221-14H90

main85221-14180iKE70,TE7#..(CP,LB)..RHD198004-198108

L=438

main85221-14180iTE7#..SE..SA198108-198204

main85221-20080iKE70,TE71..LHD..GEN197908-198108

sub85221-14H90

main85221-30080iKE70,TE72..2D..ARL198108-198210

sub85223-12690

main85221-30100iTE7#..LB198305-198707

sub85221-40040

main85221-30120iAE71,CE70,KE70..RHD198308-198707

sub85221-40040

9009900913

main90099-00913

9009900955

main90099-00955

9010906004

main90109-06004

9010906010

main90109-06010

9010906063

main90109-06063

9010906100

main90109-06100

9011906151

main90119-06151

9165140612

main91651-40612

16 parts on this diagram · 1 diagram in section
