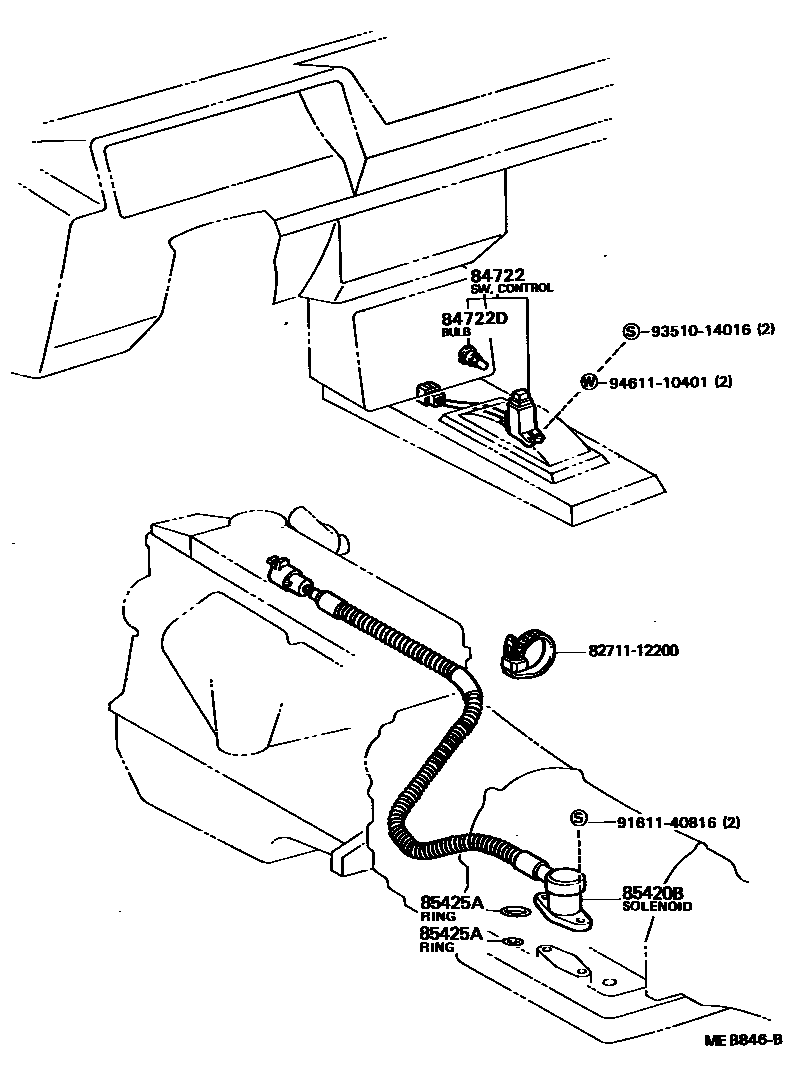

OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

84722SWITCH, TRANSMISSION CONTROL

main84722-14060iTE72..ATM198204-198401

84722DBULB, TRANSMISSION CONTROL SWITCH

main90981-11024iTE72..ATM198204-198401

12V 1.4W,12V 1.4W

85420BSOLENOID ASSY, TRANSMISSION

main85420-22060iTE72..ATM198204-198401

85425ARING, O (FOR OVERDRIVE SOLENOID)

main90301-11001iTE72..ATM198204-198401

ID=11

main90301-23001iTE72..ATM198204-198401

ID=23.5

8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12200

9161140816

main91611-40816

9351014016

main93510-14016

9461110401

main94611-10401

8 parts on this diagram · 1 diagram in section
