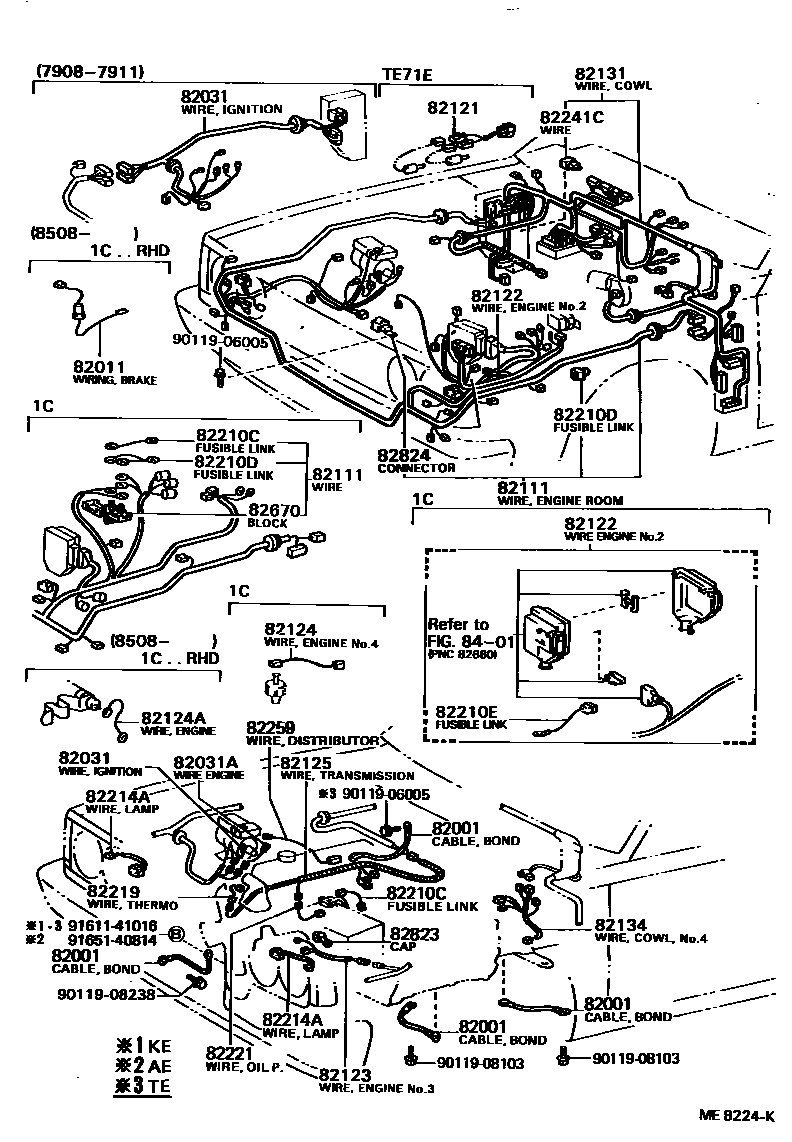

WIRING & CLAMP

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1

82001CABLE, BOND, NO.1

main90980-07058iKE70..RHD..EUG197908-198707

L=370,ENGINE-DASH

main90980-07062iTE71..RHD..EUG198108-198502

L=260,ENGINE-DASH

main90980-07062iTE72..2D;TE71..LHD..SR;TE71..RHD..(SE,SR)..(GEN,SA);TE71..(DX,GT,SE,STD,XE)..(EUR,GEN)197908-198108

main90980-07118iAE71,KE70..2D..ARL197908-198508

L=220,RR SUPPORT MEMBER-BODY

main90980-07118iAE71198508-198707

L=220,RR SUPPORT MEMBER

main90980-07119iTE72..2D;TE71..SE..SA;KE70,TE71..EUR,GEN197908-198508

L=320,STIFFENER PLATE-BODY

main90980-07150iKE70,TE7#197908-198707

L=340

main90980-07168iKE70,TE7#197908-198002

L=400

main90980-07177iTE72197908-198010

L=340

main90980-07233iAE71198507-198707

L=350

main90980-07265iAE71;KE70..LHD;KE70..RHD..4F;KE70..RHD..EUG198508-198707

L=300,STIFFENER PLATE-BODY

82011WIRING ASSY, BRAKE WARNING SYSTEM

main82011-20040iCE70..RHD198508-198707

82031WIRE SUB-ASSY, IGNITION COIL

main82031-12530iTE72..ARL197908-197911

main82031-12540iKE70,TE72..SDN197908-197911

main82031-12560iKE70,TE71..RHD197908-197911

82031AWIRE, IGNITION COIL

main82031-14060iTE71..RHD..2D..GEN198108-198305

HONG KONG SPEC

82111WIRE, ENGINE ROOM MAIN

main82111-12040iKE70..2D..ARL198108-198707

main82111-12050iTE72..ARL198108-198305

main82111-12070iKE70,TE71..LHD..(GEN,SAA)198108-198111

main82111-12071iKE70,TE71..LHD..(GEN,SAA)198111-198707

main82111-12080iKE70..LHD..EUR198108-198111

main82111-12081iKE70..LHD..EUR198110-198208

sub82111-12082

main82111-12082iKE70..LHD..EUR198208-198210

main82111-12083iTE71..GT198210-198305

main82111-12084iKE70..LHD..EUR198302-198412

W/NEIMAN KEY

main82111-12090iKE70..LB..5F..EUG;KE70..LHD..GL..EUG198108-198111

*FRG

main82111-12091iKE70..LHD..3FC..GL..EUG;KE70..(LB,SED,WG)..LHD..5F..EUG198110-198210

*FRG

main82111-12092iTE71..LB..GT198210-198305

*FRG

main82111-12093iKE70..LHD..3FC..GL..EUG;KE70..(LB,SED,WG)..LHD..5F..EUG198302-198412

W/NEIMAN KEY,FRG

main82111-12100iTE71..LB..LHD..(DX,XE)..EUG198108-198210

*FRG

main82111-12101iTE71..SED..EUG198205-198302

*FRG

main82111-12102iTE71..LB..LHD..(DX,XE)..EUG198302-198305

*FRG

main82111-12130iTE71..RHD..EUG198108-198210

main82111-12131iKE70..RHD..EUG198210-198302

main82111-12132iKE70..RHD..EUG198302-198601

main82111-12133iKE70..RHD..EUG198601-198707

main82111-12140iTE7#..LHD..(3FC,5F)..(DX,XE)..(EUG,SDN)198108-198210

main82111-12141iTE71..LHD..(DX,XE)..EUG198210-198302

main82111-12142iTE71..LHD..(DX,XE)..EUG198302-198305

main82111-12151iTE71..RHD..EUG198108-198210

main82111-12151iTE71..RHD..2D..GEN198108-198203

HONG KONG SPEC

main82111-12152iTE71..RHD..EUG198210-198302

main82111-12153iTE71..RHD..EUG198302-198305

main82111-12190iCE70..LHD198210-198302

main82111-12191iCE70..LHD198302-198601

main82111-12192iCE70..LHD198601-198707

main82111-12200iCE70..LHD198210-198302

*FRG

main82111-12201iCE70..LHD..DX198302-198601

*FRG

main82111-12202iCE70..LHD..DX198601-198707

*FRG

main82111-12440iAE71..4D198305-198410

main82111-12490iCE70..RHD198210-198302

main82111-12491iCE70..RHD198302-198508

main82111-12492iCE70..RHD198508-198601

main82111-12493iCE70..RHD198601-198707

main82111-12520iAE71..STD198308-198406

main82111-13030iKE70..LHD..EUR198305-198601

main82111-13031iKE70..LHD..EUR198601-198707

main82111-13040iKE70..LHD..DX..EUR198305-198601

*FRG

main82111-13041iKE70..LHD..DX198601-198707

*FRG

main82111-13050iKE70,TE71..SA198406-198707

main82111-13060iAE71..SA198501-198707

main82111-13070iKE70..RHD..EUG198610-198707

ENGLAND SPEC

main82111-1A150iAE71..GEN198508-198707

main82270-12420iKE70,TE72..SDN197908-197911

main82270-12421iKE70,TE72..SDN197911-198005

sub82270-12422

main82270-12421iKE70..(DV,SED,WG)..LHD..EUG198003-198005

W/HEADLAMP CLEANER

sub82270-12422

main82270-12422iKE70..(DV,SED,WG)..LHD..EUG198005-198102

W/HEADLAMP CLEANER

main82270-12422iKE70,TE72..SDN198005-198102

main82270-12423iKE70,TE7#..LHD..(DX,SR,STD,XE)..EUR198102-198108

W/HEADLAMP CLEANER

main82270-12500iKE70,TE71..RHD197908-197911

main82270-12501iKE70,TE7#..RHD..(EUR,GEN,SA)197911-198102

main82270-12502iKE70,TE7#..RHD..(EUR,GEN,SA)198102-198204

main82270-12560iKE70,TE71..LHD..GEN197908-198102

main82270-12561iKE70,TE71..LHD..GEN198102-198108

main82270-12570iKE70,TE71..LHD..EUG197908-198102

*FRG

main82270-12571iKE70,TE71..LHD..EUG198102-198108

*FRG

main82270-12580iKE70,TE71..LHD..EUG197908-198102

main82270-12581iKE70,TE71..LHD..EUG198102-198108

main82270-12610iTE72..ARL197908-198008

main82270-12611iTE72..ARL198008-198102

main82270-12612iTE72..ARL198102-198108

82121WIRE, ENGINE

main82291-12010iTE71..GL,GT,SE,SR,XE197908-198305

82122WIRE, ENGINE, NO.2

main82122-12010iKE70..MTM..EUR198108-198707

main82122-12020iKE70..2D..ARL198108-198707

main82122-12030iTE71..SA;TE72..(GL,SE,XE)..(EUR,SA)198108-198502

main82122-12050iAE71..STD198308-198707

main82122-12080iKE70..LB..5F..EUG;KE70..LHD..GL..EUG198108-198610

*FRG

sub82122-12081

main82122-12090iTE71..(LB,SED)..LHD..EUG198108-198305

*FRG

main82122-12100iCE70198210-198707

main82122-12130iCE70..LHD..DX198210-198707

*FRG

main82223-12390iTE7#197908-198102

main82223-12391iTE7#198102-198204

main82223-12410iKE70..2FC..EUG197908-197912

main82223-12411iKE70..2FC..EUG197912-198102

main82223-12412iKE70..2FC..EUG198102-198108

main82223-12450iKE70..MTM..EUR197908-197911

main82223-12451iKE70..GEN197911-197912

main82223-12452iKE70..MTM..(EUR,SA)197912-198102

main82223-12453iKE70..MTM..(EUR,SA)198102-198204

main82223-12460iKE70,TE71..LHD..MTM..EUG197908-197912

*FRG

main82223-12461iKE70,TE71..LHD..MTM..EUG197912-198102

*FRG

main82223-12462iKE70,TE71..LHD..MTM..EUG198102-198108

*FRG

main82223-12470iKE70..LHD..2FC..EUG197908-197912

*FRG

main82223-12471iKE70..LHD..2FC..EUG197912-198102

*FRG

main82223-12472iKE70..LHD..2FC..EUG198102-198108

*FRG

82123WIRE, ENGINE, NO.3

main82123-12010iKE70198109-198707

main82123-12020iTE71..EUR,GEN,SAA;TE72..(DX,SE)..(ARL,EUR)198108-198502

main82123-20010iCE70198210-198707

main82261-12321iTE7#197908-198204

82124WIRE, ENGINE, NO.4

main82124-12010iCE70198210-198707

82124AWIRE, ENGINE, NO.5

main82123-14090iCE70198210-198707

82125WIRE, TRANSMISSION

main82125-12010iKE70..MTM..4D..EUG;KE70..MTM..2D..(EUR,GEN);KE70..MTM..4D..(GEN,SAA)198208-198305

main82125-12030iKE70..MTM..(EUR,GEN,SAA)198108-198308

main82125-12031iKE70..DX..EUG;KE70..DX..(GEN,SAA);KE70..MTM..(GL,STD,XL)..(EUR,GEN,SAA)198305-198707

main82125-12040iKE70..3FC..(EUR,GEN)198108-198308

main82125-12070iTE72..ARL,EUR198108-198305

main82125-12120iTE71..GT198108-198305

main82125-12130iTE71..MTM198108-198412

main82125-12140iTE71..3FC198108-198310

main82125-12141iTE71..3FC198310-198401

main82125-12150iCE70198210-198508

main82125-12151iCE70198508-198707

main82125-12170iTE72..4FC198204-198310

main82125-12171iTE72..4FC198310-198401

main82125-12230iKE70..SDZ198208-198305

main82125-12231iKE70..SDZ198305-198707

main82125-12270iAE71..SA198501-198707

main82125-12320iAE71..GEN198508-198707

main82310-12250iTE72..MTM197908-198108

main82310-12270iTE71..MTM..SA197908-198204

main82310-12280iTE7#..3FC..SA197908-198204

main82310-12360iKE70..CP..5F;KE70..CP..LHD..4F;KE70..(DV,LB,SED,WG)..MTM197908-197911

main82310-12361iKE70..CP..5F;KE70..CP..LHD..4F;KE70..(DV,LB,SED,WG)..MTM197911-198204

main82310-12380iTE71..GT197908-198108

82131WIRE, COWL

main82131-12100iKE70..2D..ARL198108-198308

main82131-12101iAE71..STD198308-198406

main82131-12110iTE72..ARL198108-198305

main82131-12120iKE70,TE71..(DV,SED,WG)..RHD..(EUR,GEN)198108-198206

sub82131-12121

main82131-12121iKE70,TE71..(DV,SED,WG)..RHD..(EUR,GEN)198206-198707

main82131-12130iKE70,TE71..(CP,LB)..RHD..(EUR,GEN)198108-198206

sub82131-12131

main82131-12131iKE70,TE71..(CP,LB)..RHD198206-198406

main82131-12150iKE70,TE71..(DV,SED,WG)..LHD..GEN198108-198206

sub82131-12151

main82131-12151iKE70,TE71..(DV,SED,WG)..LHD..GEN198206-198707

main82131-12160iKE70,TE71..(CP,LB)..LHD..GEN198108-198206

sub82131-12161

main82131-12161iKE70,TE71..(CP,LB)..LHD..GEN198206-198305

main82131-12170iTE71..SED..EUG198108-198707

*FRG

main82131-12180iTE71..LB..LHD..EUG198108-198111

*FRG

main82131-12181iTE71..LB..LHD..EUG198110-198305

*FRG

main82131-12190iKE70..SED..LHD..EUR198108-198305

main82131-12200iKE70..(DV,WG)..LHD..EUR198108-198707

main82131-12210iKE70,TE7#..(CP,LB)..LHD..EUR198108-198111

main82131-12211iKE70,TE7#..(CP,LB)..LHD..(EUG,SDN)198111-198305

main82131-12260iKE70..SAA198108-198209

sub82131-12261

main82131-12261iKE70..SAA198209-198308

main82131-12270iTE71..SAA198108-198209

sub82131-12271

main82131-12271iTE71..SAA198209-198308

main82131-12280iKE70,TE7#..4D..SA198204-198707

main82131-12290iTE72..(SE,XE)..(EUR,SA)198204-198401

main82131-12340iKE70..SDZ198208-198707

main82131-12350iCE70..RHD198210-198508

main82131-12352iCE70..RHD198508-198707

main82131-12360iCE70..LHD198210-198305

main82131-12361iCE70..LHD198305-198707

main82131-12370iCE70..LHD198210-198305

*FRG

main82131-12371iCE70..LHD..DX198305-198707

*FRG

main82131-13060iKE70..RHD..EUG198305-198707

main82131-13070iAE71..SA198501-198707

main82131-1A460iAE71..GEN198508-198707

main82230-12680iKE70,TE71..(CP,LB)..LHD..EUG198008-198011

sub82230-12681

main82230-12681iTE71..LB..LHD..4F198012-198108

SAUDI ARABIA SPEC

main82230-12681iKE70,TE71..(CP,LB)..LHD..EUG198011-198108

main82230-12800iKE70,TE71..(CP,LB)..RHD..DX197908-198003

sub82230-1A060

main82230-12810iTE72..ARL197908-198008

main82230-12812iTE72..ARL198008-198108

main82230-12820iKE70,TE71..(DV,SED,WG)..LHD..GEN197908-198008

main82230-12821iKE70,TE71..(DV,SED,WG)..LHD..GEN198008-198108

main82230-12830iKE70,TE71..(CP,LB)..LHD..GEN197908-198008

main82230-12831iKE70,TE71..(CP,LB)..LHD..GEN198008-198108

main82230-12840iKE70..WG..LHD..4F..4D..EUG197908-198008

*FRG

main82230-12841iKE70..(SED,WG)..LHD..EUG198008-198108

*FRG

main82230-12850iKE70..LB..4F..EUG197908-198008

*FRG

main82230-12851iKE70,TE71..LB..LHD..EUG198008-198108

*FRG

main82230-12860iKE70..SED..LHD..EUG197908-198008

main82230-12861iKE70..SED..LHD..EUG198008-198011

sub82230-12862

main82230-12862iKE70..SED..LHD..4F..4D..GEN198012-198108

SAUDI ARABIA

main82230-12862iKE70..SED..LHD..EUG198011-198108

main82230-12870iKE70..(DV,WG)..LHD..EUG197908-198008

main82230-12871iKE70..(DV,WG)..LHD..EUG198008-198108

main82230-12880iKE70,TE71..(CP,LB)..LHD..EUG197908-198005

sub82230-12882

main82230-12882iKE70,TE71..(CP,LB)..LHD..EUG198005-198008

main82230-12890iKE70..(DV,SED,WG)..LHD..EUR198003-198008

W/HEADLAMP CLEANER

main82230-12890iKE70..SDN197908-198003

main82230-12891iKE70..(DV,SED,WG)..LHD..EUR198008-198108

W/HEADLAMP CLEANER

main82230-1A010iTE72..SDN197908-198008

main82230-1A050iKE70,TE7#..(DV,SED,WG)..RHD197908-198008

main82230-1A051iKE70,TE7#..SED..SA198008-198204

main82230-1A060iTE71..RHD..2D197908-198008

main82230-1A061iTE71..RHD..2D198008-198204

82134WIRE, COWL, NO.4

main82134-12020iAE71,KE70..2D..ARL198108-198707

main82134-12030iAE71,CE70,KE70,TE7#..LHD198108-198707

main82213-12010iKE70,TE7#..RHD197908-198008

main82213-12011iKE70,TE7#..SA198008-198305

main82213-12020iKE70,TE7#..LHD197908-198008

main82213-12021iKE70,TE7#..LHD198008-198108

82210CFUSIBLE LINK

main90982-08021iKE70,TE7#198108-198508

main90982-08052iKE70,TE7#197908-198108

main90982-08121iKE70..RHD..EUG198610-198707

ENGLAND SPEC

main90982-08171iCE70198210-198707

main90982-08244iAE71,KE70198508-198707

82210DFUSIBLE LINK

main90982-08121iKE70,TE71..SA;TE72..(GL,SE,XE)..(EUR,SA)197908-198707

main90982-08172iCE70198210-198508

main90982-08243iCE70198508-198707

82210EFUSIBLE LINK

main90982-08192iCE70198210-198707

82214AWIRE, LAMP

main82214-12150iKE70,TE71..(DV,SED,WG)..GEN197908-198008

82219WIRE, THERMO SENSOR

main82219-12040iKE70..MTM198108-198308

82221WIRE, OIL PRESSURE SWITCH

main82221-12330iKE70..2FC197908-198108

main82221-16010iAE71198501-198707

82241CWIRE, RELAY

main82241-12090iKE70,TE7#..SA198102-198410

82259WIRE, DISTRIBUTOR

main82259-12050iKE70197908-198707

main82259-12060iTE7#197908-198412

main82259-12090iAE71..GEN198508-198707

main82259-13020iAE71..SA198501-198707

82670BLOCK ASSY, JUNCTION, NO.1

main82670-12010iCE70198210-198508

main82670-12011iCE70198508-198707

82823CAP, TERMINAL, NO.1

main82823-12020iAE71,TE7#197908-198707

82824CONNECTOR, WIRING HARNESS

main82824-12100iAE71,CE70,KE70,TE71198407-198707

8401

9011906005

main90119-06005

9011908103

main90119-08103

9011908238

main90119-08238

9161141016

main91611-41016

9165140814

main91651-40814

30 parts on this diagram · 9 diagrams in section
