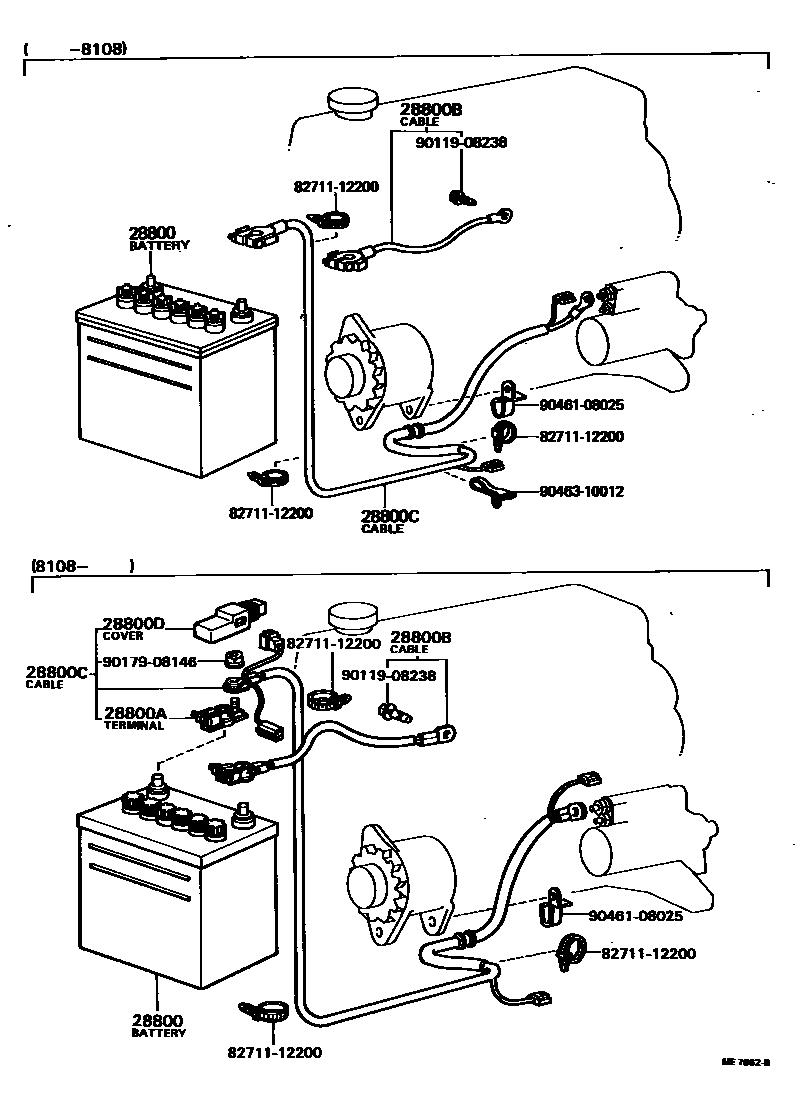

BATTERY & BATTERY CABLE

0001 1 0002 1

28800BATTERY

main28800-12060i1C..CE70..LHD198210-198508

50D20R,50D20R,COLD SPEC

sub28800-14040

main28800-12060i1C..CE70..LHD198508-198707

50D20R,50D20R

sub28800-14040

main28800-12080i1C..CE70..LHD198210-198707

50B24R(NT80-S6)

main28800-12090i1C..CE70..LHD198210-198707

50B24L(NT80-S6L)

main28800-13010i4K..KE70..GEN197908-198707

28B19L(NS40SL)

main28800-26040i2T#..TE71..GEN,SAA197908-198707

34B19L,34B19L(NS40ZAL)

sub28800-26050

main28800-26090i2T#..TE71..(LB,SED)..LHD..EUG197908-198508

46B24L,46B24L(S)(NS60L(S)),*FRG

main28800-26090i4K..KE70198508-198707

46B24L,46B24L(S)(NS60L(S))

main28800-30131i4K,2T#,3T#..KE70,TE7#..EUR,SA197908-198204

55D26R,55D26L(N50ZL)

sub28800-73010

main28800-31031i4K,2T#..KE70,TE71..EUR,GEN,SAA197908-198707

32C24L,32C24L(N40L)

sub28800-31021

main28800-54020i1C..CE70198305-198707

80D26L,80D26L(NX110-5L)

sub28800-67102

main28800-64010i1C..CE70198108-198707

55D23L,55D23L

sub28800-42041

main28800-64030i1C..CE70..DV,SED;1C..CE70..WG..LHD198303-198508

55D20L,50D20L,COLD SPEC

sub28800-70070

main28800-64030i1C..CE70198210-198707

55D20L,50D20L

sub28800-70070

main28800-72010i4AC,4KC..AE71,KE70..ARL198305-198410

34B19L(S),34B19L(NS40ZAL)

sub28800-72020

28800ATERMINAL, BATTERY POSITIVE

main90982-05005i1C..CE70198210-198707

sub90982-05030

main90982-05019i4A,4K,2T#..AE71,KE70,TE71..GEN,SAA198108-198707

sub90982-05027

main90982-05023i3TC..TE72..SDN;4K#,2T#..KE70,TE71..EUR198108-198707

32C24L(N40L)

sub90982-05029

main90982-05023i4K,2T,3T..KE70,TE7#..SA198108-198707

sub90982-05029

28800BCABLE, BATTERY TO GROUND

main82046-12120i2TG..TE71..GEN197908-198108

34B19L(NS40ZAL)

sub90982-02084

main82046-12130i4K,2T,2TB,3T..KE70,TE7#..SA197908-198204

N40L,N50ZL,NS60L(S)

main82046-12130i4KC..KE70..4D..ARL198108-198305

main82046-12150i4K,2T,2TB..KE70,TE71..GEN197908-198108

28B19L(NS40SL),34B19L(NS40ZAL)

sub82046-12120

main82046-12160i4K..KE70..(DV,SED,WG)..LHD..EUG197908-198108

32C24L(N40L),55D26L(N50ZL)

sub90982-02145

main82046-12160i4K,2T,2TB..KE70,TE71..LHD..EUG198008-198108

W/HEADLAMP CLEANER

sub90982-02145

main82113-12010i4K,2T#..KE70,TE71..GEN,SAA198108-198707

main82113-12020i4K..KE70..4F..GEN198108-198707

W/PRE AIR CLEANER

main82113-12030i3TC..TE72..SDN;4K#,2T#..KE70,TE71..EUR198108-198707

32C24L(N40L)

main82113-12030i3TC..TE72..SDN;4K#,2T#..KE70,TE71..EUR198108-198707

N40L OR N40L & PRE AIR CLEANER

main82113-12030i4K,2T,3T..KE70,TE7#..SA198204-198707

main82113-12050i1C..CE70198210-198707

LH

main82113-12070i1C..CE70..LHD198210-198707

RH

main82113-12100i4A..AE71..GEN198508-198707

34B19L(NS40ZAL)

main82113-12110i4A..AE71..GEN198508-198707

32C24L(N40L)

main82113-13010i4A..AE71..SA198501-198707

main82113-13010i4AC..AE71..STD198308-198406

34B19L(NS40ZAL)

28800CCABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH)

main82021-12080i1C..CE70..LHD198210-198707

RH

main82021-12170i4K..KE70..GEN197908-198108

28B19L(NS40SL)

main82021-12180i4KC..KE70..4D..ARL198108-198305

32C24L(N40L)

main82021-12180i4K..KE70197908-198204

32C24L(N40L),55D26L(N50ZL)

main82021-12220i2T#..TE71..GEN197908-198108

34B19L(NS40ZAL)

main82021-12230i2T#,3T..TE7#197908-198204

N40L,N50ZL,NS60L(S)

main82021-12230i2T#..TE71..EUR,GEN198008-198108

NS40L

main82021-12250i2T#,3TC..TE7#..LHD..EUR198008-198108

N50ZL,NS60L(S)

main82021-12250i3TC..TE72197908-198008

main82021-12260i4K#..KE70..LHD..EUR197908-198108

COLD SPEC

main82112-12010i4K..KE70..GEN,SAA198108-198707

main82112-12070i1C..CE70198210-198707

LH

main82112-12090i2T#..TE71..GEN,SAA198108-198707

32C24L(N40L)

main82112-12090i4KC..KE70..2D..ARL198108-198707

main82112-12100i4K#..KE70..LHD..EUR198108-198707

COLD SPEC

main82112-12110i3TC..TE72..SE,XE;2T#..TE71..EUR,GEN198108-198305

32C24L(N40L)

main82112-12110i2T,3T..TE7#..SA198204-198404

main82112-12120i2T#,3TC..TE7#..LHD..(EUG,SDN)198108-198305

COLD SPEC

main82112-12170i4A..AE71..GEN198508-198707

34B19L(NS40ZAL)

main82112-13010i4A..AE71..GEN198508-198707

32C24L(N40L)

main82112-13010i4A..AE71..SA198308-198707

main82122-12050i2T#..TE71..GEN,SAA198108-198406

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-12150i1C,4K#,2T#,3T#..CE70,KE70,TE7#198108-198707

LH

main82821-12150i4A..AE71198501-198707

main82821-22110i1C..CE70..LHD198210-198707

RH

8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12200

9011908238

main90119-08238

9017908146

main90179-08146

9046108025

main90461-08025

9046310012

main90463-10012

10 parts on this diagram · 2 diagrams in section
