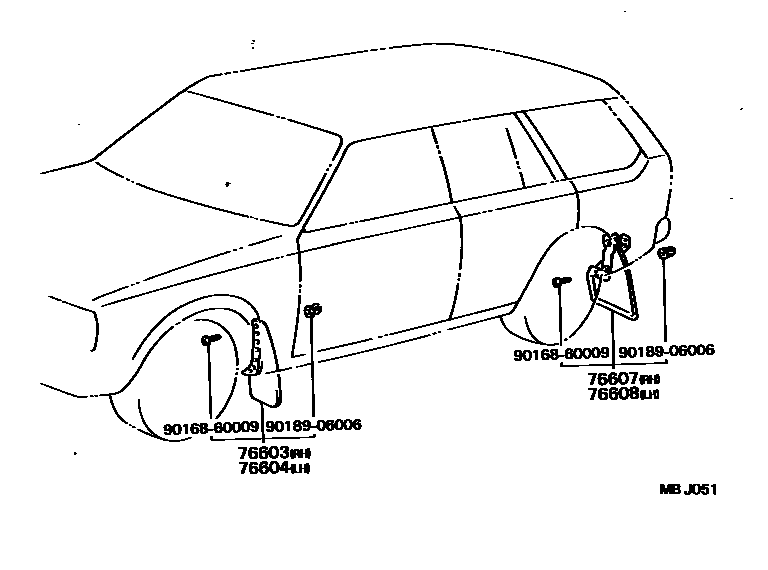

MUDGUARD & SPOILER

76603MUDGUARD SUB-ASSY, FRONT FENDER, RH

main76621-19045iKE70..GL..ARL198108-198410

main76621-19055iTE71..(GT,SE,SR,XE)..GEN197908-198305

76604MUDGUARD SUB-ASSY, FRONT FENDER, LH

main76622-19045iKE70..GL..ARL198108-198410

main76622-19055iTE71..(GT,SE,SR,XE)..GEN197908-198305

76607MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH

main76607-19065iAE71,KE70..SED..(DX,GL)..ARL198108-198410

sub76607-19066

main76607-19095iTE71..LHD..(GT,SR,XE)..EUG197908-198108

sub76607-19096

main76607-19096iTE71..LHD..(GT,XE)..EUG198108-198305

76608MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH

main76608-19065iAE71,KE70..SED..(DX,GL)..ARL198108-198410

sub76608-19066

main76608-19095iTE71..LHD..(GT,SR,XE)..EUG197908-198108

sub76608-19096

main76608-19096iTE71..(GT,SR,XE)..GEN198108-198305

9016860009

main90168-60009

9018906006

main90189-06006

6 parts on this diagram · 1 diagram in section
