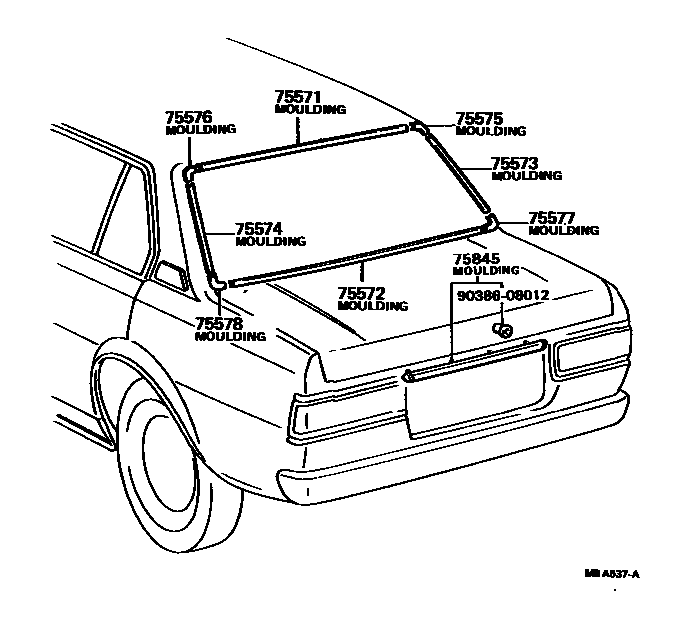

REAR MOULDING

0001 1 0002 1 0003 1

75571MOULDING, BACK WINDOW, OUTSIDE UPPER

main75571-12190iAE71,CE70,KE70,TE71..SED..(DX,GL)..(ARL,EUR,SAA)197908-198502

main75571-12220iKE70,TE71..CP..DX197908-198305

main75571-12230iKE70,TE7#..LB197908-198406

75572MOULDING, BACK WINDOW, LOWER

main75575-12130iAE71,CE70,KE70,TE71..SED..(DX,GL)..(ARL,EUR,SAA)197908-198502

main75575-12160iKE70,TE71..CP..DX197908-198305

main75575-12170iKE70,TE7#..LB..(DX,SE,XE)197908-198406

75573MOULDING, BACK WINDOW SIDE, RH

main75573-12170iKE70,TE7#..SED..(GEN,SA)197908-198502

sub75573-12210

main75573-12200iKE70,TE71..CP..DX197908-198305

main75573-12210iKE70,TE7#..LB..(DX,SE,XE)197908-198406

75574MOULDING, BACK WINDOW SIDE, LH

main75573-12170iAE71,CE70,KE70,TE71..SED..(DX,GL)..(ARL,EUR,SAA)197908-198502

sub75573-12210

main75573-12200iKE70,TE71..CP..DX197908-198305

main75573-12210iKE70,TE7#..LB197908-198406

75575MOULDING, BACK WINDOW CORNER, UPPER RH

main75581-12090iKE70,TE7#..SED..(GEN,SA)197908-198502

main75581-12120iKE70,TE71..CP..DX197908-198305

main75581-12130iKE70,TE7#..LB..(DX,SE,XE)197908-198406

75576MOULDING, BACK WINDOW CORNER, UPPER LH

main75581-12090iAE71,CE70,KE70,TE71..SED..(DX,GL)..(ARL,EUR,SAA)197908-198502

main75581-12120iKE70,TE71..CP..DX197908-198305

main75581-12130iKE70,TE7#..LB197908-198406

75577MOULDING, BACK WINDOW CORNER, LOWER RH

main75583-12070iAE71,CE70,KE70,TE71..SED..(DX,GL)..(ARL,EUR,SAA)197908-198502

main75583-12100iKE70,TE71..CP..DX197908-198305

main75583-12110iKE70,TE71..LB..(DX,XE);TE72..(DX,SE)..(ARL,EUR)197908-198406

75578MOULDING, BACK WINDOW CORNER, LOWER LH

main75583-12070iAE71,CE70,KE70,TE71..SED..(DX,GL)..(ARL,EUR,SAA)197908-198502

main75583-12100iKE70,TE71..CP..DX197908-198305

main75583-12110iKE70,TE7#..LB197908-198406

75845MOULDING, BODY LOWER BACK PANEL, CENTER

main75840-19075iTE71..CP..5F197908-198108

main75840-19076iTE71..CP..5F198108-198305

main75840-19085iAE71,KE70..SED..ARL198108-198410

9038608012

main90386-08012

10 parts on this diagram · 3 diagrams in section
