FRONT MOULDING

75531MOULDING, WINDSHIELD, OUTER UPPER

main75531-12180iAE71,KE70,TE7#..SED197908-198707

RH

main75531-12200iKE70,TE7#..(CP,LB)..(DX,SE,XE)197908-198406

RH

main75531-12220iTE71..SR..EUG;TE71..LHD..(GT,SR,XE);TE7#..RHD..(SE,SR,XE)..(GEN,SA)197908-198406

main75531-13020iAE71,KE70..(DV,WG)..ARL198309-198410

RH

main75532-12110iAE71,CE70,KE70,TE71..(DV,WG)..(EUR,GEN,SA)197908-198707

LH

main75532-12120iTE72..(DX,SE)..(ARL,EUR);KE70,TE71..(CP,LB)..(DX,XE)197908-198406

LH

main75532-13020iAE71,KE70..(DV,WG)..ARL198309-198410

LH

75531ACLIP, WINDSHIELD MOULDING SET, NO.1

main75545-12030iKE70,TE7#197908-198105

TYPE A

sub75545-12031

main75545-12031iAE71,CE70,KE70,TE7#198105-198707

TYPE A

main75545-30040iAE71,CE70,KE70,TE7#197908-198707

TYPE B

75532MOULDING, WINDSHIELD, LOWER

main75504-12010iKE70,TE71..DV,SED,WG197908-198005

main75504-12011iKE70,TE7#..DV,SED,WG198005-198305

main75504-12012iAE71,CE70,KE70,TE7#..DV,SED,WG198305-198707

main75504-12020iTE71..LB..GT;KE70,TE7#..(CP,LB)..(DX,SE,XE)197908-198406

main75504-12030iTE71..SR..EUG;TE71..LHD..(GT,SR,XE);TE7#..RHD..(SE,SR,XE)..(GEN,SA)197908-198406

main75504-13010iAE71,KE70..(DV,WG)..ARL198309-198410

75533MOULDING, WINDSHIELD, OUTSIDE RH

main75533-12190iKE70,TE71..DV,SED,WG197908-198005

main75533-12191iKE70,TE7#..DV,SED,WG198005-198305

main75533-12192iAE71,KE70,TE7#..SED198305-198707

main75533-12210iTE71..LB..GT;KE70,TE7#..(CP,LB)..(DX,SE,XE)197908-198406

main75533-12230iTE71..SR..EUG;TE71..LHD..(GT,SR,XE);TE7#..RHD..(SE,SR,XE)..(GEN,SA)197908-198406

main75533-13010iAE71,KE70..(DV,WG)..ARL198309-198410

75534MOULDING, WINDSHIELD, OUTSIDE LH

main75534-12120iKE70,TE71..DV,SED,WG197908-198005

main75534-12121iKE70,TE7#..DV,SED,WG198005-198305

main75534-12122iAE71,CE70,KE70,TE7#..DV,SED,WG198305-198707

main75534-12140iTE72..(DX,SE)..(ARL,EUR);KE70,TE71..(CP,LB)..(DX,XE)197908-198406

main75534-12160iTE71..SR..EUG;TE71..LHD..(GT,SR,XE);TE7#..RHD..(SE,SR,XE)..(GEN,SA)197908-198406

main75534-13010iAE71,KE70..(DV,WG)..ARL198309-198410

75535MOULDING, WINDSHIELD CORNER, UPPER RH

main75541-12110iTE71..CP..5F197908-198406

75536MOULDING, WINDSHIELD CORNER, UPPER LH

main75542-12080iTE71..CP..5F197908-198406

75537MOULDING, WINDSHIELD CORNER, LOWER RH

main75543-12060iTE71..CP..5F197908-198406

75538MOULDING, WINDSHIELD CORNER, LOWER LH

main75544-12040iTE71..GT,SR197908-198406

75541MOULDING, HOOD, FRONT

main75770-19125iTE71..LB..GT;KE70,TE7#..(CP,LB)..(DX,SE,XE)197908-198204

main75770-19135iTE71..CP..5F197908-198108

main75770-19225iKE70..SAA198108-198309

75546CLIP, WINDSHIELD OUTSIDE MOULDING

main75546-12010iKE70,TE71..DV,SED,WG197908-198005

TYPE A

main75546-12011iAE71,CE70,KE70,TE7#..DV,SED,WG198005-198707

TYPE A

main75546-12050iKE70,TE7#..CP,LB197908-198406

TYPE A

main75547-12010iKE70,TE71..DV,SED,WG197908-198005

TYPE B

main75547-12011iAE71,CE70,KE70,TE7#..DV,SED,WG198005-198707

TYPE B

main75547-12020iKE70,TE7#..CP,LB197908-198406

TYPE B

9017904010

main90179-04010

9026902001

main90269-02001

9351014010

main93510-14010

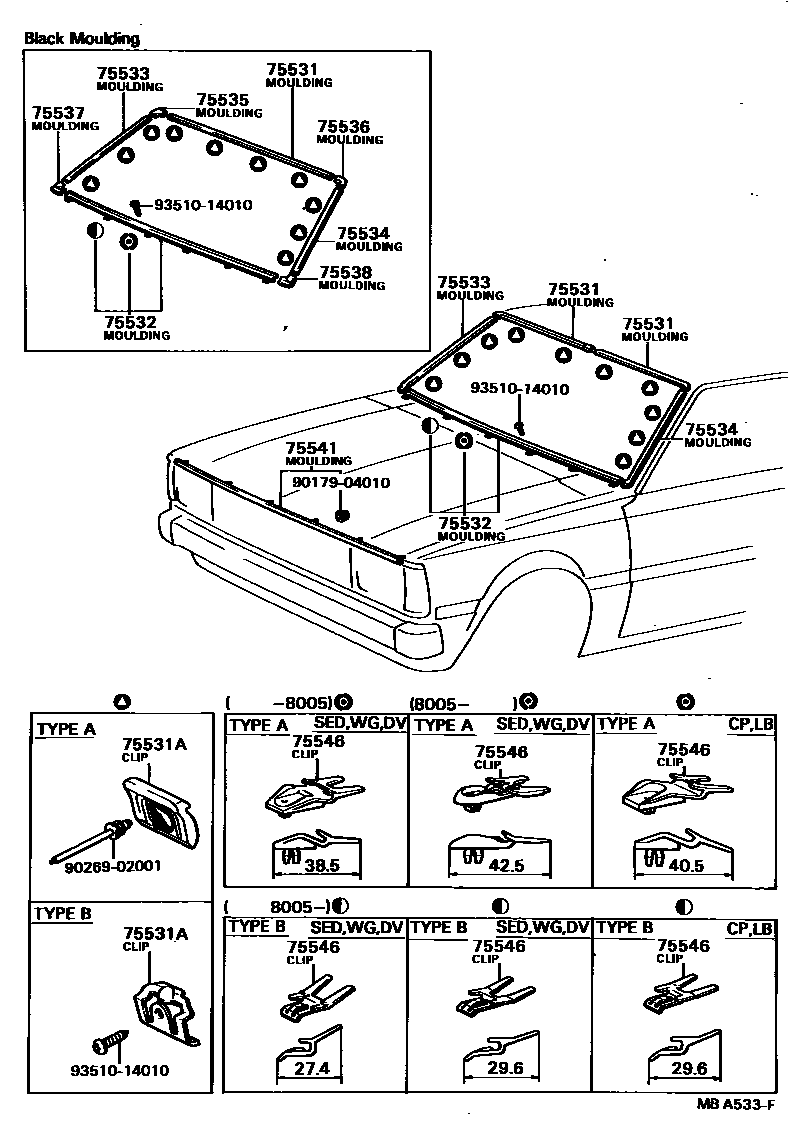

14 parts on this diagram · 1 diagram in section
